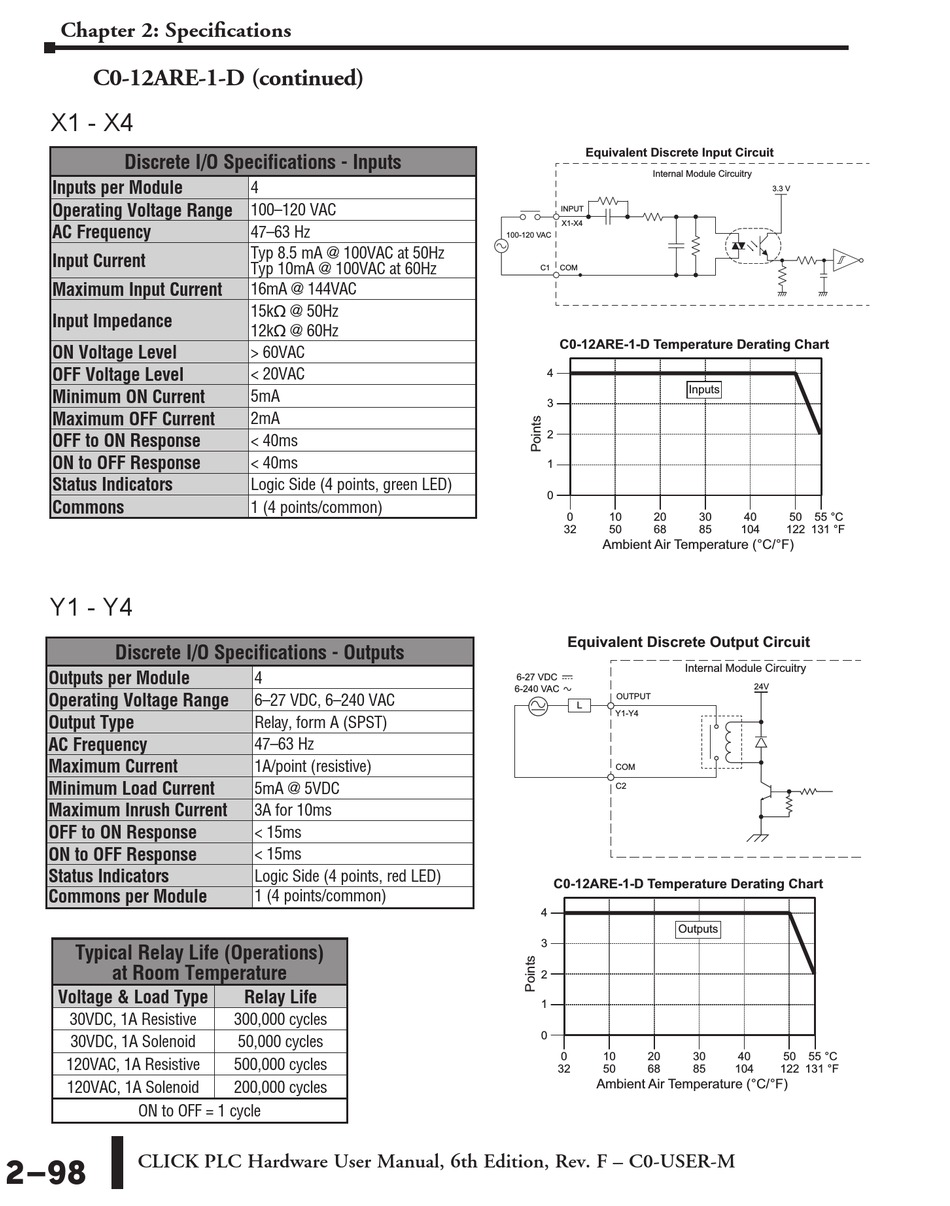

Chapter 2: Specifications
C0-12ARE-1-D (continued)
X1 - X4
Discrete I/O Specifications - Inputs
Inputs per Module
Operating Voltage Range
AC Frequency
Input Current
Maximum Input Current
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Y1 - Y4
Discrete I/O Specifications - Outputs
Outputs per Module
Operating Voltage Range
Output Type
AC Frequency
Maximum Current
Minimum Load Current
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons per Module
Typical Relay Life (Operations)
at Room Temperature
Voltage & Load Type
30VDC, 1A Resistive
30VDC, 1A Solenoid
120VAC, 1A Resistive
120VAC, 1A Solenoid
ON to OFF = 1 cycle
2–98
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
4
100–120 VAC
47–63 Hz
Typ 8.5 mA @ 100VAC at 50Hz
Typ 10mA @ 100VAC at 60Hz
16mA @ 144VAC
15kq @ 50Hz
12kq @ 60Hz
> 60VAC
< 20VAC
5mA
2mA
< 40ms
< 40ms
Logic Side (4 points, green LED)
1 (4 points/common)
4
6–27 VDC, 6–240 VAC
Relay, form A (SPST)
47–63 Hz
1A/point (resistive)
5mA @ 5VDC
3A for 10ms
< 15ms
< 15ms
Logic Side (4 points, red LED)
1 (4 points/common)
Relay Life
300,000 cycles
50,000 cycles
500,000 cycles
200,000 cycles
Equivalent Discrete Input Circuit
Internal Module Circuitry
INPUT
X1-X4
100-120 VAC
C1 COM
C0-12ARE-1-D Temperature Derating Chart
4
3
2
1
0
0 10 20
32 50 68
Ambient Air Temperature (°C/°F)
Equivalent Discrete Output Circuit
Internal Module Circuitry
6-27 VDC
6-240 VAC
OUTPUT
L
Y1-Y4
COM
C2
C0-12ARE-1-D Temperature Derating Chart
4
Outputs
3
2
1
0
0 10 20
32 50 68
Ambient Air Temperature (°C/°F)
3.3 V
Inputs
30 40 50 55 °C
85 104 122 131 °F
24V
30 40 50 55 °C
85 104 122 131 °F
