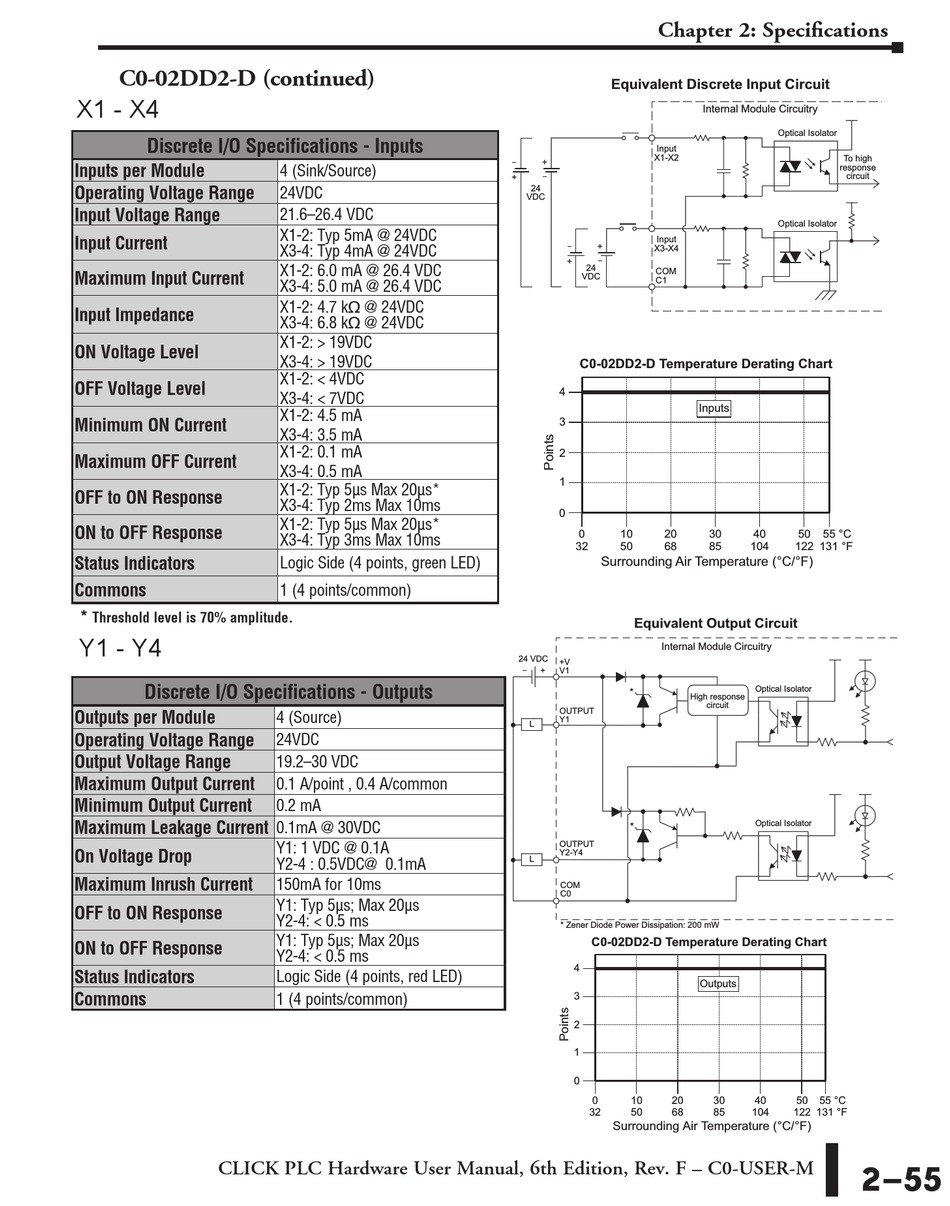

C0-02DD2-D (continued)
X1 - X4
Discrete I/O Specifications - Inputs
Inputs per Module
Operating Voltage Range
Input Voltage Range
Input Current
Maximum Input Current
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
*
Threshold level is 70% amplitude.
Y1 - Y4
Discrete I/O Specifications - Outputs
Outputs per Module
Operating Voltage Range
Output Voltage Range
Maximum Output Current
Minimum Output Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
4 (Sink/Source)
24VDC
21.6–26.4 VDC
X1-2: Typ 5mA @ 24VDC
X3-4: Typ 4mA @ 24VDC
X1-2: 6.0 mA @ 26.4 VDC
X3-4: 5.0 mA @ 26.4 VDC
X1-2: 4.7 kq @ 24VDC
X3-4: 6.8 kq @ 24VDC
X1-2: > 19VDC
X3-4: > 19VDC
X1-2: < 4VDC
X3-4: < 7VDC
X1-2: 4.5 mA
X3-4: 3.5 mA
X1-2: 0.1 mA
X3-4: 0.5 mA
X1-2: Typ 5μs Max 20μs*
X3-4: Typ 2ms Max 10ms
X1-2: Typ 5μs Max 20μs*
X3-4: Typ 3ms Max 10ms
Logic Side (4 points, green LED)
1 (4 points/common)
4 (Source)
24VDC
19.2–30 VDC
0.1 A/point , 0.4 A/common
0.2 mA
0.1mA @ 30VDC
Y1: 1 VDC @ 0.1A
Y2-4 : 0.5VDC@ 0.1mA
150mA for 10ms
Y1: Typ 5μs; Max 20μs
Y2-4: < 0.5 ms
Y1: Typ 5μs; Max 20μs
Y2-4: < 0.5 ms
Logic Side (4 points, red LED)
1 (4 points/common)
Chapter 2: Specifications
Equivalent Discrete Input Circuit
Input
X1-X2
+
+
24
VDC
Input
+
X3-X4
+
24
COM
VDC
C1
C0-02DD2-D Temperature Derating Chart
4
3
2
1
0
0
10
20
32
50
68
Surrounding Air Temperature (°C/°F)
Equivalent Output Circuit
Internal Module Circuitry
24 VDC
+V
+
V1
*
High response
OUTPUT
Y1
L
*
OUTPUT
Y2-Y4
L
COM
C0
* Zener Diode Power Dissipation: 200 mW
C0-02DD2-D Temperature Derating Chart
4
3
2
1
0
0
10
20
32
50
68
Surrounding Air Temperature (°C/°F)
Internal Module Circuitry
Optical Isolator
To high
response
circuit
Optical Isolator
Inputs
30
40
50
55 °C
85
104
122
131 °F
Optical Isolator
circuit
Optical Isolator
Outputs
30
40
50
55 °C
85
104
122
131 °F
2–55
