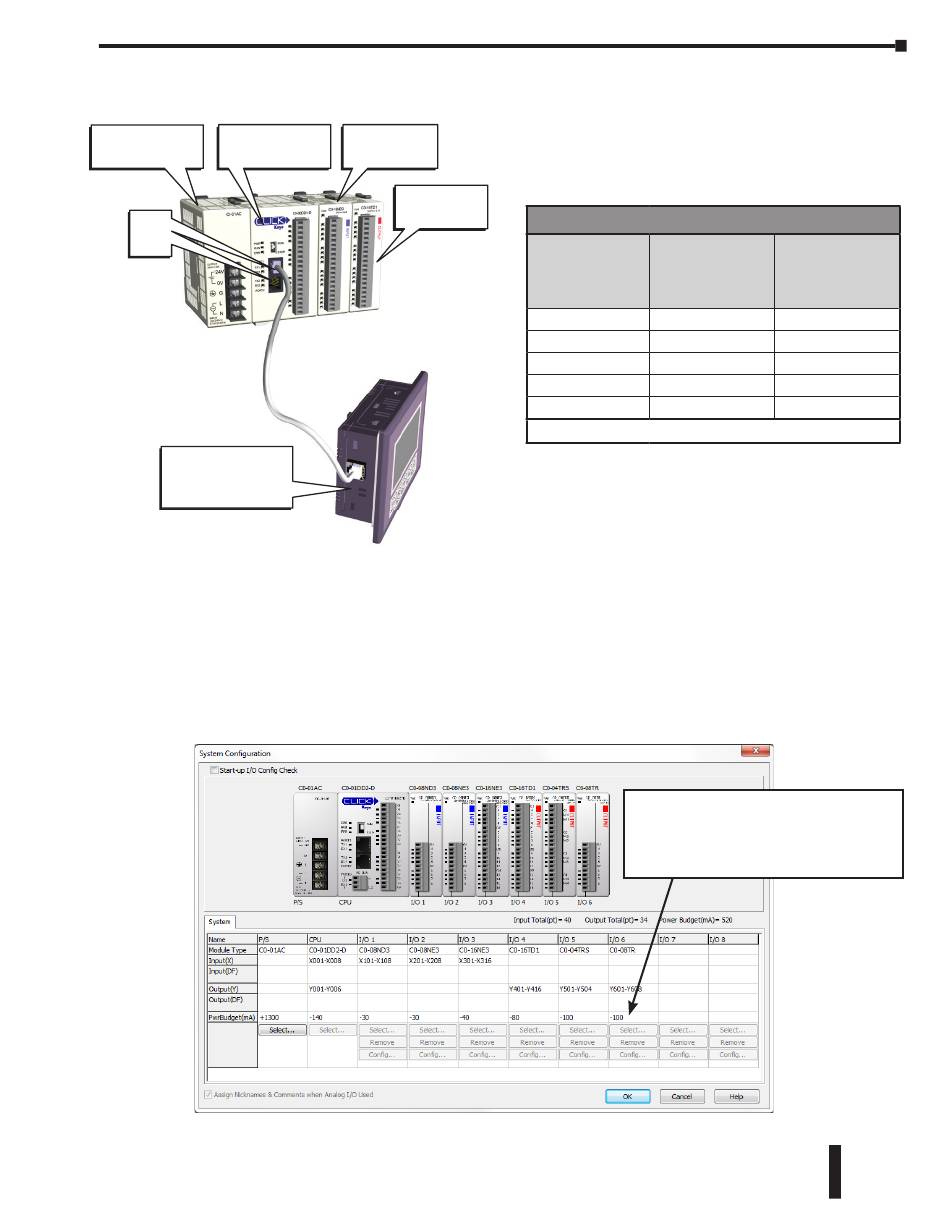

Power Budget Example
Power Supply
PLC Unit
(C0-01AC)
(C0-00DD1-D)
Port 1
or
Port 2
C-more
Micro-Graphic
Panel
Only monochrome models
can be powered from port 1 or 2.
Power Budgeting using the CLICK Programming Software
The following example shows the logic side current consumption as calculated in the System
Configuration Setup section of the CLICK Programming Software. Based on the amperage
rating of the power supply selected in the first column, your power budget is calculated by
subtracting each consecutive module's power consumption from the total available power
budget. If you exceed the maximum allowable power consumption, the power budget row
fills in red.
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
I/O Module
(C0-16ND3)
I/O Module
(C0-16TD1)
Chapter 2: Specifications
Add the current consumption for each
module in the system as shown in this
example.
Current Consumption (mA)
Power Budget
Part Number
24VDC
(logic side)
C0-00DD1-D
120
C0-16ND3
40
C0-16TD1
80
C-more Micro
90
Total:
330
* Plus calculated load of connected I/O devices.
Power budget row turns red if maximum
allowable power consumption is
exceeded for the power supply selected.
External
24VDC
(field side)
60
0
100
0
160 *
