Chapter 2: Specifications

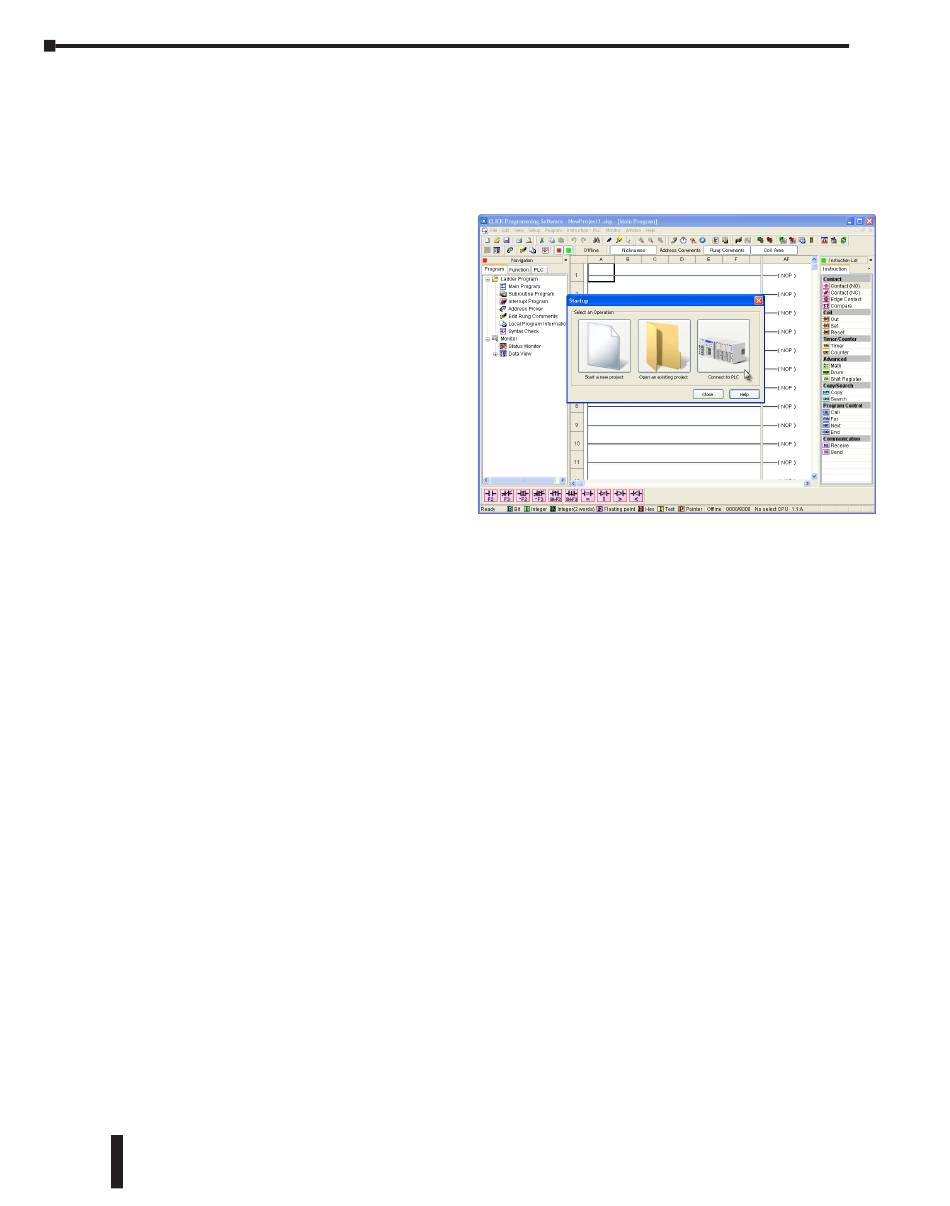

Programming Software

The CLICK PLC Programming Software, which can be downloaded free from the
Automationdirect.com web site (Downloads/Software), is designed to provide simple and fast
application development of ladder logic programming.
These are some of the features that help
make this happen:
• The Navigation window allows
organization of the ladder logic
programs used in your project and
access to the functions, settings and
configurations used to work with
your project.
• The Instruction List window
displays all available CLICK PLC
instructions, allows you to drag and
drop the instruction into your ladder
logic program, and then enter any
values and/or parameters required
for the particular instruction.
• You can add Subroutine and Interrupt programs separately from the main ladder logic
program. This allows you to manage your ladder logic programs in a simple, structured
environment and, at the same time, aid in trouble-shooting your program.
• The Data View Monitor window configurations are saved with your project. This allows
quick access to the same set of memory addresses that may have been set up for viewing
during testing of your program.
• The graphical represented System Configuration dialog box allows checking the PLC
system configuration. A Power Budget calculation feature is included. Refer to the Power
Budgeting section later in this chapter for additional details.
• The Address Picker window allows quick selection of any memory address to be placed in
the ladder logic program. Refer to the programming software online help for additional
details.
• The PLC module Firmware can be updated from the programming software within 2
minutes.

PC Requirements

Check our online webstore for current operating system requirements:
http://www.automationdirect.com
