CLICK Power Supplies

All CLICK PLCs require 24VDC input power from either a CLICK power supply or other
suitable external power supply. Two models of CLICK power supplies are available to supply
power to the PLC and I/O modules.
•
C0-00AC - 0.5 A @ 24VDC output
•
C0-01AC - 1.3 A @ 24VDC output
Select a power supply based on the power requirements of your system components. See
Mounting Guidelines in this chapter for module dimensions and Chapter 2 for CLICK
power supply specifications.
Power wires must be connected from the output terminals on the front of the power supply to
the input power connector on the bottom of the CLICK PLC (There is no internal 24VDC
power bus to the PLC.) See Mounting Guidelines for additional wiring information.
Only a single CLICK power supply can be attached directly to a CLICK PLC system. If
multiple CLICK power supplies are used, or if other type of power supplies are used, mount
them separately from the PLC. For example, the PSP24-DC12-1 DC-DC converter shown
below must be mounted separately from the PLC.

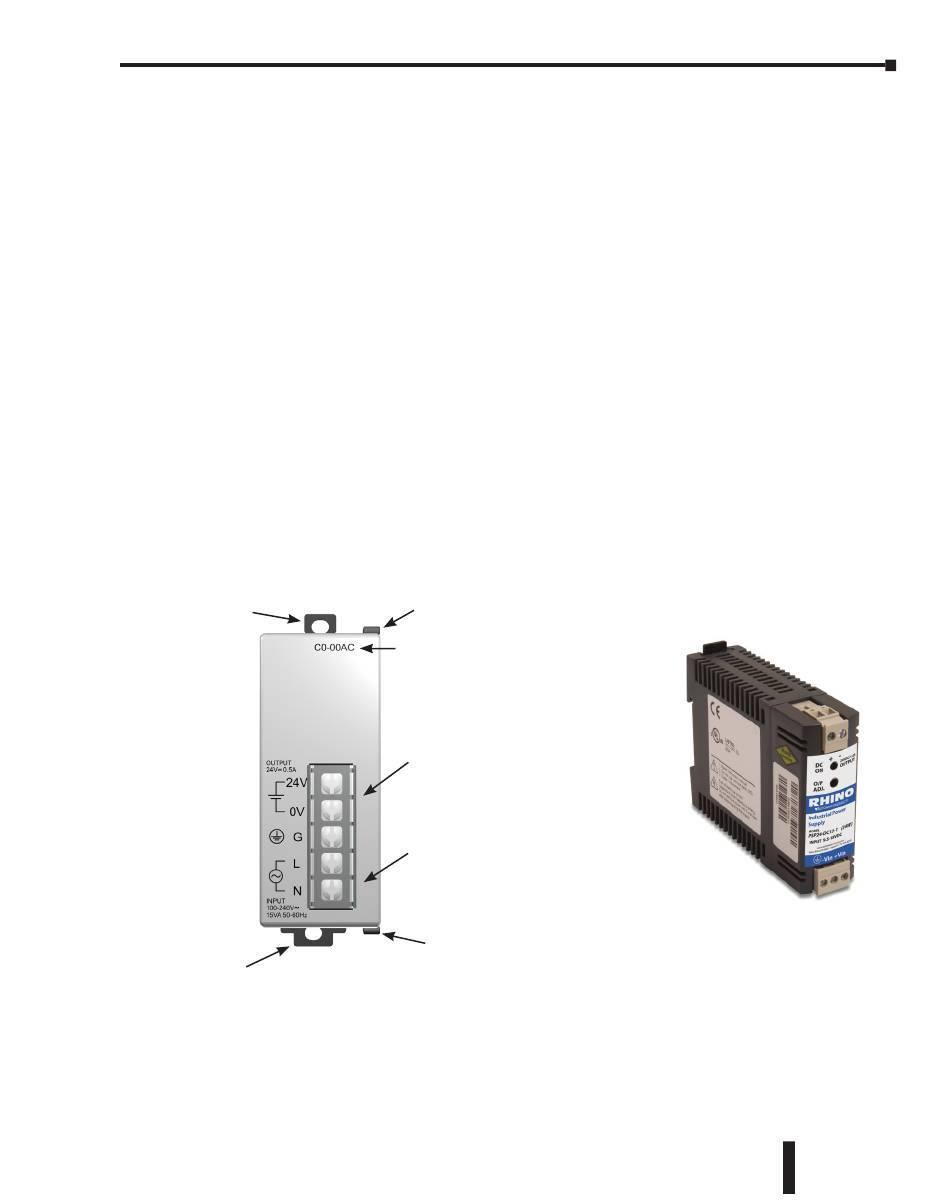

C0-00AC and C0-01AC Power
Supplies Component Locations
Mounting Tab
Mounting Tab
CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M
Chapter 3: Installation and Wiring
Sliding Latch
Power Supply Part Number
24VDC
Output Power Terminals
(for CLICK PLC, I/O or field device, etc.)
85–264 VAC Power Source
Input Terminals
Sliding Latch
The PSP24-DC12-1 DC-DC
converter must be mounted
separately from the PLC.
