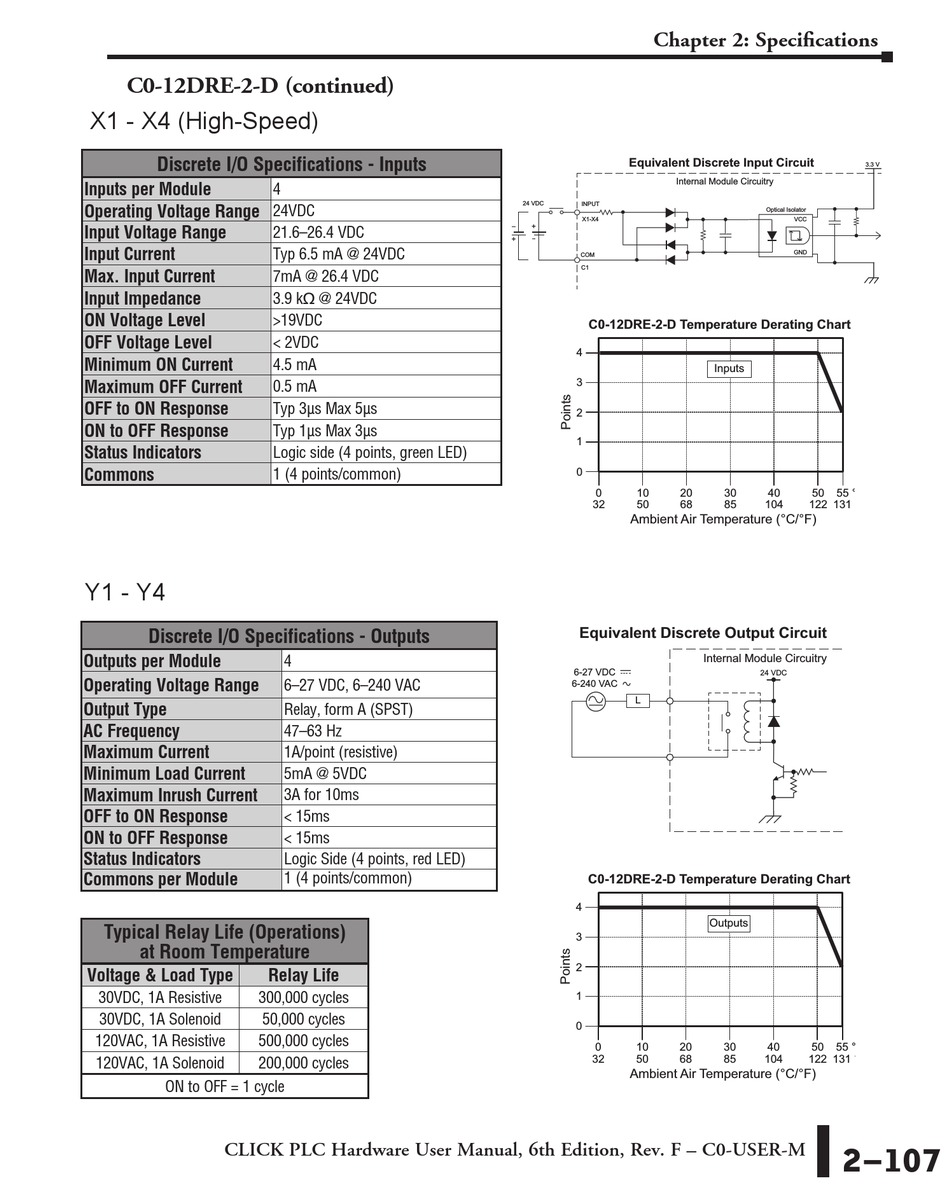

C0-12DRE-2-D (continued)
X1 - X4 (High-Speed)
Discrete I/O Specifications - Inputs
Inputs per Module
Operating Voltage Range
Input Voltage Range
Input Current
Max. Input Current
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Y1 - Y4
Discrete I/O Specifications - Outputs
Outputs per Module
Operating Voltage Range
Output Type
AC Frequency
Maximum Current
Minimum Load Current
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons per Module
Typical Relay Life (Operations)
at Room Temperature
Voltage & Load Type
30VDC, 1A Resistive 300,000 cycles
30VDC, 1A Solenoid
120VAC, 1A Resistive 500,000 cycles
120VAC, 1A Solenoid 200,000 cycles
ON to OFF = 1 cycle
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
4
24VDC
21.6–26.4 VDC
Typ 6.5 mA @ 24VDC
7mA @ 26.4 VDC
3.9 kq @ 24VDC
>19VDC
< 2VDC
4.5 mA
0.5 mA
Typ 3μs Max 5μs
Typ 1μs Max 3μs
Logic side (4 points, green LED)
1 (4 points/common)
4
6–27 VDC, 6–240 VAC
Relay, form A (SPST)
47–63 Hz
1A/point (resistive)
5mA @ 5VDC
3A for 10ms
< 15ms
< 15ms
Logic Side (4 points, red LED)
1 (4 points/common)
Relay Life
50,000 cycles
Chapter 2: Specifications
Equivalent Discrete Input Circuit
Internal Module Circuitry
24 VDC INPUT
X1-X4
+
+
COM
C1
C0-12DRE-2-D Temperature Derating Chart
4
3
2
1
0
0 10 20
32 50 68
Ambient Air Temperature (°C/°F)
Equivalent Discrete Output Circuit
6-27 VDC
6-240 VAC
L
C0-12DRE-2-D Temperature Derating Chart
4
3
2
1
0
0 10 20
32 50 68
Ambient Air Temperature (°C/°F)
3.3 V
Optical Isolator
VCC
GND
Inputs
30 40 50 55 °C
85 104 122 131 °F
24 VDC
Outputs
30 40 50 55 °C
85 104 122 131 °F
