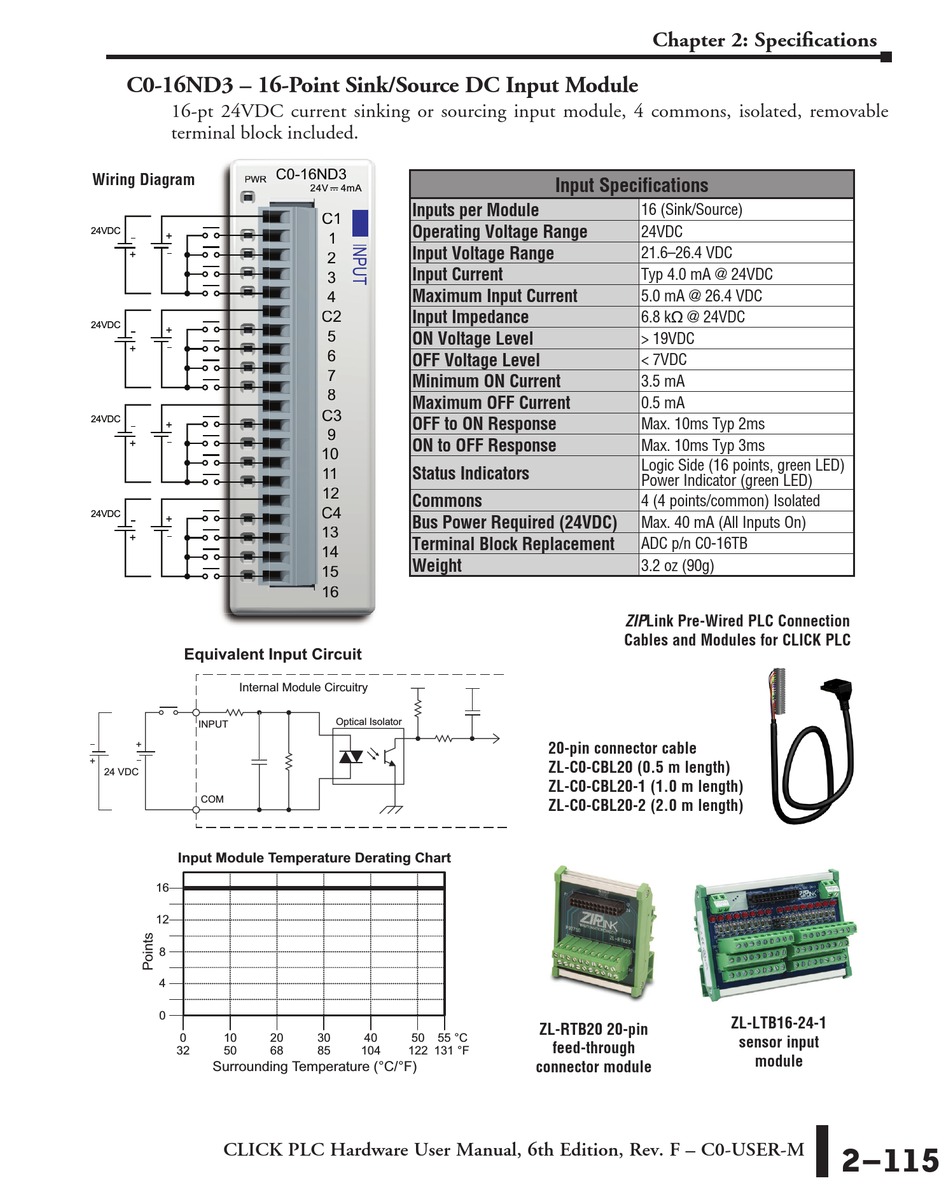

C0-16ND3 – 16-Point Sink/Source DC Input Module
16-pt 24VDC current sinking or sourcing input module, 4 commons, isolated, removable
terminal block included.
Wiring Diagram
PWR PWR
24VDC
24VDC
24VDC
24VDC
Equivalent Input Circuit
Internal Module Circuitry
INPUT
+
+
24 VDC
COM
Input Module Temperature Derating Chart
16
12
8
4
0
0 10
32 50
Surrounding Temperature (°C/°F)
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
C0-16ND3 C0-16ND3
24V 24V 4mA 4mA
Inputs per Module
C1 C1
Operating Voltage Range
1 1
Input Voltage Range
2 2
Input Current
3 3
Maximum Input Current
4 4
C2 C2 Input Impedance
5 5
ON Voltage Level
6 6
OFF Voltage Level
7 7
Minimum ON Current
8 8
Maximum OFF Current
C3 C3
OFF to ON Response
9 9
ON to OFF Response
10 10
Status Indicators
11 11
12 12
Commons
C4 C4
Bus Power Required (24VDC)
13 13
Terminal Block Replacement
14 14
Weight
15 15
16 16
Optical Isolator
20 30 40 50 55 °C
68 85 104 122 131 °F
Chapter 2: Specifications
Input Specifications
16 (Sink/Source)
24VDC
21.6–26.4 VDC
Typ 4.0 mA @ 24VDC
5.0 mA @ 26.4 VDC
6.8 kq @ 24VDC
> 19VDC
< 7VDC
3.5 mA
0.5 mA
Max. 10ms Typ 2ms
Max. 10ms Typ 3ms
Logic Side (16 points, green LED)
Power Indicator (green LED)
4 (4 points/common) Isolated
Max. 40 mA (All Inputs On)
ADC p/n C0-16TB
3.2 oz (90g)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
20-pin connector cable
ZL-C0-CBL20 (0.5 m length)
ZL-C0-CBL20-1 (1.0 m length)
ZL-C0-CBL20-2 (2.0 m length)
ZL-RTB20 20-pin
feed-through
connector module
ZL-LTB16-24-1
sensor input
module
2–115
