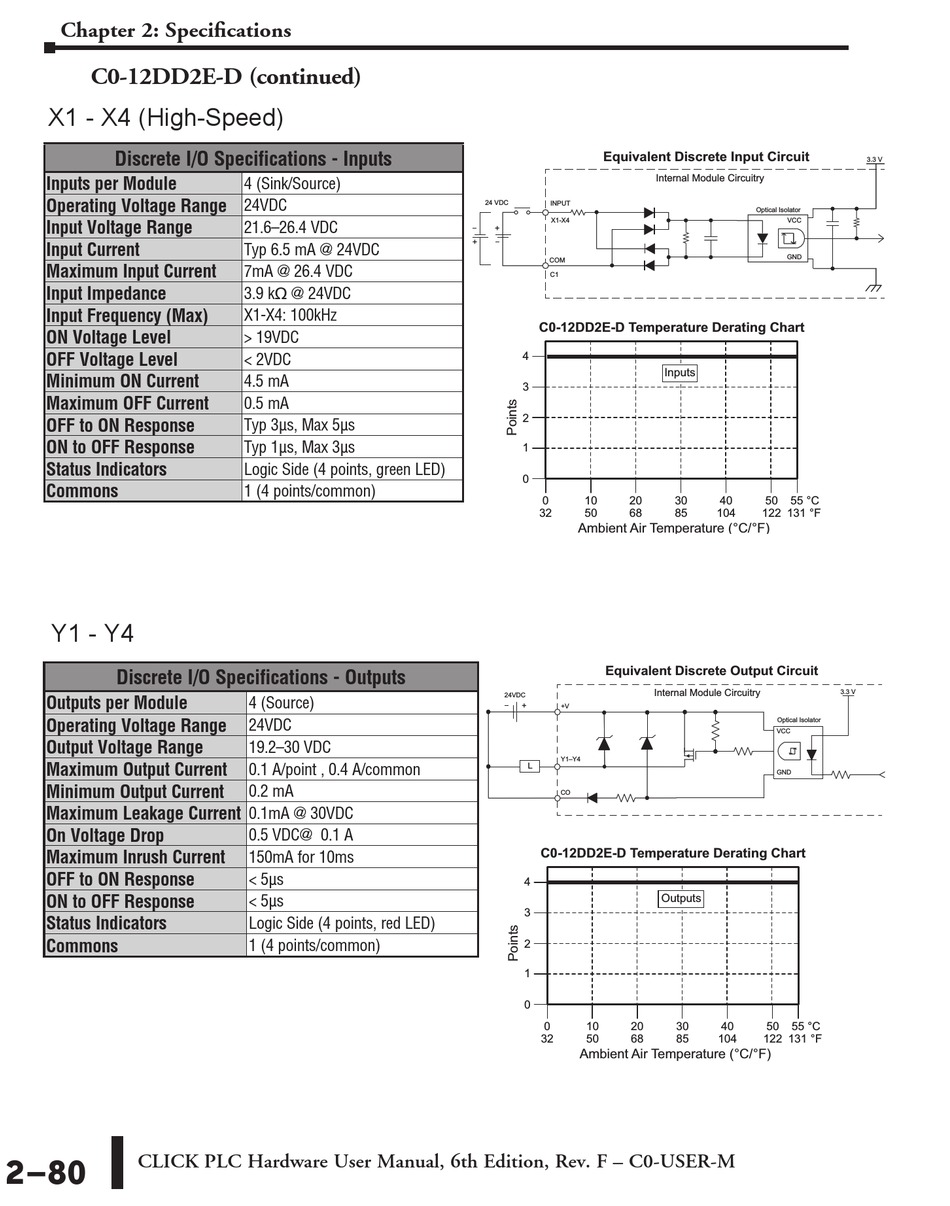

Chapter 2: Specifications
C0-12DD2E-D (continued)
X1 - X4 (High-Speed)
Discrete I/O Specifications - Inputs
Inputs per Module
Operating Voltage Range
Input Voltage Range
Input Current
Maximum Input Current
Input Impedance
Input Frequency (Max)
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Y1 - Y4
Discrete I/O Specifications - Outputs
Outputs per Module
Operating Voltage Range
Output Voltage Range
Maximum Output Current
Minimum Output Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
2–80
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
4 (Sink/Source)
24VDC
21.6–26.4 VDC
Typ 6.5 mA @ 24VDC
7mA @ 26.4 VDC
3.9 kq @ 24VDC
X1-X4: 100kHz
> 19VDC
< 2VDC
4.5 mA
0.5 mA
Typ 3μs, Max 5μs
Typ 1μs, Max 3μs
Logic Side (4 points, green LED)
1 (4 points/common)
4 (Source)
24VDC
19.2–30 VDC
0.1 A/point , 0.4 A/common
0.2 mA
0.1mA @ 30VDC
0.5 VDC@ 0.1 A
150mA for 10ms
< 5μs
< 5μs
Logic Side (4 points, red LED)
1 (4 points/common)
Equivalent Discrete Input Circuit
24 VDC
INPUT
X1-X4
+
+
COM
C1
C0-12DD2E-D Temperature Derating Chart
4
3
2
1
0
0 10 20
32 50 68
Ambient Air Temperature (°C/°F)
Equivalent Discrete Output Circuit
24VDC
+
+V
Y1–Y4
L
CO
C0-12DD2E-D Temperature Derating Chart
4
3
2
1
0
0 10 20
32 50 68
Ambient Air Temperature (°C/°F)
Internal Module Circuitry
Optical Isolator
VCC
GND
Inputs
30 40 50 55 °C
85 104 122 131 °F
Internal Module Circuitry
Optical Isolator
VCC
GND
Outputs
30 40 50 55 °C
85 104 122 131 °F
3.3 V
3.3 V
