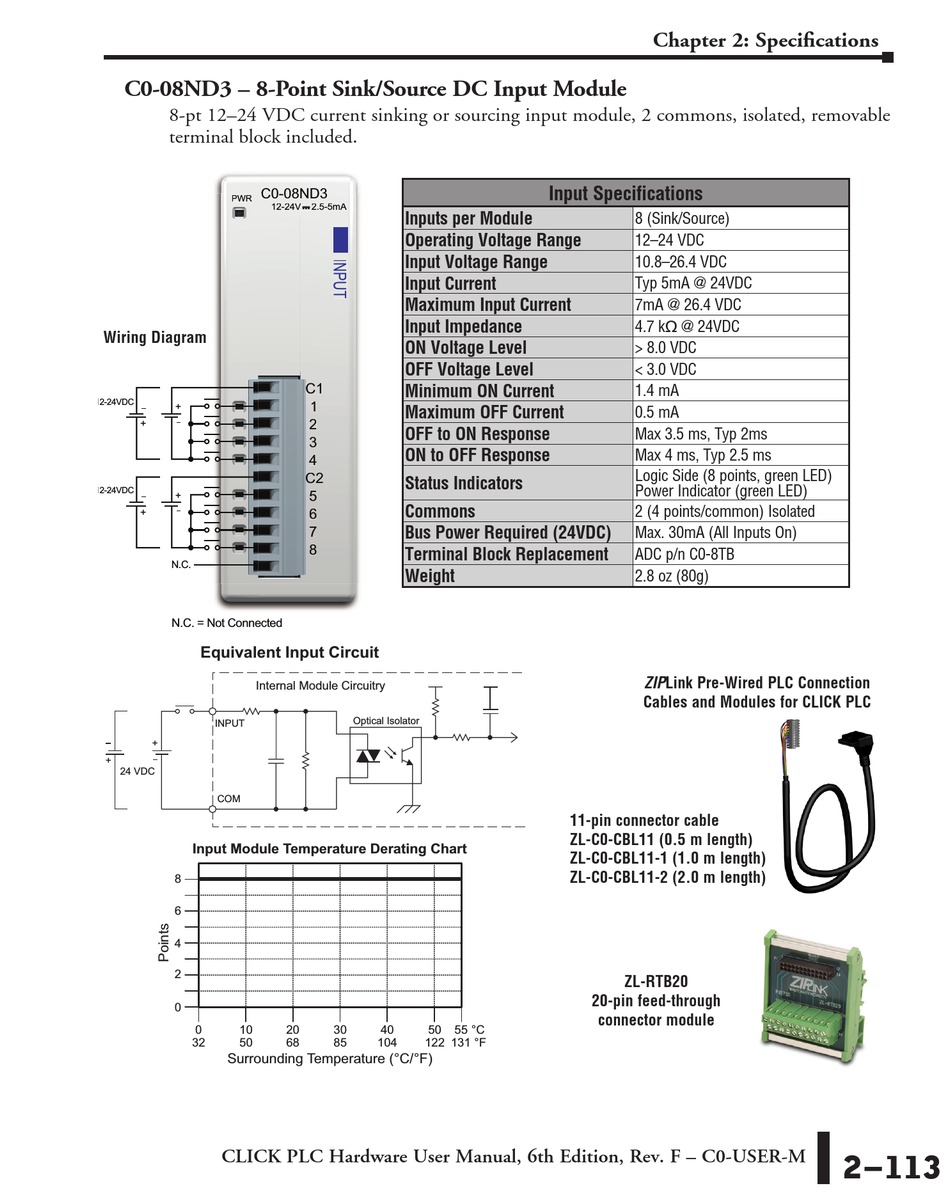

C0-08ND3 – 8-Point Sink/Source DC Input Module
8-pt 12–24 VDC current sinking or sourcing input module, 2 commons, isolated, removable
terminal block included.
C0-08ND3 C0-08ND3
PWR PWR
12-24V 12-24V
Wiring Diagram
12-24VDC
12-24VDC
N.C.
N.C. = Not Connected
Equivalent Input Circuit
Internal Module Circuitry
INPUT
+
+
24 VDC
COM
Input Module Temperature Derating Chart
8
6
4
2
0
0 10
32 50
Surrounding Temperature (°C/°F)
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
2.5-5mA 2.5-5mA
Inputs per Module
Operating Voltage Range
Input Voltage Range
Input Current
Maximum Input Current
Input Impedance
ON Voltage Level
OFF Voltage Level
C1 C1 Minimum ON Current
1 1
Maximum OFF Current
2 2
OFF to ON Response
3 3
ON to OFF Response
4 4
C2 C2
Status Indicators
5 5
Commons
6 6
Bus Power Required (24VDC)
7 7
8 8
Terminal Block Replacement
Weight
Optical Isolator
20 30 40 50 55 °C
68 85 104 122 131 °F
Chapter 2: Specifications
Input Specifications
8 (Sink/Source)
12–24 VDC
10.8–26.4 VDC
Typ 5mA @ 24VDC
7mA @ 26.4 VDC
4.7 kq @ 24VDC
> 8.0 VDC
< 3.0 VDC
1.4 mA
0.5 mA
Max 3.5 ms, Typ 2ms
Max 4 ms, Typ 2.5 ms
Logic Side (8 points, green LED)
Power Indicator (green LED)
2 (4 points/common) Isolated
Max. 30mA (All Inputs On)
ADC p/n C0-8TB
2.8 oz (80g)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
ZL-RTB20
20-pin feed-through
connector module
2–113
