Chapter 3: Installation and Wiring
Configuration in the CLICK Programming Software
All analog I/O points can be configured in the CLICK Programming Software. There is no
jumper switch in these modules.
Analog PLC units
The Analog PLC units cannot detect which terminal is used between the analog voltage and
analog current, so you must configure which analog type is used for each analog I/O in the
CLICK programming software.

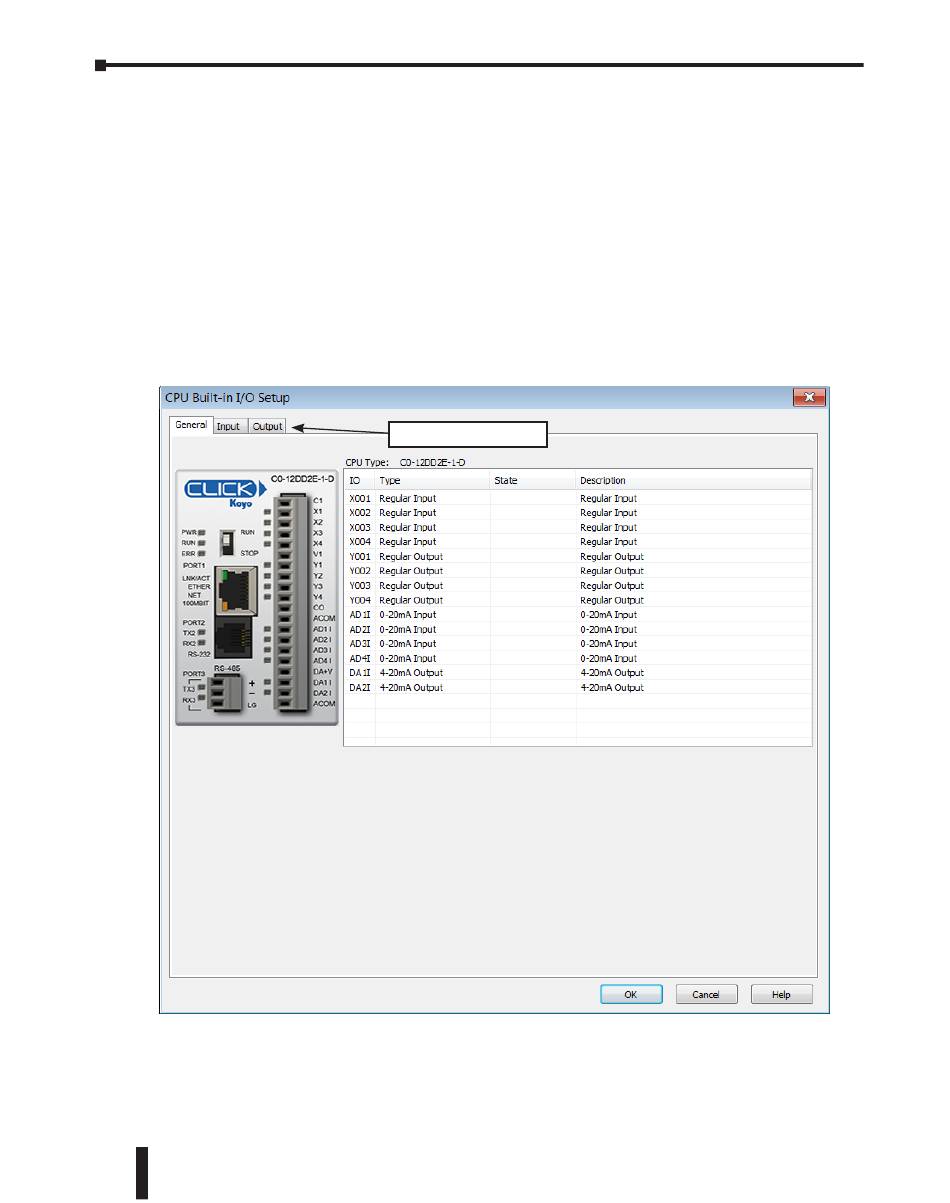

Connect the CLICK programming software to the Analog PLC unit, then open the CPU
Built-in I/O Setup window as shown below.
(Pull-down menu: Setup > CPU Built-in I/O Setup)
3–40
CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M
Input and Output tabs
