Product Dimensions and Installation
It is important to understand the
installation requirements for your CLICK
system. Your knowledge of these
requirements will help ensure that your
system operates within its environmental
and electrical limits.
Plan for Safety
This catalog should never be used as a
replacement for the user manual.
You can purchase, download free, or view
online the user manuals for these prod-
ucts. Manual C0-USER-M is the user
manual for the CLICK PLC.
manual contains important safety infor-
mation that must be followed. The system
installation should comply with all appro-
priate electrical codes and standards.

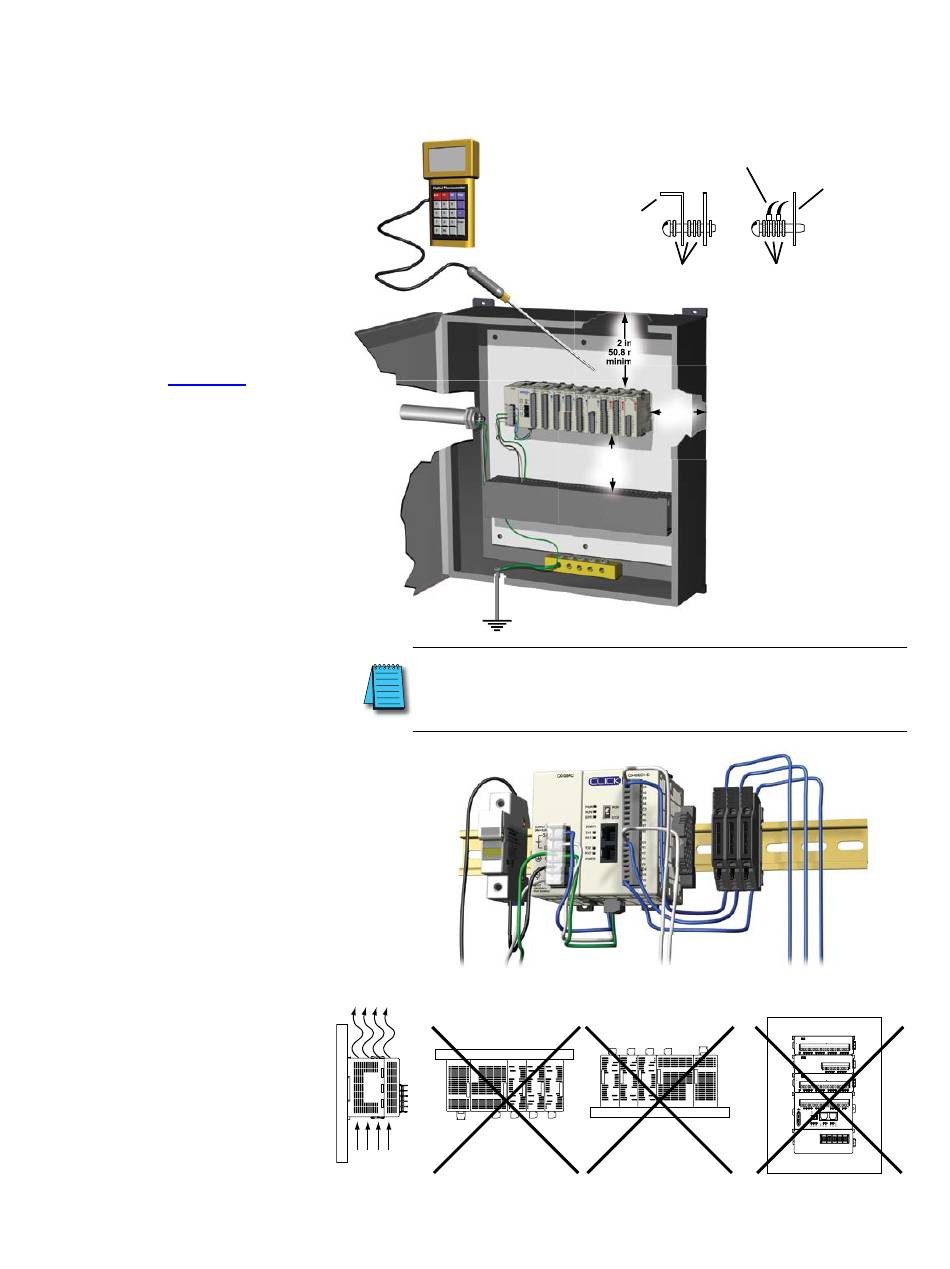

Mounting Orientation
CLICK PLCs must be mounted prop-
erly to ensure ample airflow for cooling
purposes. It is important to follow the
unit orientation requirements and to verify
that the PLC's dimensions are compatible
with your application. Notice particularly
the grounding requirements and the
recommended cabinet clearances.
tCLP-12
CLICK PLCs
The user
NOTE: T
bETwEEN ThE
ThE PaNEl dOOr
sidE Of ThE ENclOsurE
bETwEEN ThE
Air
Flow
Panel
Star Washers
2 in.
50.8 mm
minimum
50.8mm
minimum
3 in.
76.2 mm
minimum
hErE is a miNimum clEaraNcE rEquirEmENT Of
clicK Plc
aNd ThE PaNEl dOOr Or aNy dEvicEs mOuNTEd iN
. T
hE samE clEaraNcE is rEquirEd bETwEEN ThE
. a
miNimum clEaraNcE Of
Plc
aNd a wirEway Or aNy hEaT PrOduciNg dEvicE
