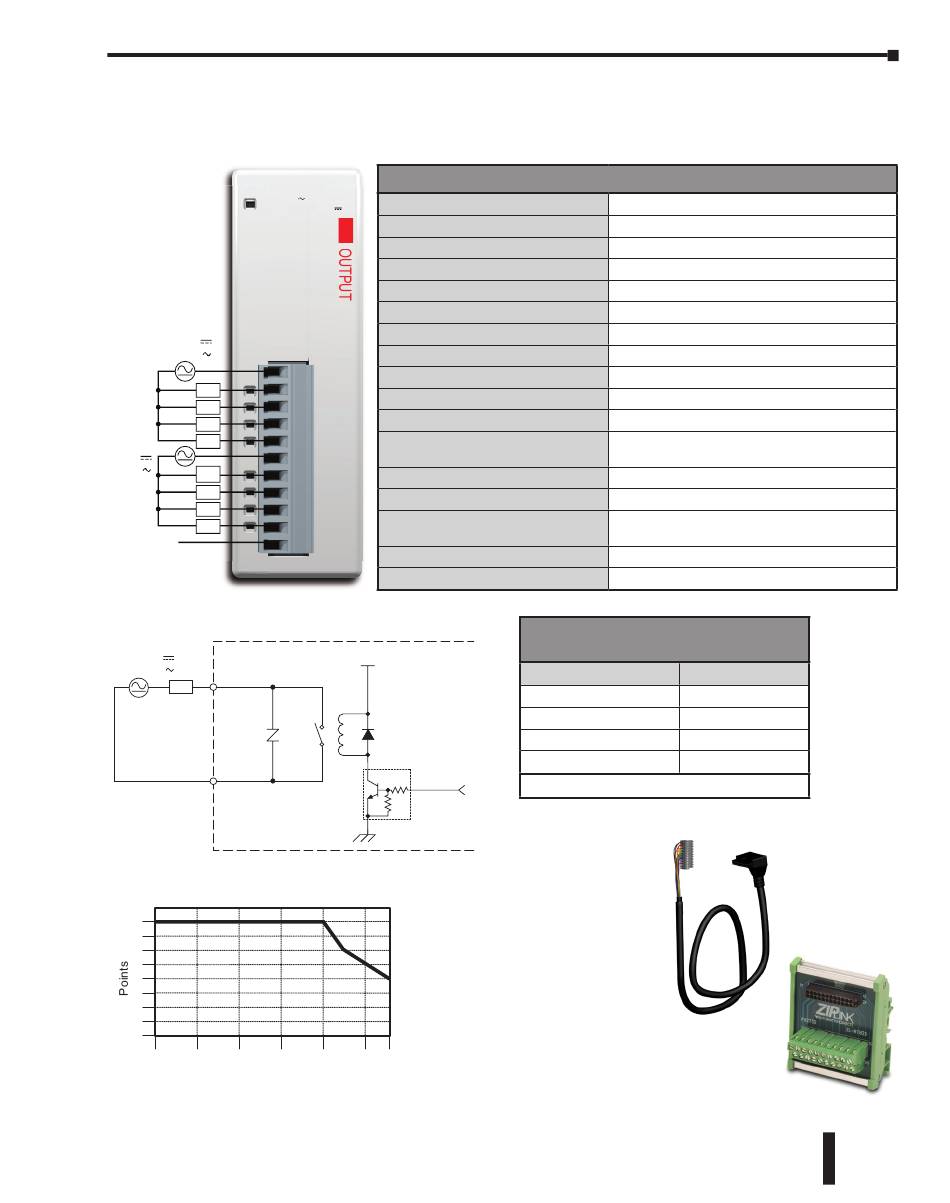

C0-08TR – 8-Point Relay Output Module
8-pt 6–240 VAC /6–27 VDC relay output module, 8 Form A (SPST) relays, 2 commons,
isolated, 4 A/common, removable terminal block included.
Wiring Diagram
PWR PWR
6 - 27VDC
6 - 240VAC
L
L
L
L
6 - 27VDC
6 - 240VAC
L
L
L
L
N.C.
N.C. = Not Connected
Equivalent Output Circuit
6-27 VDC
6-240 VAC
OUTPUT
L
*
COM
* Varistor Joule Rating: 20 J
Output Temperature Derating Chart
8
6
4
2
0
0 10 20
32 50 68
Surrounding Air Temperature (°C/°F)
* Use every other output.
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
C0-08TR C0-08TR
250V 1A 50-60Hz 250V 1A 50-60Hz V V
〜 〜 Outputs per Module
30V 1A 30V 1A
Operating Voltage Range
Output Voltage Range
Output Type
AC Frequency
Maximum Current (resistive)
Minimum Load Current
Maximum Leakage Current
C1
Maximum Inrush Current
1
OFF to ON Response
2
ON to OFF Response
3
4
Status Indicators
C2
5
Commons
6
Bus Power Required (24VDC)
7
8
Protection Circuit
Terminal Block Replacement
Weight
Internal Module Circuitry
*
30 40 50 55 °C
85 104 122 131 °F
Output Specifications
8
6–27 VDC / 6–240 VAC
5–30 VDC / 5–264 VAC
Relay, form A (SPST)
47–63 Hz
1A /point, 4A /common
5mA @ 5VDC
0.1 mA @ 264VAC
3A for 10ms
< 15ms
< 15ms
Logic Side (8 points, red LED)
Power Indicator (green LED)
2 (4 points/common) Isolated
Max. 100mA (All Outputs On)
Not built into the module - Install protection
elements such as external fuse.
ADC p/n C0-8TB
3.9 oz (110g)
Typical Relay Life (Operations)
at Room Temperature
Voltage & Load Type
30VDC, 1A Resistive
30VDC, 1A Solenoid
250VAC, 1A Resistive
250VAC, 1A Solenoid
ON to OFF = 1 cycle
ZIPLink Pre-Wired
PLC Connection
Cables and Modules
for CLICK PLC
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
Chapter 2: Specifications
Relay Life
300,000 cycles
50,000 cycles
500,000 cycles
200,000 cycles
