Chapter 2: Specifications

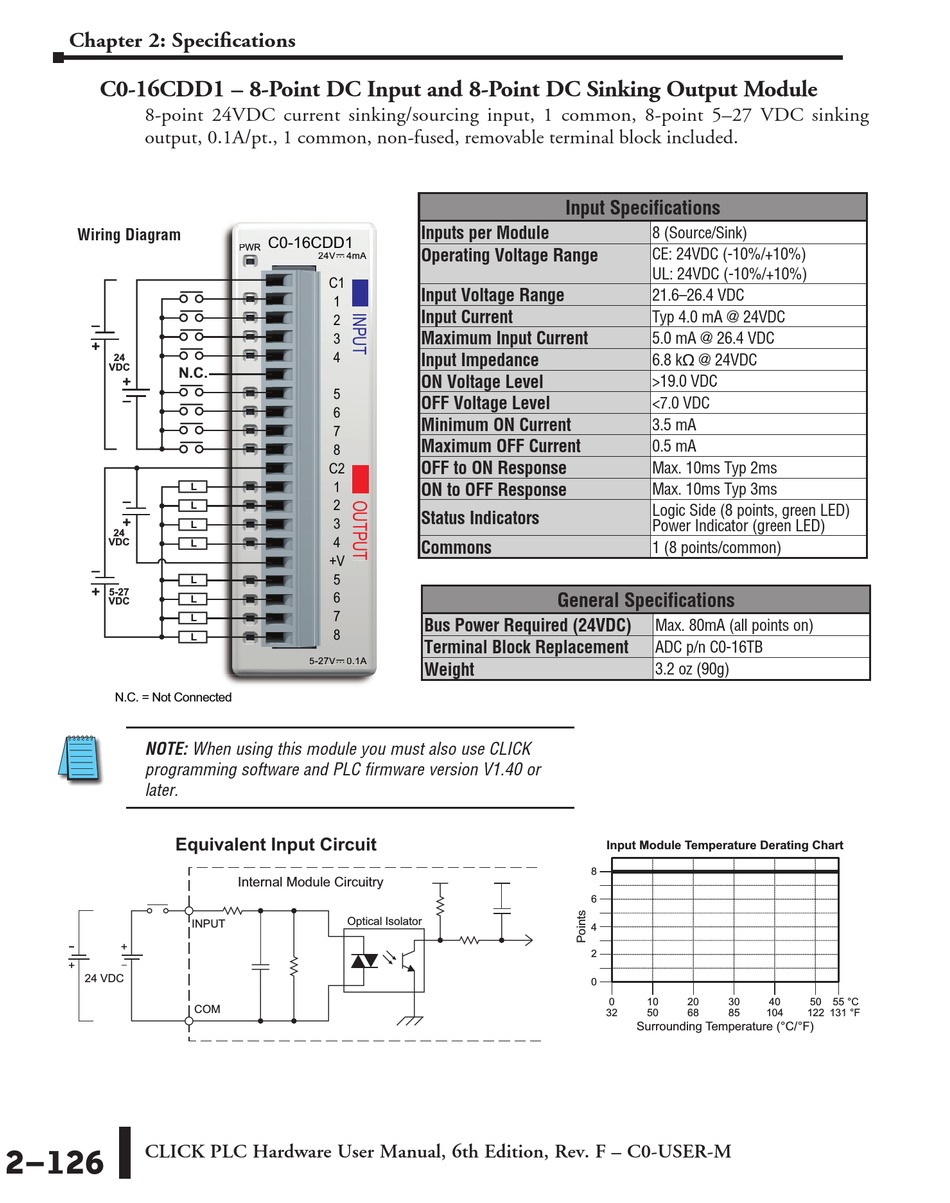

C0-16CDD1 – 8-Point DC Input and 8-Point DC Sinking Output Module
8-point 24VDC current sinking/sourcing input, 1 common, 8-point 5–27 VDC sinking
output, 0.1A/pt., 1 common, non-fused, removable terminal block included.
Wiring Diagram
24
VDC
N.C.
+
–
24
VDC
5-27
VDC
N.C. = Not Connected
NOTE: When using this module you must also use CLICK
programming software and PLC firmware version V1.40 or
later.
Equivalent Input Circuit
+
+
24 VDC
2–126
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
C0-16CDD1 C0-16CDD1
PWR PWR
24V 24V 4mA 4mA
C1
1
2
3
4
5
6
7
8
C2
1
L
2
L
3
L
4
L
+V
5
L
6
L
7
L
8
L
5-27V 5-27V 0.1A 0.1A
Internal Module Circuitry
Optical Isolator
INPUT
COM
Input Specifications
Inputs per Module
Operating Voltage Range
Input Voltage Range
Input Current
Maximum Input Current
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
General Specifications
Bus Power Required (24VDC)
Terminal Block Replacement
Weight
8
6
4
2
0
8 (Source/Sink)
CE: 24VDC (-10%/+10%)
UL: 24VDC (-10%/+10%)
21.6–26.4 VDC
Typ 4.0 mA @ 24VDC
5.0 mA @ 26.4 VDC
6.8 kq @ 24VDC
>19.0 VDC
<7.0 VDC
3.5 mA
0.5 mA
Max. 10ms Typ 2ms
Max. 10ms Typ 3ms
Logic Side (8 points, green LED)
Power Indicator (green LED)
1 (8 points/common)
Max. 80mA (all points on)
ADC p/n C0-16TB
3.2 oz (90g)
Input Module Temperature Derating Chart
0 10 20 30 40
32 50 68 85 104
Surrounding Temperature (°C/°F)
50 55 °C
122 131 °F
