C0-12ARE-2-D – 4 AC Input (Sink/Source) /4 Relay Output;

4 Analog Voltage Input

2 Analog Voltage Output Micro PLC

PWR PWR PWR RUN R R R UN R R RUN
PWR RUN
RUN RUN
RUN
STOP S S TOP STOP STOP S S TOP S S S S
ERR ERR ERR
PORT1 PORT1
PORT1
LNK/ACT LNK/ACT
LNK/ACT
ETHER ETHER ETHER ETHER
NET NET NET NET
NET
100MBIT 100MBIT 100MBIT 100MBIT 100MBIT
PORT2 PORT2
PORT2
TX2 TX2
TX2
RX2 RX2 RX2
RS-232 RS 232 RS-232 RS-232
RS-485 RS- -485 5 485 5
PORT3 PO O RT3 PO O RT3
+ + +
_ _ _
TX3 TX X 3
RX3 RX X 3
LG LG G
General Specifications
Current Consumption at 24VDC
Terminal Block Replacement Part No.
Weight
WARNING: When using an Ethernet Analog PLC unit, you must use CLICK programming software
version V2.20 or later.
NOTE: Please refer to the Analog I/O Configuration section in Chapter 3 for information on using the
analog I/O.
NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs
(cannot mix discrete I/O and analog I/O signals in a ZIPLink cable).
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M

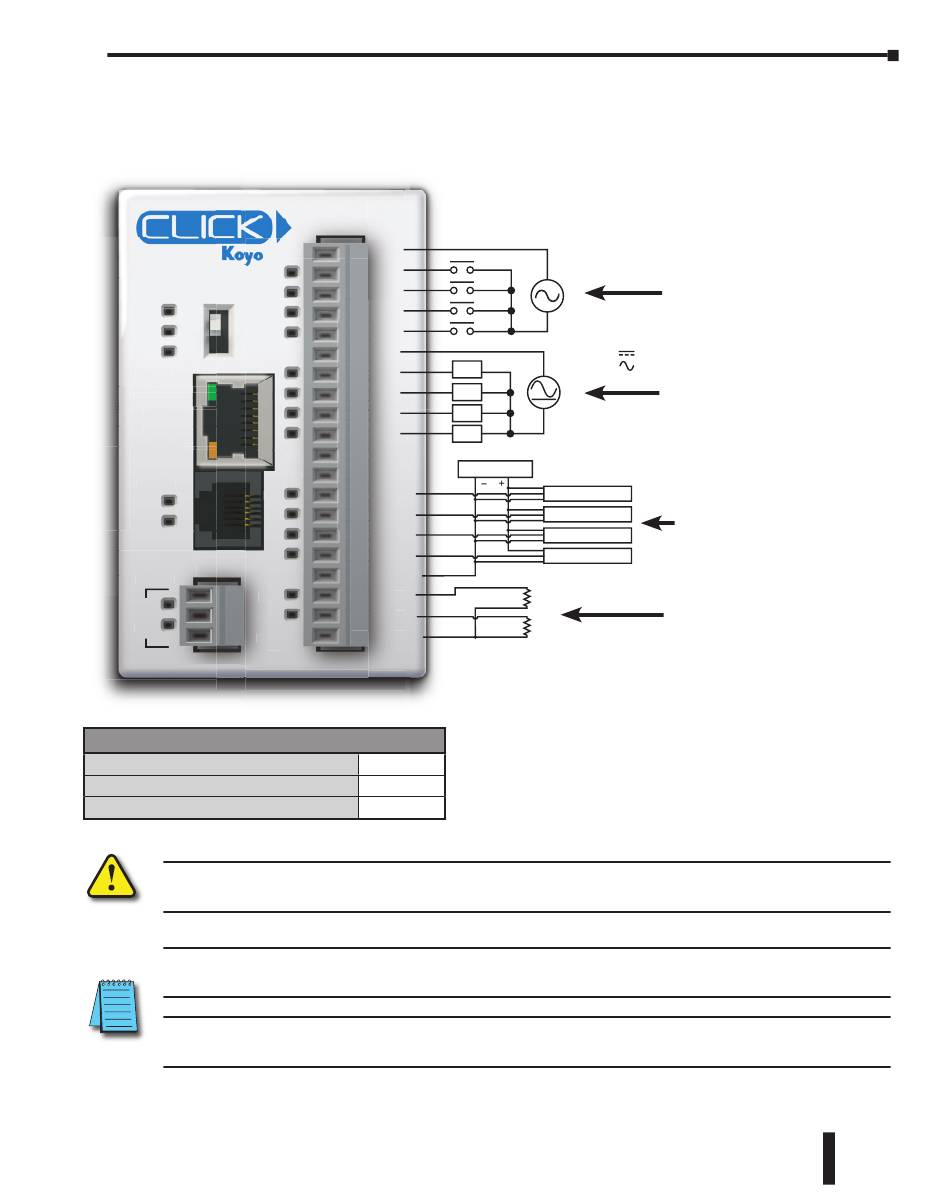

Wiring Diagram
C0-12ARE-2-D
C1
X1
X2
X3
X4
C2
L
Y1
L
Y2
L
Y3
Y4 L
Transmitter P/S
AD1V
AD2V
AD3V
AD4V
ACOM
DA1V
DA2V
ACOM
140mA
C0-16TB
5.4 oz (155g)
Chapter 2: Specifications
100–120 VAC
See Discrete I/O Specifications
Inputs (X1 – X4)
6–27 VDC
6–240 VAC
See Discrete I/O Specifications
Outputs (Y1 – Y4)
Transmitter 0-10V
See Analog I/O Specifications
Transmitter 0-10V
Voltage Input
Transmitter 0-10V
(AD1V – AD4V)
Transmitter 0-10V
See Analog I/O Specifications
Voltage Output
(DA1V – DA2V)
2–109
