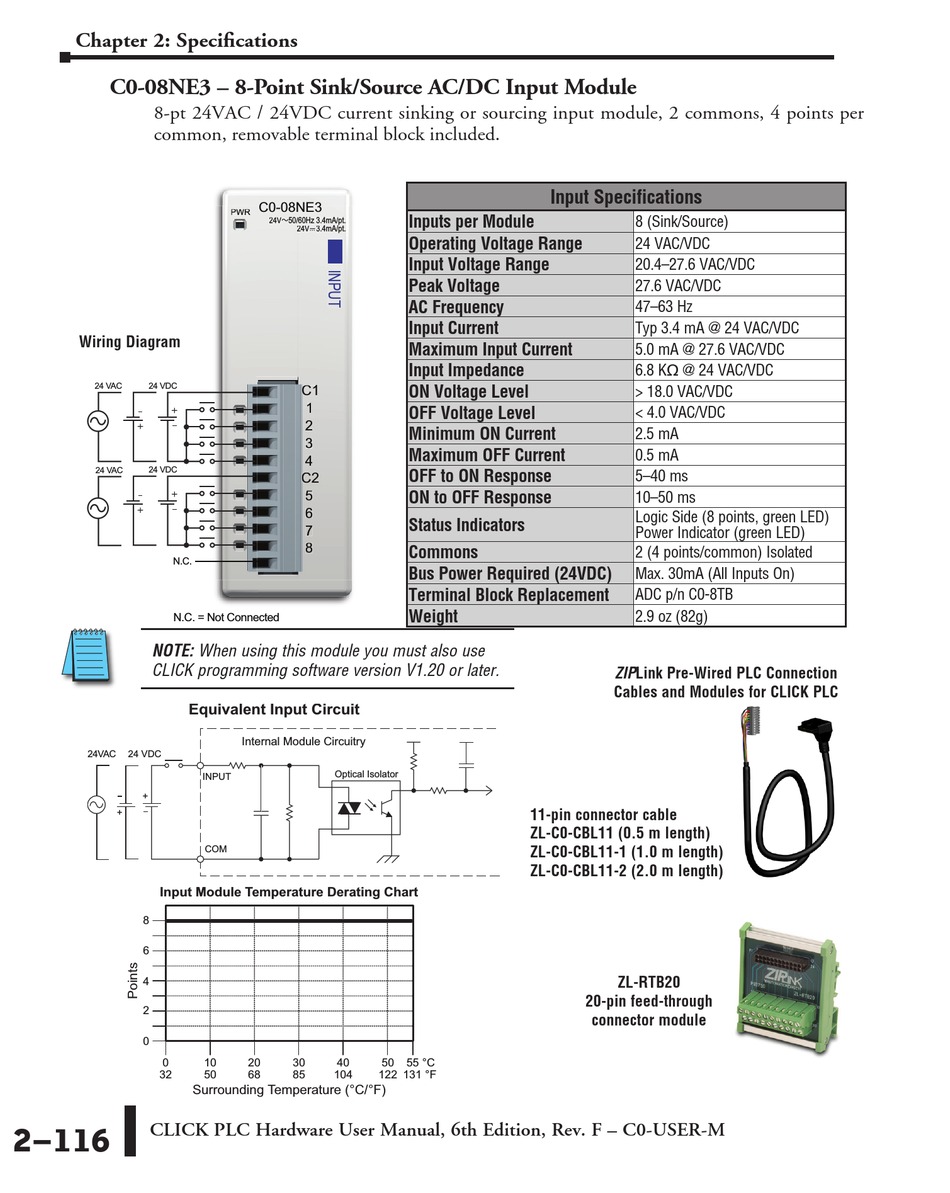

Chapter 2: Specifications
C0-08NE3 – 8-Point Sink/Source AC/DC Input Module
8-pt 24VAC / 24VDC current sinking or sourcing input module, 2 commons, 4 points per
common, removable terminal block included.
Wiring Diagram
24 VAC
24 VDC
24 VDC
24 VAC
N.C.
N.C. = Not Connected
NOTE: When using this module you must also use
CLICK programming software version V1.20 or later.
24VAC
24 VDC
+
+
Input Module Temperature Derating Chart
8
6
4
2
0
0
32
2–116
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
C0-08NE3
C0-08NE3
PWR
PWR
24V〜50/60Hz 3.4mA/pt.
24V〜50/60Hz 3.4mA/pt.
24V 3.4mA/pt.
24V 3.4mA/pt.
C
C 1
C1
C
1
1
2
2
3
3
4
4
C2
C 2
C
C
5
5
6
6
7
7
8
8
Equivalent Input Circuit
Internal Module Circuitry
Optical Isolator
INPUT
COM
10
20
30
40
50
68
85
104
Surrounding Temperature (°C/°F)
Input Specifications
Inputs per Module
Operating Voltage Range
Input Voltage Range
Peak Voltage
AC Frequency
Input Current
Maximum Input Current
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Bus Power Required (24VDC)
Terminal Block Replacement
Weight
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
50
55 °C
122
131 °F
8 (Sink/Source)
24 VAC/VDC
20.4–27.6 VAC/VDC
27.6 VAC/VDC
47–63 Hz
Typ 3.4 mA @ 24 VAC/VDC
5.0 mA @ 27.6 VAC/VDC
6.8 Kq @ 24 VAC/VDC
> 18.0 VAC/VDC
< 4.0 VAC/VDC
2.5 mA
0.5 mA
5–40 ms
10–50 ms
Logic Side (8 points, green LED)
Power Indicator (green LED)
2 (4 points/common) Isolated
Max. 30mA (All Inputs On)
ADC p/n C0-8TB
2.9 oz (82g)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
ZL-RTB20
20-pin feed-through
connector module
