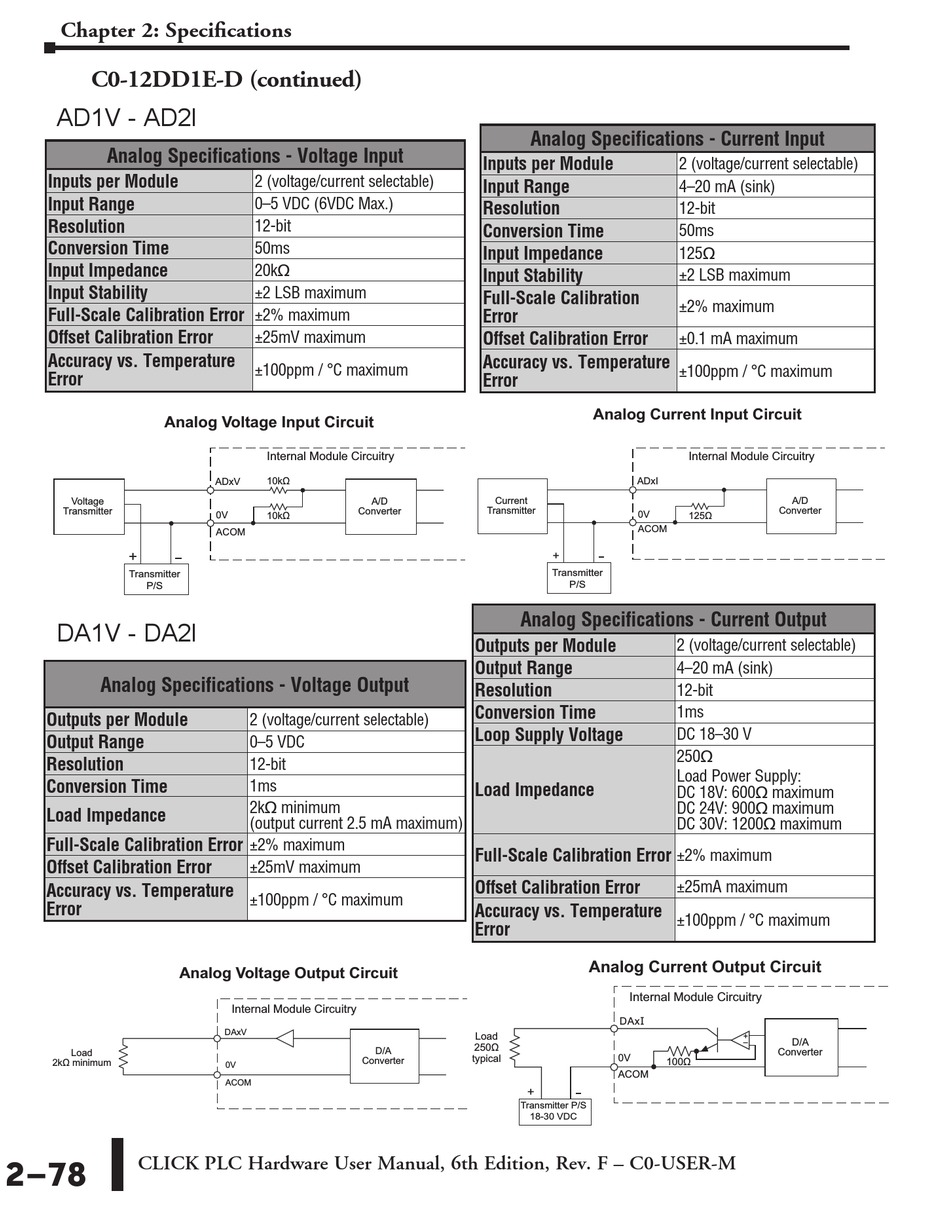

Chapter 2: Specifications
C0-12DD1E-D (continued)
AD1V - AD2I
Analog Specifications - Voltage Input
Inputs per Module
Input Range
Resolution
Conversion Time
Input Impedance
Input Stability
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Voltage Input Circuit
Voltage
Transmitter
+
Transmitter
P/S
DA1V - DA2I
Analog Specifications - Voltage Output
Outputs per Module
Output Range
Resolution
Conversion Time
Load Impedance
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Voltage Output Circuit
Load
2k minimum
2–78
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
2 (voltage/current selectable)
0–5 VDC (6VDC Max.)
12-bit
50ms
20kq
±2 LSB maximum
±2% maximum
±25mV maximum
±100ppm / °C maximum
Internal Module Circuitry
10k
ADxV
A/D
Converter
0V
10k
ACOM
2 (voltage/current selectable)
0–5 VDC
12-bit
1ms
2kq minimum
(output current 2.5 mA maximum)
±2% maximum
±25mV maximum
±100ppm / °C maximum
Internal Module Circuitry
DAxV
D/A
Converter
0V
ACOM
Analog Specifications - Current Input
Inputs per Module
Input Range
Resolution
Conversion Time
Input Impedance
Input Stability
Full-Scale Calibration
Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Current Input Circuit
ADxI
Current
Transmitter
0V
ACOM
+
Transmitter
P/S
Analog Specifications - Current Output
Outputs per Module
Output Range
Resolution
Conversion Time
Loop Supply Voltage
Load Impedance
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Current Output Circuit
Internal Module Circuitry
DAxI
Load
250
0V
typical
ACOM
+
Transmitter P/S
18-30 VDC
2 (voltage/current selectable)
4–20 mA (sink)
12-bit
50ms
125q
±2 LSB maximum
±2% maximum
±0.1 mA maximum
±100ppm / °C maximum
Internal Module Circuitry
A/D
Converter
125
2 (voltage/current selectable)
4–20 mA (sink)
12-bit
1ms
DC 18–30 V
250q
Load Power Supply:
DC 18V: 600q maximum
DC 24V: 900q maximum
DC 30V: 1200q maximum
±2% maximum
±25mA maximum
±100ppm / °C maximum
+
D/A
–
Converter
100
