Chapter 1: Getting Started

Step 8: Place PLC in RUN Mode

The next step is to place the CLICK PLC into its Run mode so

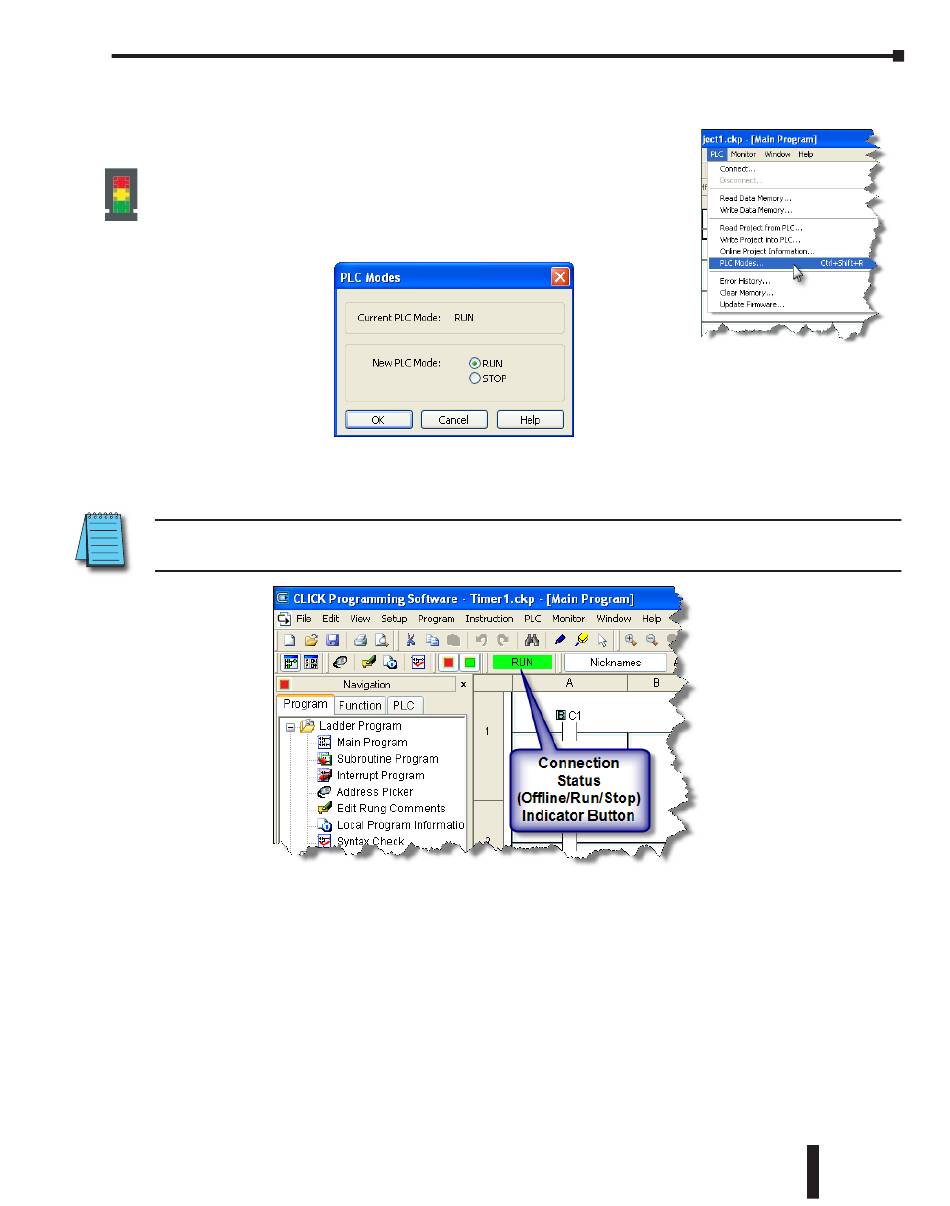

that the ladder logic program will execute. From the PLC drop
down menu, select PLC Modes... as shown to the right, or click on
the PLC Modes... icon (left) located on the PLC Toolbar.
The PLC Modes dialog box is displayed.
Click the radio button for RUN and then click the OK button. The CLICK PLC is now in
Run mode and executing your ladder logic program.
NOTE: The PLC Modes dialog box can also be accessed by clicking on the Connection status (Offline/Run/
Stop) indicator button that is located on the toolbar.
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–25
