Chapter 2: Specifications

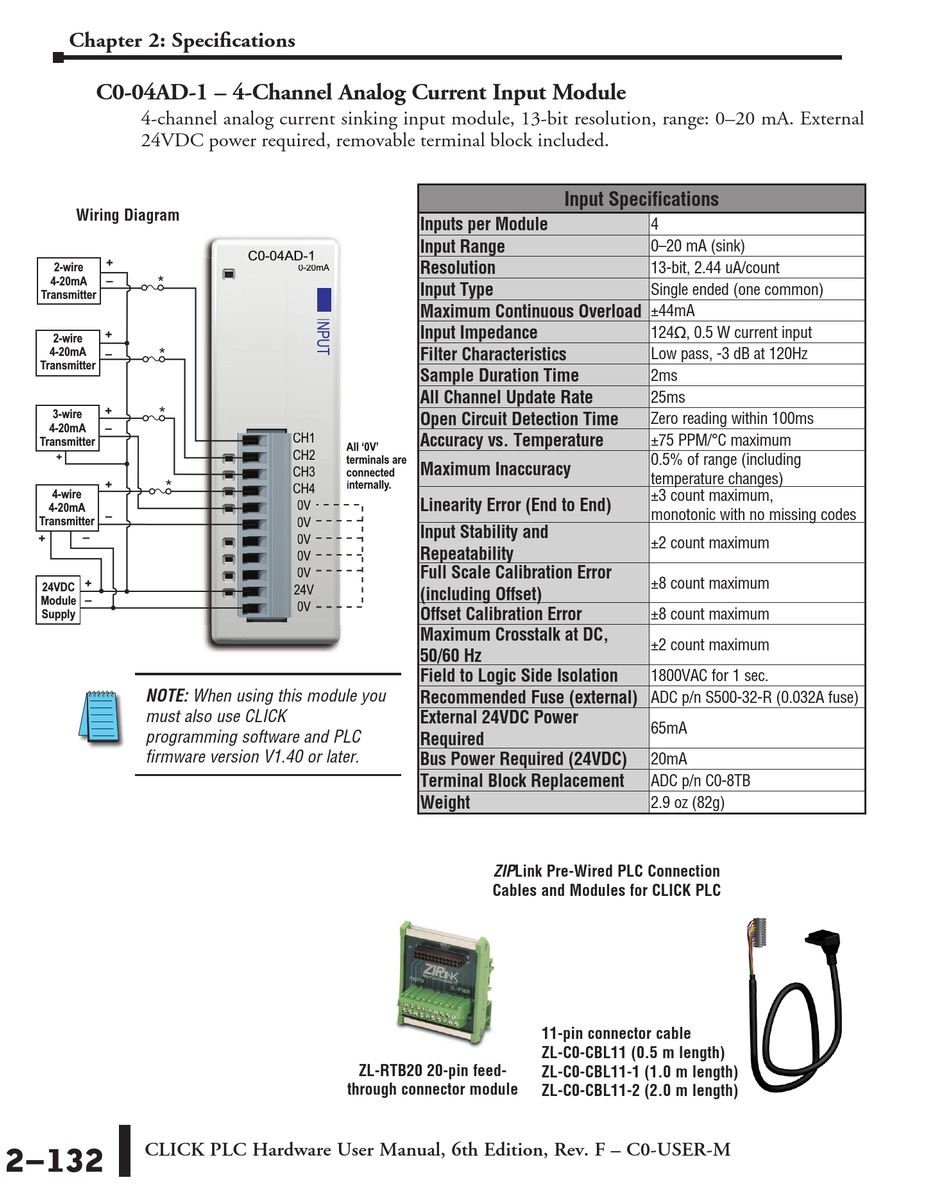

C0-04AD-1 – 4-Channel Analog Current Input Module
4-channel analog current sinking input module, 13-bit resolution, range: 0–20 mA. External
24VDC power required, removable terminal block included.
Wiring Diagram
+
2-wire
4-20mA *
–
Transmitter
+
2-wire
4-20mA
*
–
Transmitter
*
+
3-wire
4-20mA
–
Transmitter
+
*
+
4-wire
4-20mA
–
Transmitter
–
+
+
24VDC
Module
–
Supply
NOTE: When using this module you
must also use CLICK
programming software and PLC
firmware version V1.40 or later.
2–132
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
Inputs per Module
Input Range
C0-04AD-1 C0-04AD-1
Resolution
0-20mA 0-20mA
Input Type
Maximum Continuous Overload
Input Impedance
Filter Characteristics
Sample Duration Time
All Channel Update Rate
Open Circuit Detection Time
CH1 CH1 Accuracy vs. Temperature
A All '0V'
CH2 CH2
terminals are te
Maximum Inaccuracy
CH3 CH3
co connected
in internally.
CH4 CH4
Linearity Error (End to End)
0V 0V
0V 0V
Input Stability and
0V 0V
Repeatability
0V 0V
Full Scale Calibration Error
0V 0V
24V 24V
(including Offset)
0V 0V
Offset Calibration Error
Maximum Crosstalk at DC,
50/60 Hz
Field to Logic Side Isolation
Recommended Fuse (external)
External 24VDC Power
Required
Bus Power Required (24VDC)
Terminal Block Replacement
Weight
ZL-RTB20 20-pin feed-
through connector module
Input Specifications
4
0–20 mA (sink)
13-bit, 2.44 uA/count
Single ended (one common)
±44mA
124q, 0.5 W current input
Low pass, -3 dB at 120Hz
2ms
25ms
Zero reading within 100ms
±75 PPM/°C maximum
0.5% of range (including
temperature changes)
±3 count maximum,
monotonic with no missing codes
±2 count maximum
±8 count maximum
±8 count maximum
±2 count maximum
1800VAC for 1 sec.
ADC p/n S500-32-R (0.032A fuse)
65mA
20mA
ADC p/n C0-8TB
2.9 oz (82g)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
