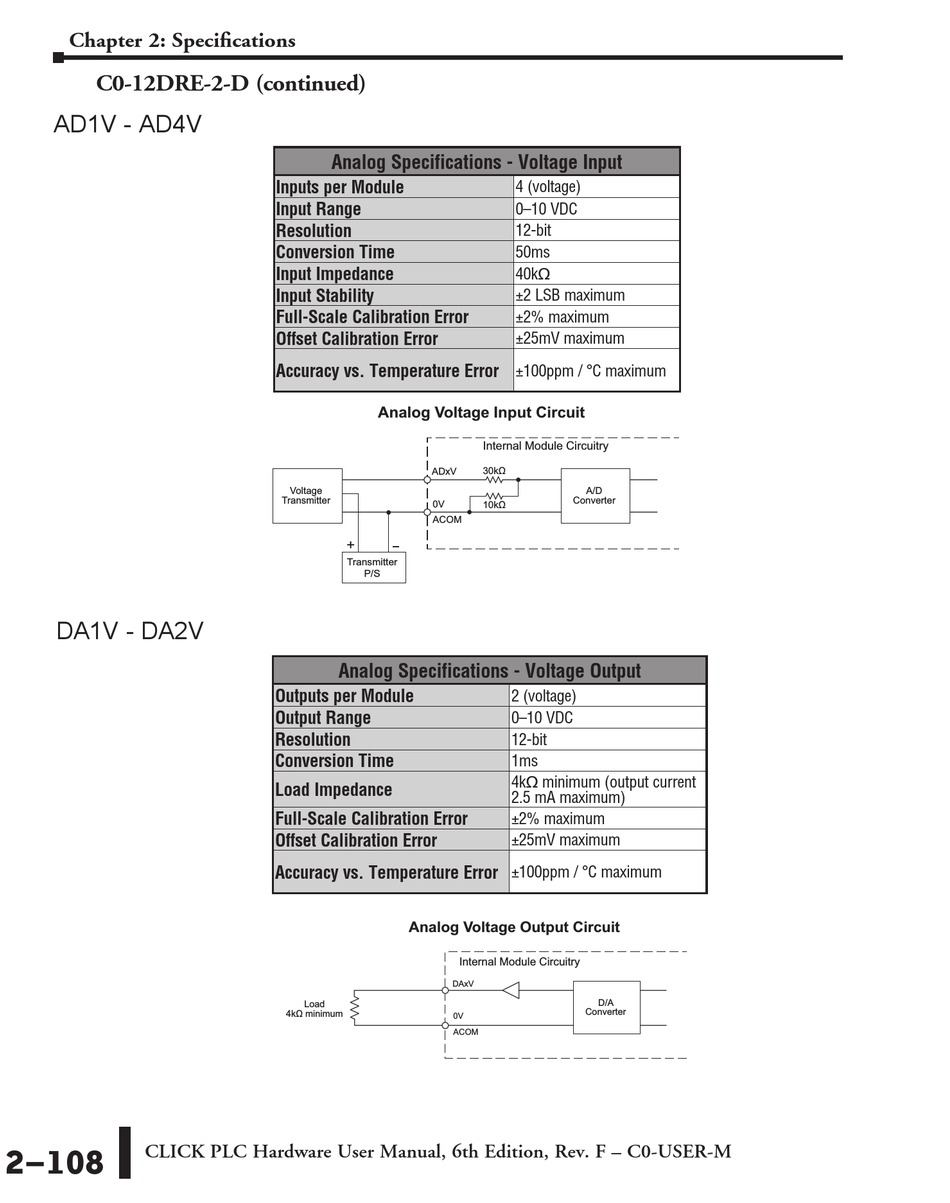

Chapter 2: Specifications
C0-12DRE-2-D (continued)
AD1V - AD4V
DA1V - DA2V
2–108
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
Analog Specifications - Voltage Input
Inputs per Module
Input Range
Resolution
Conversion Time
Input Impedance
Input Stability
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature Error
Analog Voltage Input Circuit
ADxV
Voltage
Transmitter
0V
ACOM
+
Transmitter
P/S
Analog Specifications - Voltage Output
Outputs per Module
Output Range
Resolution
Conversion Time
Load Impedance
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature Error
Analog Voltage Output Circuit
DAxV
Load
4k minimum
0V
ACOM
4 (voltage)
0–10 VDC
12-bit
50ms
40kq
±2 LSB maximum
±2% maximum
±25mV maximum
±100ppm / °C maximum
Internal Module Circuitry
30k
A/D
Converter
10k
2 (voltage)
0–10 VDC
12-bit
1ms
4kq minimum (output current
2.5 mA maximum)
±2% maximum
±25mV maximum
±100ppm / °C maximum
Internal Module Circuitry
D/A
Converter
