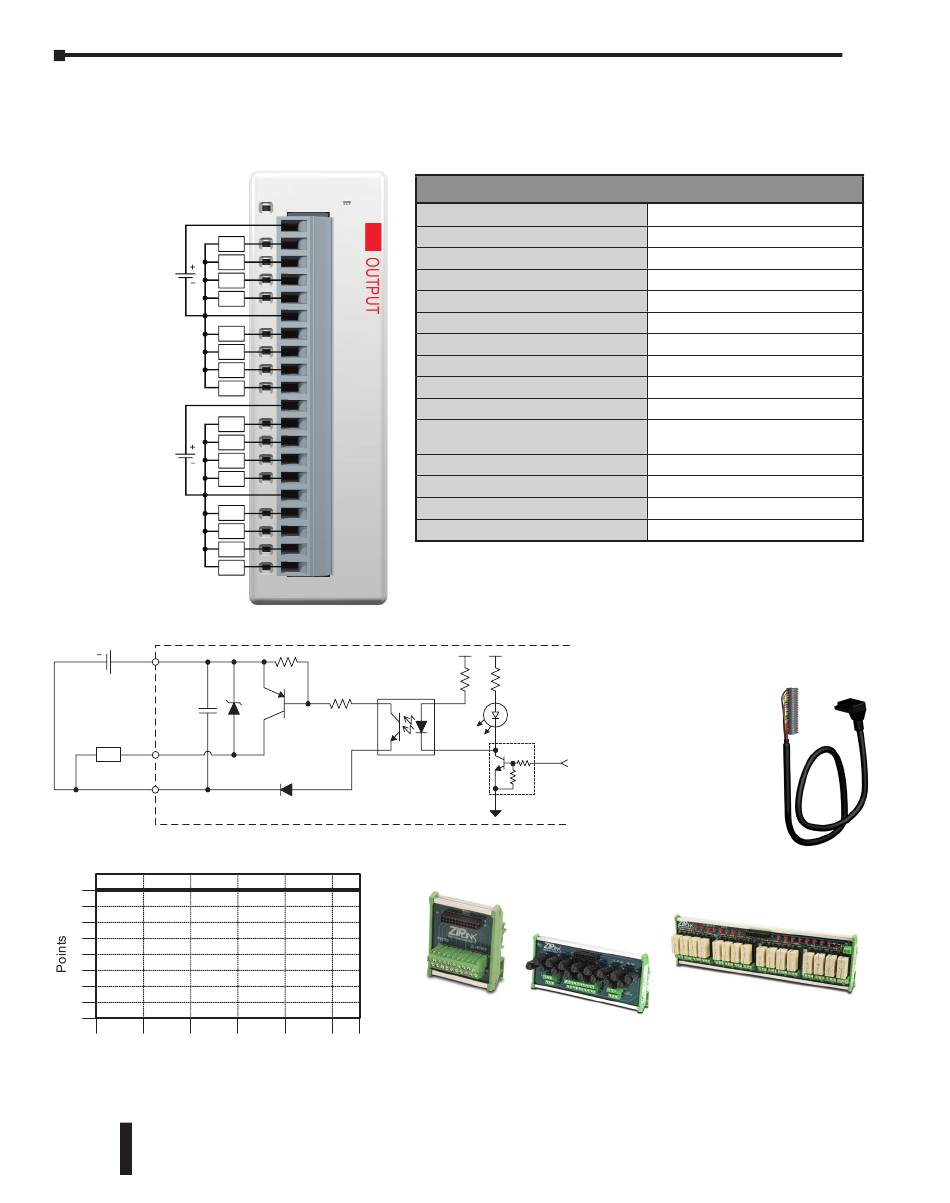

C0-16TD2 – 16-Point Sourcing Output Module
16-pt 12–24 VDC current sourcing output module, 2 commons, isolated, 0.1 A/pt, removable
terminal block included.
Wiring Diagram
12 - 24VDC
12 - 24VDC
12-24 VDC
+ +V
OUTPUT
L
COM
* Zener Diode Power Dissipation: 200 mW
Output Module Temperature Derating Chart
16
12
8
4
0
0 10 20
32 50 68
Surrounding Temperature (°C/°F)
2–122
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
C0-16TD2 C0-16TD2
PWR PWR
12-24V 12-24V 0.1A 0.1A
V1
L
1
L 2
3
L
4
L
C1
5
L
6
L
7
L
8
L
V2
9
L
10
L
11
L
12
L
C2
13
L
14
L
15
L
16
L
Equivalent Output Circuit
Internal Module Circuitry
Optical Isolator
*
30 40 50 55 °C
85 104 122 131 °F
Output Specifications
Outputs per Module
Operating Voltage Range
Output Voltage Range
Maximum Output Current
Minimum Output Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Bus Power Required (24VDC)
Terminal Block Replacement
Weight
20-pin connector cable
ZL-C0-CBL20 (0.5 m length)
ZL-C0-CBL20-1 (1.0 m length)
ZL-C0-CBL20-2 (2.0 m length)
ZL-RTB20 20-pin
ZL-RFU20
feed-through
fuse module
connector module
16 (Source)
12–24VDC
9.6–30.0 VDC
0.1 A/point , 0.8 A/common
0.2 mA
0.1 mA @ 30.0 VDC
0.6 VDC @ 0.1 A
150mA for 10ms
< 0.5 ms
< 0.5 ms
Logic Side (16 points, red LED)
Power Indicator (green LED)
2 (8 points/common) Isolated
Max. 80mA (All Outputs On)
ADC p/n C0-16TB
3.2 oz (90g)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
ZL-RRL16-24-2 relay module
Note: 10A/Point (DC)
8A/Point (AC)
(Replaceable relays)
