Summary of Contents for AutomationDirect C0-USER-M

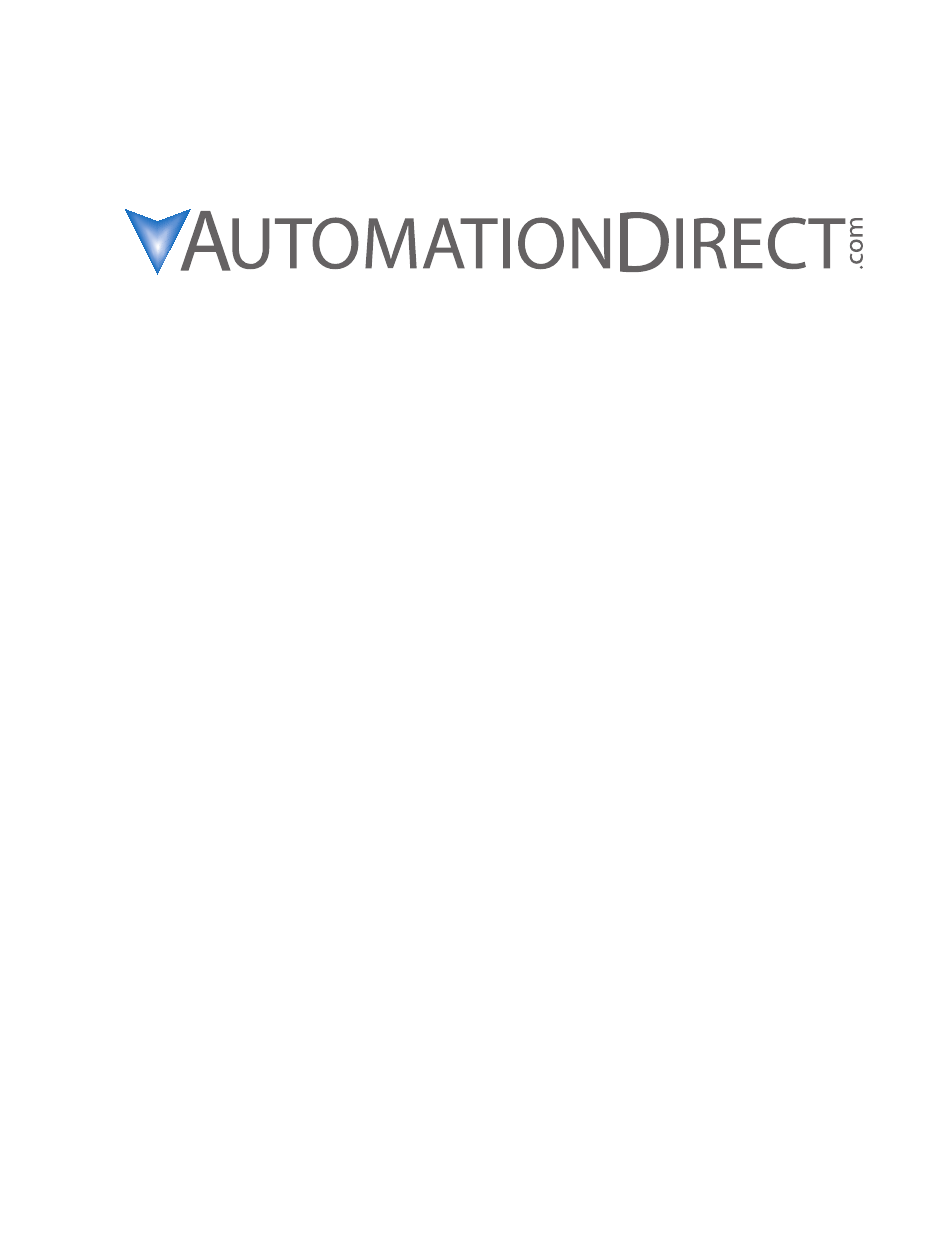

  • Page 1 Manual Number: C0-USER-M...
  • Page 2 This publication may contain references to products produced and/or offered by other companies. The product and company names may be trademarked and are the sole property of their respective owners. AutomationDirect disclaims any proprietary interest in the marks and names of others.
  • Page 3 770-844-4200 en Estados Unidos. Esta publicación está basada en la información disponible al momento de impresión. En Automationdirect. com nos esforzamos constantemente para mejorar nuestros productos y servicios, así que nos reservamos el derecho de hacer cambios al producto y/o a las publicaciones en cualquier momento sin notificación y sin...
  • Page 4 Nulle partie de ce manuel ne doit être copiée, reproduite ou transmise de quelque façon que ce soit sans le consentement préalable écrit de la société Automationdirect.com ® Incorporated. AutomationDirect conserve les droits exclusifs à l’égard de tous les renseignements contenus dans le présent document.
  • Page 5 CLICK PLC User Manual Please include the Manual Number and the Manual Issue, both shown below, when communicating with Technical Support regarding this publication. Manual Number: C0-USER-M Issue: 6th Edition, Rev. F Issue Date: 9/2019 Publication History Issue Date Description of Changes...

  • Page 6: Table Of Contents

    able of onTenTs Chapter 1 - Getting Started Introduction ......................1–2 Conventions Used ..................... 1–3 Before you begin...................... 1–4 Step 1: Install Programming Software..............1–5 Step 2: Launch Programming Software ..............1–6 Step 3: Create a Project .................... 1–8 Step 4: Compile and Save Project ................
  • Page 7 Power Budgeting ..................... 2–23 What is Power Budgeting? ..................2–23 Power Budget Calculation ..................2–24 Power Budget Example ..................2–25 Power Budgeting using the CLICK Programming Software ........2–25 CLICK PLC Hardware User Manual, 6th Edition, Rev. E – C0-USER-M...
  • Page 8 C0-11DD2E-D – 8 DC Input/6 Sourcing DC Output Micro PLC ......2–69 C0-11DRE-D – 8 DC Input/6 Relay Output Micro PLC ..........2–71 C0-11ARE-D – 8 AC Input/6 Relay Output Micro PLC ..........2–73 CLICK PLC Hardware User Manual, 6th Edition, Rev. E – C0-USER-M...
  • Page 9 2 Analog Voltage Output Micro PLC ..............2–105 C0-12ARE-2-D – 4 AC Input (Sink/Source) /4 Relay Output; ....... 2–108 4 Analog Voltage Input 2 Analog Voltage Output Micro PLC ..............2–108 CLICK PLC Hardware User Manual, 6th Edition, Rev. E – C0-USER-M...
  • Page 10 C0-4AD2DA-2 – 4-Channel Analog Voltage Input and 2-Channel Analog Voltage Output Module (continued) ................. 2–142 Power Supply Specifications ................. 2–143 C0-00AC Power Supply ..................2–143 C0-01AC Power Supply ..................2–143 PSP24-DC12-1 DC-DC Converter ................. 2–143 Accessories ......................2–144 CLICK PLC Hardware User Manual, 6th Edition, Rev. E – C0-USER-M...
  • Page 11 Fuse Protection ....................... 3–19 Planning the I/O Wiring Routes ................3–20 Wiring I/O Modules ....................3–21 ZIPLink Wiring System Compatibility Matrix for CLICK PLCs ........3–22 I/O Wiring Checklist ....................3–25 CLICK PLC Hardware User Manual, 6th Edition, Rev. E – C0-USER-M...
  • Page 12 Port 2 (RS-232) – Modbus RTU or ASCII ..............4–10 Port 3 (RS-485 – Modbus RTU or ASCII) ............... 4–11 W-1: Com Port 1 & 2 (RS-232) Wiring ..............4–12 W-2: Com Port 1 (Ethernet) Wiring ................ 4–17 CLICK PLC Hardware User Manual, 6th Edition, Rev. E – C0-USER-M...
  • Page 13 Power Supply Troubleshooting ................. 6–5 The input voltage measures less than 20VDC ............6–5 The input voltage measures greater than 28VDC ............. 6–5 How to check the power budget ................6–5 viii CLICK PLC Hardware User Manual, 6th Edition, Rev. E – C0-USER-M...
  • Page 14 How to Check the I/O Status..................6–8 Replacement of I/O modules ..................6–9 Troubleshooting Electrical Noise Problems ............6–10 Electrical Noise Problems ..................6–10 Reducing Electrical Noise..................6–10 Error Codes ......................6–11 CLICK PLC Hardware User Manual, 6th Edition, Rev. E – C0-USER-M...
  • Page 15 hapter hapter hapter ettinG tarted In This Chapter... Introduction ......................1–2 Conventions Used ..................... 1–3 Before you begin...................... 1–4 Step 1: Install Programming Software..............1–5 Step 2: Launch Programming Software ..............1–6 Step 3: Create a Project .................... 1–8 Step 4: Compile and Save Project ................

  • Page 16: Chapter 1: Getting Started

    The CLICK Programming Software, C0-PGMSW, can be downloaded free from the AutomationDirect web site (link shown below under Technical Support). Both this Hardware User Manual, C0-USER-M, and the Software Installation Guide are free as a download. The CLICK Programming Software includes searchable online help topics covering all aspects of the software and instruction set.

  • Page 17: Conventions Used

    Getting Started! In This Chapter... Introduction ................1-2 Purpose of this Manual ..............1-2 ..............1-2 About Getting Started! ..........1-2 Supplemental Manuals and Other Help ................1-2 Technical Support Conventions Used ..............1-3 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–3...

  • Page 18: Before You Begin

    CD-ROM or Free download @ http://support.automationdirect.com/ Screwdriver products/clickplcs.html TW-SD-MSL-2 PC Programming Cable D2-DSCBL AC Power Cord Wire Strippers Hookup Wire DN-WS PC requires RS-232 port. Not available from ADC. 1–4 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 19: Step 1: Install Programming Software

    You can install the USB driver either before or after the software is installed. Install USB Driver Button NOTE: For additional details, see the CLICK Software Installation Guide, C0-PGMSW-SIG, included in the ZIP file. (file name: Click_ software_installation.pdf) CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–5...

  • Page 20: Step 2: Launch Programming Software

    Double click the desktop CLICK icon or, from the PC’s Start menu, slide the mouse pointer through the menus (Start > All Programs > AutomationDirect > CLICK Ver 2.20 > CLICK Programming Software) and click the CLICK Programming Software selection or, simply click the icon on the Quick Launch bar.
  • Page 21 Click on the “Start a new project” graphic in the Startup dialog box. The Select a CPU Module window opens. Select from the list on the left for the CLICK PLC unit that you will use for the ladder logic example that follows. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–7...

  • Page 22: Step 3: Create A Project

    A normally open contact labeled C1 will be placed in the beginning of Rung The Box Cursor will move to the next available location. Proceed to the next page to continue construction of Rung #1. 1–8 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 23 There is now a parallel path around the C1 contact that was first entered as shown here. Proceed to the next page to continue construction of Rung #1. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–9...
  • Page 24 NOTE: Lines to form parallel paths in the ladder logic can also be created with the use of the cursor keys in conjunction with the CTRL key on the PC’s keyboard. Proceed to the next page to continue construction of Rung #1. 1–10 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 25 Leave the Delay Setting at ON Delay Timer and the Current Value Option set for the first selection. Click OK. A timer labeled T1 will be placed at the end of Rung #1. Proceed to the next page to enter Rung #2. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–11...
  • Page 26 Finally, place the Box Cursor on the NOP coil at the far right of Rung #3. Click and drag an END from the Instruction List into this location. An END instruction indicates the last part of the main ladder logic program. You have created your first project! 1–12 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 27 CLICK PLC unit. It becomes active when the T1 NO Contact in this rung becomes enabled. END: This is the END of the ladder logic scan, and causes the scan to start at the beginning. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–13...

  • Page 28: Step 4: Compile And Save Project

    Enter the File Name for your project in the Save As dialog box. You can also browse to the folder that you want the project saved under. Click Save. 1–14 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 29: Step 5: Apply Power

    CLICK PLC unit. Wire the 24 VDC output from a CLICK power supply, or a properly sized and rated 24 VDC power supply such as AutomationDirect’s RHINO series, to the bottom terminal block (See Chapter 2: Specifications for power supply specifications.) EITHER Using a CLICK 24 VDC Power Supply.

  • Page 30: Step 6: Establish Pc To Plc Communications

    Ethernet Standard PLC Standard PLC Analog PLC Ethernet Analog PLC NOTE: Port 2 (RS-232) setup can be changed by the customer. We recommend using Port 1 for Programming. 1–16 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 31 Using an RS-232 port for Programming EITHER If a USB port is available on the PC, then use an AutomationDirect USB to RS232 PC to Panel Programming Cable Assembly (P/N - EA-MG-PGM-CBL) to connect between the USB port on the PC and the RJ12 connector on the PLC’s Port 1.
  • Page 32 If the RX1 is not blinking, it means the CLICK PLC unit is not receiving any data from the programming software. Check to make sure you have selected the correct PC COM Port, and also check the cable connections. 1–18 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 33 Detail... button next to the COM Port drop down list to identify it. The screen to the right shows the Koyo USB-Serial Com Port device assigned to COM3. Select it and click OK. Proceed to page 1-24 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–19...
  • Page 34 CLICK Programming Software to the CLICK PLC. From the PLC drop down menu, select Connect as shown to the right, or click on the Connect icon located on the PLC Toolbar. 1–20 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 35 PC is located in by applying the AND operation between the IP Address and the Subnet Mask. Example: IP Address = 10.11.0.48 Subnet Mask = 255.255.0.0 Subnet = 10.11.0.0 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–21...
  • Page 36 Your PC and the CLICK PLC locate in the same subnet now. Click the Connect button on the bottom to connect the CLICK programming software to the CLICK PLC. 1–22 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 37 For the Getting Started exercise, click the radio button for the “Don’t read the project from the PLC” and click OK. Proceed to the next step which will allow the created project to be written into the CPU memory. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–23...

  • Page 38: Step 7: Write Project Into Plc

    The Writing... progress window will open to allow verification that the Project is being written to the CPU. When finished, a Transfer Completed message will be displayed. Click OK to continue. 1–24 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 39: Step 8: Place Plc In Run Mode

    Run mode and executing your ladder logic program. NOTE: The PLC Modes dialog box can also be accessed by clicking on the Connection status (Offline/Run/ Stop) indicator button that is located on the toolbar. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–25...

  • Page 40: Step 9: Test Project Using Data View Monitor

    Double click the ON button in the New Value column. The Current Value of the C1 bit changes from OFF to ON. Go to Step 10: “Y001 Output On?” 1–26 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 41: Step 10: Y001 Output On

    PLC, and then run and test the project. There are additional instructions available for the CLICK PLC. Please refer to the programming software online help topics for details on these instructions. Again, thank you very much for using the CLICK PLC system. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–27...

  • Page 42: Additional Training Resources

    CLICK PLC. From the Automationdirect.com home page, select (a) “Video Tutorials”. When the page opens select (b) How To box. Select (c) “Programmable Controllers” on the top, lefthand topic bar for Video Filter list.
  • Page 43 Interconnecting Automation Online Training Courses - http://clickplctraining.com/ Interconnecting Automation offers inexpensive subscription-based online training, including CLICK PLC training. Also, a CLICK PLC Trainer is available from this web site. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 1–29...
  • Page 44 hapter hapter hapter pecificationS In This Chapter... Overview of PLC System ................... 2–2 PLC Units ........................2–3 I/O Modules ......................2–10 PLC Numbering System ..................2–15 PLC Operation ......................2–19 Power Budgeting ..................... 2–23 General Specifications ..................... 2–26 PLC Unit Specifications .................... 2–27 Basic PLC Unit Specifications ..................

  • Page 45: Overview Of Plc System

    CLICK PLC hardware configuration. Please refer to the Power Budgeting section later in this chapter for details on choosing the correct size power supply. 2–2 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 46: Plc Units

    Discrete Input Type Discrete Output Type External Power C0-00DD1-D 6 DC (sink) C0-00DD2-D 8 DC (sink/source) 6 DC (source) 24VDC (required for all PLC units) C0-00DR-D 6 Relay C0-00AR-D 8 AC 2–3 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 47: Standard Plc Units

    Discrete Input Type Discrete Output Type External Power C0-01DD1-D 6 DC (sink) C0-01DD2-D 8 DC (sink/source) 6 DC (source) 24VDC (required for all PLC units) C0-01DR-D 6 Relay C0-01AR-D 8 AC 2–4 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 48: Analog Plc Units

    NOTE: There is a dedicated terminal for each voltage or current type, but you must also select the voltage or current type in the CLICK programming software. See the Analog I/O Configuration section in Chapter 3. 2–5 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 49: Ethernet Basic Plc Units

    Discrete Input Type Discrete Output Type External Power C0-10DD1E-D 6 DC (sink) 8 DC (sink/source) 24VDC C0-10DD2E-D 6 DC (source) 4 points High-Speed (required for all C0-10DRE-D PLC units) 6 Relay C0-10ARE-D 8 AC 2–6 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 50: Ethernet Standard Plc Units

    Discrete Input Type Discrete Output Type External Power C0-11DD1E-D 6 DC (sink) 8 DC (sink/source) 24VDC C0-11DD2E-D 6 DC (source) 8 points High-Speed (required for all C0-11DRE-D PLC units) 6 Relay C0-11ARE-D 8 AC 2–7 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 51: Ethernet Analog Plc Units

    These four PLC units require that you select I/O as voltage or current type in the CLICK programming software. See the Analog I/O Configuration section in Chapter 3. 2–8 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 52: Communication Ports

    SRAM for three years. Use part number D2-BAT-1 as the replacement battery. Refer to the PLC Unit Specifications section later in this chapter for more PLC information. 2–9 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 53: I/O Modules

    C0-08ND3-1 8 DC (Sink/Source) 3.3–5 VDC C0-16ND3 16 DC (Sink/Source) 24VDC C0-08NE3 8 AC/DC (Sink/Source) 24 VAC/VDC C0-16NE3 16 AC/DC (Sink/Source) 24 VAC/VDC C0-08NA 8 AC 100–120 VAC 2–10 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 54 C0-16CDD2 24VDC source) (source) 0.1 A 4 DC (sink/ 6.25–24VDC, 1A C0-08CDR 12–24VDC 4 (relay) 6–240 VAC, 1A source) 250V〜 50-60Hz 5-27V 0.1A 12-24V 0.1A C0-08CDR C0-16CDD1 C0-16CDD2 2–11 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 55 4 channel, current C0-4AD2DA-1 sourcing (4–20 mA), 24VDC (0–20 mA), 13-bit 12-bit 4 channel, voltage 4 channel, voltage C0-4AD2DA-2 24VDC (0–10 V), 13-bit (0–10 V), 12-bit C0-4AD2DA-1 C0-4AD2DA-2 2–12 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 56: Power Supply

    NOTE: It is not mandatory to use one of the above CLICK power supplies for the CLICK PLC system. A properly-sized and rated 24VDC power supply, such as some of those offered by Automationdirect.com, can also be used to power a CLICK PLC system.

  • Page 57: Programming Software

    • The PLC module Firmware can be updated from the programming software within 2 minutes. PC Requirements Check our online webstore for current operating system requirements: http://www.automationdirect.com 2–14 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 58: Data Types

    ASCII code $00 to $FF ASCII Code (The ASCII Code data type requires the ‘$’ before the value.) NOTE: The CLICK PLC does not support Octal or BCD numbering systems (data types). 2–15 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 59: Memory Types

    Register functions. The Text data registers, represented by the “TXT” symbol, are used to Text Text store and manipulate ASCII text data. 2–16 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 60 In the example, data register DS1 is called a Pointer. Only a DS memory type can be used as a pointer. As mentioned before, the use of the [square brackets] around DS1 in the data register reference DD[DS1] is how the Pointer Addressing is designated. 2–17 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 61: I/O Numbering System

    CLICK programming software. From the Setup pulldown menu, select System Configuration; otherwise, from the Navigation window select the Function tab, and under PLC configuration, double click on System Configuration. 2–18 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 62: Plc Operation

    PLC is forced into Stop mode and the outputs turn off. Report error , set flag register , turn on LED Fatal error Force CPU into STOP mode 2–19 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 63: Plc Operating Modes

    WARNING: Only authorized personnel fully familiar with all aspects of the application should make changes to the ladder logic program. Make sure you thoroughly consider the impact of any changes to minimize the risk of personal injury or damage to equipment. 2–20 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 64: Read Inputs

    Bit override: This is a more forceful type of bit manipulation. When bit override is enabled, you can actually override the current status of a bit in the image register. This change will remain intact until you remove the override. 2–21 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 65: Update System Control (Sc) Relays And System Data (Sd) Registers

    The default value of the watchdog timer is 200ms and can be adjusted between 5–10,000 ms. Refer to the online help available from the CLICK Programming Software, C0-PGMSW, for additional information in regards to the Watchdog Timer. 2–22 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 66: Power Budgeting

    CLICK PLC system. Refer to the following pages which includes tables listing the CLICK PLC and I/O module current requirements, plus a power budgeting example. 2–23 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 67: Power Budget Calculation

    Analog Output Modules C0-12DD1E-D C0-04DA-1 C0-12DD2E-D C0-04DA-2 C0-12DRE-D Analog Combo I/O Modules C0-12ARE-D C0-4AD2DA-1 C0-12DD1E-1-D C0-4AD2DA-2 C0-12DD2E-1-D C0-12DRE-1-D C-more Micro-Graphic Panel (Monochrome only) C0-12ARE-1-D All p/n C0-12DD1E-2-D C0-12DD2E-2-D C0-12DRE-2-D C0-12ARE-2-D 2–24 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 68: Power Budget Example

    If you exceed the maximum allowable power consumption, the power budget row fills in red. Power budget row turns red if maximum allowable power consumption is exceeded for the power supply selected. 2–25 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 69: General Specifications

    EN61000-4-8 (Power frequency magnetic field immunity) RFI: No interference measured at 150MHz and 450MHz (5w/15cm) Emissions EN55011:1998 Class A Agency Approvals UL508 (File No. E157382, E316037); CE (EN61131-2) Other RoHS 2–26 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 70: Plc Unit Specifications

    ADC p/n C0-16TB Communication Port & Terminal ADC p/n C0-3TB ADC p/n C0-3TB Block Replacement 24VDC Power Terminal Block ADC p/n C0-4TB ADC p/n C0-4TB ADC p/n C0-4TB Replacement 2–27 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 71 Calendar/Clock I/O Terminal Block Replacement ADC p/n C0-16TB Communication Port & Terminal ADC p/n C0-3TB ADC p/n C0-3TB Block Replacement 24VDC Power Terminal Block ADC p/n C0-4TB Replacement 2–28 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 72: Plc Led Status Indicators

    Self Diagnostic Blink Warning No Error OUTPUT LEDs (Red) PORT2 Output True RS-485 PORT3 TX & RX LED (Green) Output False On Comm Port Data Active No Communication 2–29 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 73 100MBIT LED (Orange) On The Comm Port is sending data. Communicating at 100Mbps The Comm Port is not sending data. Communicating at 10Mbps or disconnected from the network 2–30 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 74 Disconnected from the network TX & RX LED (Green) On Com Port Data Active 100MBIT LED (Orange) No Communication Communicating at 100Mbps Communicating at 10Mbps or disconnected from the network 2–31 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 75: Memory Map

    Output Register YD0 – YD8 Timer Register Integer TD1 – TD500 Counter Register Integer2 CTD1 – CTD250 System Data Register Integer SD1 – SD1000 Text Text TXT1 – TXT1000 2–32 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 76 Specify alarms for two ranges of PV deviation Deviation Alarm from the setpoint value Detect when PV exceeds a rate of change limit PV Rate of Change you specify 2–33 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 77 Ethernet Standard v2.00 v2.40 v2.50 C0-11DRE-D C0-11ARE-D C0-12DD1E-D C0-12DD2E-D v2.30 C0-12DRE-D C0-12ARE-D C0-12DD1E-1-D C0-12DD2E-1-D v2.30 Ethernet Analog v2.20 v2.40 v2.50 C0-12DRE-1-D C0-12ARE-1-D C0-12DD1E-2-D C0-12DD2E-2-D v2.30 C0-12DRE-2-D C0-12ARE-2-D 2–34 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 78: Basic Plc Unit Specifications

    Optical Isolator INPUT X1-X4 Typical Inputs 24 VDC To X2-X4 commons Optical Isolator INPUT X5-X8 Typical 55 °C 24 VDC 131 °F Surrounding Air Temperature (°C/°F) To X6-X8 commons 2–35 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 79 Optical Isolator OUTPUT Y5-Y6 ZL-RTB20 5 - 27 VDC 20-pin feed-through connector module Note: C3 & C4 are not internally connected. * Zener Diode Power Dissipation: 200 mW 2–36 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 80: C0-00Dd2-D - 8 Dc Input/6 Sourcing Dc Output Micro Plc

    C0-00DD2-D Temperature Derating Chart Typical 24 VDC Inputs To X2-X4 commons Optical Isolator INPUT X5-X8 Typical 55 °C 24 VDC 131 °F Surrounding Air Temperature (°C/°F) To X6-X8 commons 2–37 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 81 ZL-C0-CBL20 (0.5 m length) OUTPUT Y2-Y4 ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) 24 VDC Optical Isolator OUTPUT Y5-Y6 ZL-RTB20 20-pin feed-through *Zener Diode Power Dissipation: 200 mW connector module 2–38 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 82: C0-00Dr-D - 8 Dc Input/6 Relay Output Micro Plc

    24 VDC To X2-X4 commons Optical Isolator INPUT X5-X8 Typical 55 °C 131 °F 24 VDC Surrounding Air Temperature (°C/°F) * Use every other input. To X6-X8 commons 2–39 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 83 20-pin connector cable ZL-C0-CBL20 (0.5 m length) To Y6 common ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) * Varistor Joule Rating: 20 J ZL-RTB20 20-pin feed-through connector module 2–40 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 84: C0-00Ar-D - 8 Ac Input/6 Relay Output Micro Plc

    INPUT Optical Isolator X1-X4 Typical 100-120 VAC To X2-X4 commons 55 °C 131 °F Surrounding Air Temperature (°C/°F) INPUT Optical Isolator X5-X8 Typical 100-120 VAC To X6-X8 commons 2–41 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 85 To Y6 common 20-pin connector cable ZL-C0-CBL20 (0.5 m length) * Varistor Joule Rating: 20 J ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) ZL-RTB20 20-pin feed-through connector module 2–42 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 86: Standard Plc Unit Specifications

    24 VDC To X2-X4 commons Optical Isolator INPUT X5-X8 55 °C Typical 131 °F Surrounding Air Temperature (°C/°F) 24 VDC * Use every other input. To X6-X8 commons 2–43 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 87: C0-01Dd1-D - 8 Dc Input/6 Sinking Dc Output Micro Plc (Continued)

    Optical Isolator OUTPUT ZL-RTB20 Y5-Y6 20-pin feed-through 5 - 27 VDC connector module Note: C3 & C4 are not internally connected. * Zener Diode Power Dissipation: 200 mW 2–44 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 88: C0-01Dd2-D - 8 Dc Input/6 Sourcing Dc Output Micro Plc

    Optical Isolator Inputs INPUT X1-X4 Typical 24 VDC To X2-X4 commons 55 °C Optical Isolator INPUT 131 °F X5-X8 Surrounding Air Temperature (°C/°F) Typical 24 VDC To X6-X8 commons 2–45 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 89 ZL-C0-CBL20 (0.5 m length) ZL-C0-CBL20-1 (1.0 m length) OUTPUT Y2-Y4 ZL-C0-CBL20-2 (2.0 m length) 24 VDC Optical Isolator OUTPUT Y5-Y6 ZL-RTB20 20-pin feed-through *Zener Diode Power Dissipation: 200 mW connector module 2–46 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 90: C0-01Dr-D - 8 Dc Input/6 Relay Output Micro Plc

    24 VDC To X2-X4 commons Optical Isolator INPUT X5-X8 Typical 55 °C 131 °F 24 VDC Surrounding Air Temperature (°C/°F) * Use every other input. To X6-X8 commons 2–47 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 91 20-pin connector cable ZL-C0-CBL20 (0.5 m length) ZL-C0-CBL20-1 (1.0 m length) To Y6 common ZL-C0-CBL20-2 (2.0 m length) * Varistor Joule Rating: 20 J ZL-RTB20 20-pin feed-through connector module 2–48 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 92: C0-01Ar-D - 8 Ac Input/6 Relay Output Micro Plc

    INPUT Optical Isolator X1-X4 Typical 100-120 VAC To X2-X4 commons 55 °C 131 °F Surrounding Air Temperature (°C/°F) INPUT Optical Isolator X5-X8 Typical 100-120 VAC To X6-X8 commons 2–49 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 93 To Y6 common 20-pin connector cable ZL-C0-CBL20 (0.5 m length) * Varistor Joule Rating: 20 J ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) ZL-RTB20 20-pin feed-through connector module 2–50 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 94: Analog Plc Unit Specifications

    I/O. NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–51 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 95 Logic Side (4 points, red LED) Outputs Commons 1 (4 points/common) External DC Power 20–28 VDC Maximum @ 60mA Required (all points on) 55 °C 131 °F Surrounding Air Temperature (°C/°F) 2–52 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 96 Analog Current Output Circuit Analog Voltage Output Circuit Internal Module Circuitry Internal Module Circuitry DAxI DAxV Load Load Converter Converter 2k minimum ACOM typical ACOM Transmitter P/S 18-30VDC 2–53 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 97: Analog In/2 Analog Out Micro Plc

    I/O. NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–54 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 98 ON to OFF Response Y2-4: < 0.5 ms Status Indicators Logic Side (4 points, red LED) Outputs Commons 1 (4 points/common) 55 °C 131 °F Surrounding Air Temperature (°C/°F) 2–55 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 99 Analog Current Output Circuit Analog Voltage Output Circuit Internal Module Circuitry Internal Module Circuitry DAxI DAxV Load Load Converter ACOM Converter typical 2k minimum ACOM Transmitter P/S 18-30VDC 2–56 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 100: C0-02Dr-D - 4 Dc Input/4 Relay Output; 2 Analog In/2 Analog Out Micro Plc

    200,000 cycles connection cables and modules for the Analog PLCs ON to OFF = 1 cycle (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–57 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 101 Status Indicators Logic Side (4 points, red LED) Commons per Module 1 (4 points/common) Fuse None 55 °C 131 °F Surrounding Air Temperature (°C/°F) * Use every other output. 2–58 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 102 Analog Current Output Circuit Analog Voltage Output Circuit Internal Module Circuitry Internal Module Circuitry DAxI DAxV Load Load Converter typical ACOM Converter 2k minimum ACOM Transmitter P/S 18-30VDC 2–59 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 103: Ethernet Basic Plc Unit Specifications

    24 VDC To X2-X4 commons Optical Isolator INPUT X5-X8 Typical 55 °C 131 °F 24 VDC Surrounding Air Temperature (°C/°F) * Use every other input. To X6-X8 commons 2–60 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 104 Optical Isolator OUTPUT Y5-Y6 ZL-RTB20 5 - 27 VDC 20-pin feed-through connector module Note: C3 & C4 are not internally connected. * Zener Diode Power Dissipation: 200 mW 2–61 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 105: C0-10Dd2E-D - 8 Dc Input/6 Sourcing Dc Output Micro Plc

    24 VDC Inputs To X2-X4 commons Optical Isolator INPUT X5-X8 Typical 55 °C 24 VDC 131 °F Surrounding Air Temperature (°C/°F) * Use every other input. To X6-X8 commons 2–62 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 106 ZL-C0-CBL20 (0.5 m length) OUTPUT Y2-Y4 ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) 24 VDC Optical Isolator OUTPUT Y5-Y6 ZL-RTB20 20-pin feed-through *Zener Diode Power Dissipation: 200 mW connector module 2–63 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 107: C0-10Dre-D - 8 Dc Input/6 Relay Output Micro Plc

    24 VDC To X2-X4 commons Optical Isolator INPUT X5-X8 Typical 55 °C 131 °F Surrounding Air Temperature (°C/°F) 24 VDC * Use every other input. To X6-X8 commons 2–64 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 108 ZL-C0-CBL20 (0.5 m length) commons ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) 6-27 VDC 6-240 VAC OUTPUT Y5-Y6 Typical To Y6 common ZL-RTB20 20-pin feed-through connector module 2–65 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 109: C0-10Are-D - 8 Ac Input/6 Relay Output Micro Plc

    100-120 VAC To X2-X4 commons 55 °C 131 °F Surrounding Air Temperature (°C/°F) INPUT Optical Isolator * Use every other input. X5-X8 Typical 100-120 VAC To X6-X8 commons 2–66 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 110 ZL-C0-CBL20 (0.5 m length) ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) 6-27 VDC 6-240 VAC OUTPUT Y5-Y6 Typical To Y6 common ZL-RTB20 20-pin feed-through connector module 2–67 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 111: Ethernet Standard Plc Unit Specifications

    24 VDC To X2-X4 commons Optical Isolator INPUT 55 °C X5-X8 Typical 131 °F Surrounding Air Temperature (°C/°F) 24 VDC * Use every other input. To X6-X8 commons 2–68 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 112 ZL-RTB20 Y5-Y6 20-pin feed-through 5 - 27 VDC High response connector module circuit Note: C3 & C4 are not internally connected. * Zener Diode Power Dissipation: 200 mW 2–69 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 113: C0-11Dd2E-D - 8 Dc Input/6 Sourcing Dc Output Micro Plc

    24 VDC To X2-X4 commons Optical Isolator 55 °C INPUT X5-X8 131 °F Typical Surrounding Air Temperature (°C/°F) * Use every other input. 24 VDC To X6-X8 commons 2–70 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 114 ZL-C0-CBL20-1 (1.0 m length) OUTPUT Y2-Y4 ZL-C0-CBL20-2 (2.0 m length) 24 VDC Optical Isolator High response circuit OUTPUT Y5-Y6 ZL-RTB20 20-pin feed-through *Zener Diode Power Dissipation: 200 mW connector module 2–71 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 115: C0-11Dre-D - 8 Dc Input/6 Relay Output Micro Plc

    24 VDC To X2-X4 commons Optical Isolator INPUT X5-X8 Typical 55 °C 131 °F Surrounding Air Temperature (°C/°F) 24 VDC * Use every other input. To X6-X8 commons 2–72 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 116 6-240 VAC OUTPUT Y5-Y6 Typical 20-pin connector cable ZL-C0-CBL20 (0.5 m length) To Y6 ZL-C0-CBL20-1 (1.0 m length) common ZL-C0-CBL20-2 (2.0 m length) ZL-RTB20 20-pin feed-through connector module 2–73 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 117: C0-11Are-D - 8 Ac Input/6 Relay Output Micro Plc

    100-120 VAC To X2-X4 commons 55 °C 131 °F INPUT Surrounding Air Temperature (°C/°F) Optical Isolator X5-X8 * Use every other input. Typical 100-120 VAC To X6-X8 commons 2–74 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 118 6-240 VAC OUTPUT Y5-Y6 Typical To Y6 common 20-pin connector cable ZL-C0-CBL20 (0.5 m length) ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) ZL-RTB20 20-pin feed-through connector module 2–75 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 119: Ethernet Analog Plc Unit Specifications

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–76 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 120 Logic Side (4 points, red LED) Outputs Commons 1 (4 points/common) External DC Power 20–28 VDC Maximum @ 60mA Required (All points ON) 55 °C 131 °F Ambient Air Temperature (°C/°F) 2–77 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 121 Analog Current Output Circuit Analog Voltage Output Circuit Internal Module Circuitry Internal Module Circuitry DAxI DAxV Load – Converter Load typical Converter 2k minimum ACOM ACOM Transmitter P/S 18-30 VDC 2–78 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 122: C0-12Dd2E-D - 4 Dc Input (Sink/Source)/4 Sourcing Dc Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–79 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 123 < 5μs ON to OFF Response < 5μs Outputs Status Indicators Logic Side (4 points, red LED) Commons 1 (4 points/common) 55 °C 131 °F Ambient Air Temperature (°C/°F) 2–80 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 124 Analog Voltage Output Circuit Analog Current Output Circuit Internal Module Circuitry Internal Module Circuitry DAxV DAxI Load Converter 2k minimum Load – Converter ACOM typical ACOM Transmitter P/S 18-30 VDC 2–81 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 125: C0-12Dre-D - 4 Dc Input (Sink/Source)/4 Relay Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–82 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 126 30VDC, 1A Solenoid 50,000 cycles 55 °C 120VAC, 1A Resistive 500,000 cycles 131 °F 120VAC, 1A Solenoid 200,000 cycles Ambient Air Temperature (°C/°F) ON to OFF = 1 cycle 2–83 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 127 ±100ppm / °C maximum Error Internal Module Circuitry DAxV Analog Current Output Circuit Load Converter 2k minimum Internal Module Circuitry ACOM DAxI Load – Converter typical ACOM Transmitter P/S 18-30 VDC 2–84 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 128: C0-12Are-D - 4 Ac Input/4 Relay Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–85 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 129 30VDC, 1A Solenoid 50,000 cycles 55 °C 120VAC, 1A Resistive 500,000 cycles 131 °F Ambient Air Temperature (°C/°F) 120VAC, 1A Solenoid 200,000 cycles ON to OFF = 1 cycle 2–86 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 130 ±100ppm / °C maximum Error Internal Module Circuitry Analog Current Output Circuit DAxV Internal Module Circuitry Load Converter 2k minimum DAxI ACOM Load – Converter typical ACOM Transmitter P/S 18-30 VDC 2–87 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 131: C0-12Dd1E-1-D - 4 Dc Input (Sink/Source)/4 Sinking Dc Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–88 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 132 Logic Side (4 points, red LED) Outputs Commons 1 (4 points/common) External DC Power 20–28 VDC Maximum @ 60mA Required (All points on) 55 °C 131 °F Surrounding Air Temperature (°C/°F) 2–89 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 133 Accuracy vs. Temperature Error ±120ppm / °C maximum External DC Power Required 21.6–26.4 VDC Analog Current Output Circuit Internal Module Circuitry DA+V – Converter 24VDC DAxI External Load – ACOM 2–90 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 134: C0-12Dd2E-1-D - 4 Dc Input (Sink/Source)/4 Sourcing Dc Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–91 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 135 C0-12DD2E-1-D Temperature Derating Chart ON to OFF Response < 5μs Status Indicators Logic side (4 points, red LED) Outputs Commons 1 (4 points/common) 55 °C 131 °F Surrounding Air Temperature (°C/°F) 2–92 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 136 Accuracy vs. Temperature Error ±120ppm / °C maximum External DC Power Required 21.6–26.4 VDC Analog Current Output Circuit Internal Module Circuitry DA+V – Converter 24VDC DAxI External Load – ACOM 2–93 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 137: C0-12Dre-1-D - 4 Dc Input (Sink/Source)/4 Relay Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–94 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 138 30VDC, 1A Solenoid 50,000 cycles 120VAC, 1A Resistive 500,000 cycles 55 °C 120VAC, 1A Solenoid 200,000 cycles 131 °F Ambient Air Temperature (°C/°F) ON to OFF = 1 cycle 2–95 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 139 Accuracy vs. Temperature Error ±120ppm / °C maximum External DC Power Required 21.6–26.4 VDC Analog Current Output Circuit Internal Module Circuitry DA+V – Converter 24VDC DAxI External Load – ACOM 2–96 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 140: C0-12Are-1-D - 4 Ac Input/4 Relay Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–97 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 141 30VDC, 1A Solenoid 50,000 cycles 55 °C 120VAC, 1A Resistive 500,000 cycles 131 °F Ambient Air Temperature (°C/°F) 120VAC, 1A Solenoid 200,000 cycles ON to OFF = 1 cycle 2–98 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 142 ±120ppm / °C maximum External DC Power Supply Required 21.6 –26.4 VDC Analog Current Output Circuit Internal Module Circuitry DA+V – Converter 24VDC DAxI External – Load ACOM 2–99 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 143: C0-12Dd1E-2-D - 4 Dc Input (Sink/Source)/4 Sinking Dc Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–100 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 144 Logic Side (4 points, red LED) Outputs Commons 1 (4 points/common) External DC Power 20–28 VDC Maximum @ 60mA Required (All points on) 55 °C 131 °F Surrounding Air Temperature (°C/°F) 2–101 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 145 ±2% maximum Offset Calibration Error ±25mV maximum Accuracy vs. Temperature ±100ppm / °C maximum Error Analog Voltage Output Circuit Internal Module Circuitry DAxV Load Converter 4k minimum ACOM 2–102 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 146: C0-12Dd2E-2-D - 4 Dc Input (Sink/Source)/4 Sourcing Dc Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–103 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 147 < 5μs ON to OFF Response < 5μs Outputs Status Indicators Logic Side (4 points, red LED) Commons 1 (4 points/common) 55 °C 131 °F Surrounding Air Temperature (°C/°F) 2–104 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 148 ±2% maximum Offset Calibration Error ±25mV maximum Accuracy vs. Temperature Error ±100ppm / °C maximum Analog Voltage Output Circuit Internal Module Circuitry DAxV Load Converter 4k minimum ACOM 2–105 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 149: C0-12Dre-2-D - 4 Dc Input (Sink/Source)/4 Relay Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–106 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 150 30VDC, 1A Solenoid 50,000 cycles 120VAC, 1A Resistive 500,000 cycles 55 °C 131 °F 120VAC, 1A Solenoid 200,000 cycles Ambient Air Temperature (°C/°F) ON to OFF = 1 cycle 2–107 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 151 ±2% maximum Offset Calibration Error ±25mV maximum Accuracy vs. Temperature Error ±100ppm / °C maximum Analog Voltage Output Circuit Internal Module Circuitry DAxV Load Converter 4k minimum ACOM 2–108 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 152: C0-12Are-2-D - 4 Ac Input (Sink/Source) /4 Relay Output

    NOTE: There are no ZIPLink pre-wired PLC connection cables and modules for the Ethernet Analog PLCs (cannot mix discrete I/O and analog I/O signals in a ZIPLink cable). 2–109 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 153 30VDC, 1A Solenoid 50,000 cycles 55 °C 120VAC, 1A Resistive 500,000 cycles 131 °F Ambient Air Temperature (°C/°F) 120VAC, 1A Solenoid 200,000 cycles ON to OFF = 1 cycle 2–110 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 154 ±2% maximum Offset Calibration Error ±25mV maximum Accuracy vs. Temperature ±100ppm / °C maximum Error Analog Voltage Output Circuit Internal Module Circuitry DAxV Load Converter 4k minimum ACOM 2–111 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 155: I/O Module Specifications

    When the LED is on, the I/O point is on. OUTPUT LEDs (Red) Output True Output False INPUT LEDs (Green) Input True Input False Input I/O Module Output I/O Module 2–112 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 156: C0-08Nd3 - 8-Point Sink/Source Dc Input Module

    ZL-C0-CBL11 (0.5 m length) Input Module Temperature Derating Chart ZL-C0-CBL11-1 (1.0 m length) ZL-C0-CBL11-2 (2.0 m length) ZL-RTB20 20-pin feed-through connector module 55 °C 131 °F Surrounding Temperature (°C/°F) 2–113 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 157: C0-08Nd3-1 - 8-Point Sink/Source Dc Input Module

    ZL-C0-CBL11 (0.5 m length) Input Module Temperature Derating Chart ZL-C0-CBL11-1 (1.0 m length) ZL-C0-CBL11-2 (2.0 m length) ZL-RTB20 20-pin feed-through connector module 55 °C 131 °F Surrounding Temperature (°C/°F) 2–114 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 158: C0-16Nd3 - 16-Point Sink/Source Dc Input Module

    ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) Input Module Temperature Derating Chart ZL-LTB16-24-1 ZL-RTB20 20-pin 55 °C sensor input feed-through 131 °F module connector module Surrounding Temperature (°C/°F) 2–115 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 159: C0-08Ne3 - 8-Point Sink/Source Ac/Dc Input Module

    ZL-C0-CBL11 (0.5 m length) ZL-C0-CBL11-1 (1.0 m length) ZL-C0-CBL11-2 (2.0 m length) Input Module Temperature Derating Chart ZL-RTB20 20-pin feed-through connector module 55 °C 131 °F Surrounding Temperature (°C/°F) 2–116 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 160: C0-16Ne3 - 16-Point Sink/Source Ac/Dc Input Module

    ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) Input Module Temperature Derating Chart ZL-LTB16-24-1 ZL-RTB20 20-pin sensor input feed-through 55 °C module connector module 131 °F Surrounding Temperature (°C/°F) 2–117 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 161: C0-08Na - 8-Point Ac Input Module

    ZL-C0-CBL11 (0.5 m length) ZL-C0-CBL11-1 (1.0 m length) ZL-C0-CBL11-2 (2.0 m length) Input Module Temperature Derating Chart ZL-RTB20 20-pin feed-through connector module 55 °C 131 °F Surrounding Temperature (°C/°F) 2–118 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 162: C0-08Td1 - 8-Point Sinking Dc Output Module

    * Zener Diode Power Dissipation: 200 mW ZL-C0-CBL11-2 (2.0 m length) Output Module Temperature Derating Chart ZL-RTB20 20-pin feed-through connector module 55 °C 131 °F Surrounding Temperature (°C/°F) 2–119 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 163: C0-08Td2 - 8-Point Sourcing Dc Output Module

    ZL-C0-CBL11 (0.5 m length) Output Module Temperature Derating Chart ZL-C0-CBL11-1 (1.0 m length) ZL-C0-CBL11-2 (2.0 m length) ZL-RTB20 20-pin feed-through connector module 55 °C 131 °F Surrounding Temperature (°C/°F) 2–120 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 164: C0-16Td1 - 16-Point Sinking Dc Output Module

    Output Module Temperature Derating Chart ZL-RRL16-24-1 relay module ZL-RTB20 20-pin ZL-RFU20 Note: 10A/Point (DC) feed-through 55 °C 8A/Point (AC) 131 °F fuse module connector module Surrounding Temperature (°C/°F) (Replaceable relays) 2–121 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 165: C0-16Td2 - 16-Point Sourcing Output Module

    ZL-C0-CBL20-2 (2.0 m length) ZL-RRL16-24-2 relay module ZL-RTB20 20-pin ZL-RFU20 Note: 10A/Point (DC) feed-through 55 °C 8A/Point (AC) fuse module connector module 131 °F (Replaceable relays) Surrounding Temperature (°C/°F) 2–122 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 166: C0-08Ta - 8-Point Ac Output Module

    ZL-C0-CBL11-2 (2.0 m length) Output Temperature Derating Chart 0.2 A/pt. 0.3 A/pt. ZL-RTB20 20-pin feed-through connector module 55 °C 131 °F Surrounding Air Temperature (°C/°F) Use every other output. 2–123 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 167: C0-04Trs - 4-Point Relay Output Module

    ZL-C0-CBL20-1 (1.0 m length) 131 °F connector module Surrounding Air Temperature (°C/°F) ZL-C0-CBL20-2 (2.0 m length) No derating when the load current is 5A or less for each output point. 2–124 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 168: C0-08Tr - 8-Point Relay Output Module

    ZL-C0-CBL11 (0.5 m length) ZL-C0-CBL11-1 (1.0 m length) ZL-C0-CBL11-2 (2.0 m length) ZL-RTB20 55 °C 131 °F 20-pin feed-through Surrounding Air Temperature (°C/°F) connector module * Use every other output. 2–125 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 169: C0-16Cdd1 - 8-Point Dc Input And 8-Point Dc Sinking Output Module

    PLC firmware version V1.40 or later. Equivalent Input Circuit Input Module Temperature Derating Chart Internal Module Circuitry Optical Isolator INPUT 24 VDC 55 °C 131 °F Surrounding Temperature (°C/°F) 2–126 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 170 Output Module Temperature Derating Chart 20-pin connector cable ZL-C0-CBL20 (0.5 m length) ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) 55 °C 131 °F Surrounding Temperature (°C/°F) 2–127 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 171: C0-16Cdd2 - 8-Point Dc Input And 8-Point Dc Sourcing Output Module

    NOTE: When using this module you must also use CLICK programming software and PLC firmware version V1.40 or later. Equivalent Input Circuit Input Module Temperature Derating Chart Internal Module Circuitry Optical Isolator INPUT 24 VDC 55 °C 131 °F Surrounding Temperature (°C/°F) 2–128 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 172 Output Module Temperature Derating Chart ZL-RTB20 20-pin feed-through connector module 20-pin connector cable ZL-C0-CBL20 (0.5 m length) ZL-C0-CBL20-1 (1.0 m length) ZL-C0-CBL20-2 (2.0 m length) 55 °C 131 °F Surrounding Temperature (°C/°F) 2–129 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 173: C0-08Cdr - 4-Point Dc Input And 4-Point Relay Output Module

    NOTE: When using this module you must also use CLICK programming software and PLC firmware version V1.40 or later. Equivalent Input Circuit Input Temperature Derating Chart Internal Module Circuitry Optical Isolator INPUT 12-24 VDC 55 °C 131 °F Surrounding Air Temperature (°C/°F) 2–130 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 174 11-pin connector cable Output Temperature Derating Chart ZL-C0-CBL11 (0.5 m length) ZL-C0-CBL11-1 (1.0 m length) ZL-C0-CBL11-2 (2.0 m length) 55 °C 131 °F Surrounding Air Temperature (°C/°F) 2–131 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 175: C0-04Ad-1 - 4-Channel Analog Current Input Module

    ZIPLink Pre-Wired PLC Connection Cables and Modules for CLICK PLC 11-pin connector cable ZL-C0-CBL11 (0.5 m length) ZL-RTB20 20-pin feed- ZL-C0-CBL11-1 (1.0 m length) through connector module ZL-C0-CBL11-2 (2.0 m length) 2–132 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 176: C0-04Ad-2 - 4-Channel Analog Voltage Input Module

    ZIPLink Pre-Wired PLC Connection Cables and Modules for CLICK PLC 11-pin connector cable ZL-C0-CBL11 (0.5 m length) ZL-RTB20 20-pin feed- ZL-C0-CBL11-1 (1.0 m length) through connector module ZL-C0-CBL11-2 (2.0 m length) 2–133 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 177: C0-04Rtd - 4-Channel Rtd Input Module

    RMS noise will be lower and stability will be improved. If there are any unused channels, make sure to select the correct number of channels that you actually use in the C0-04RTD Setting window. 2–134 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 178 Channels selected 4 sec 5 sec May take up to 13 sec 6 sec May take up to 18 sec 7 sec May take up to 24 sec 2–135 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 179: C0-04Thm - 4-Channel Thermocouple Input Module

    0 to 1.25 V If there are any unused channels, make sure to select the correct number of channels that you actually use in the C0-04THM Setting window. 2–136 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 180 NOTE: With grounded thermocouples, take precautions to prevent having a voltage potential between thermocouple tips. A voltage less than -1.3V or greater than +3.8V between tips will skew measurements. 2–137 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 181: C0-04Da-1 - 4-Channel Analog Current Output Module

    ZIPLink Pre-Wired PLC Connection Cables and Modules for CLICK PLC 11-pin connector cable ZL-C0-CBL11 (0.5 m length) ZL-C0-CBL11-1 (1.0 m length) ZL-RTB20 20-pin feed- ZL-C0-CBL11-2 (2.0 m length) through connector module 2–138 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 182: C0-04Da-2 - 4-Channel Analog Voltage Output Module

    ZL-C0-CBL11-1 (1.0 m length) 85mA Required ZL-C0-CBL11-2 (2.0 m length) Base Power Required (24VDC) 20mA Terminal Block Replacement ADC p/n C0-8TB Weight 2.9 oz (82g) ZL-RTB20 20-pin feed-through connector module 2–139 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 183: C0-4Ad2Da-1 - 4-Channel Analog Current Input And 2-Channel Analog Current Output Module

    Offset Calibration Error ±8 count maximum ZL-C0-CBL20-1 (1.0 m length) Maximum Crosstalk at DC, ZL-C0-CBL20-2 (2.0 m length) ±2 count maximum 50/60 Hz ZL-RTB20 20-pin feed-through connector module 2–140 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 184 All Channel Update Rate 20ms Max. Continuous Overload Outputs open circuit protected Type of Output Protection Electronically limited to 20mA or less Output Signal at Power Up or Power Down 2–141 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 185: C0-4Ad2Da-2 - 4-Channel Analog Voltage Input And 2-Channel Analog Voltage Output Module

    ZIPLink Pre-Wired PLC Connection Cables and Modules for CLICK PLC 20-pin connector cable ZL-C0-CBL20 (0.5 m length) ZL-C0-CBL20-1 (1.0 m length) ZL-RTB20 20-pin feed- ZL-C0-CBL20-2 (2.0 m length) through connector module 2–142 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 186: C0-4Ad2Da-2 - 4-Channel Analog Voltage Input And 2-Channel Analog Voltage Output Module (Continued)

    Outputs current limited to 40mA typical; continuous overloads on multiple outputs Max. Continuous Overload can damage module. Type of Output Protection 0.1 μF transient suppressor Output Signal at Power Up or Power Down 2–143 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 187: Power Supply Specifications

    8.4 VDC Undervoltage Shutdown 7.6 VDC Output Voltage Range 24–28 VDC (adjustable) Output Current 1.0 A Short Circuit Protection Current limited at 110% typical Weight 7.5 oz (213g) 2–144 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 188: Accessories

    C0-PGMSW – CLICK PLC Programming Software CD CLICK PLC programming software Ladder Logic Editor for Windows PCs, includes the manual as a pdf file. Free download available from AutomationDirect online Web store: www.automationdirect.com. Alternatively the programming software CD may be purchased and shipped from the AutomationDirect online Web store: www.
  • Page 189 Replacement terminal block for the 24VDC supply power to the PLC. Sold in packs of 2. D2-BAT-1 – Battery Replacement battery for Standard, Analog and Ethernet PLC units. 2–146 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 190 hapter hapter hapter nstallatIon and IrIng In This Chapter... Safety Guidelines ....................... 3–2 Introduction to the CLICK PLC Mechanical Design ..........3–5 Mounting Guidelines ....................3–11 Installing the CLICK PLC ..................3–16 Wiring Guidelines ....................3–18 I/O Wiring Checklist ....................3–25 System Wiring Strategies ..................

  • Page 191: Chapter 3: Installation And Wiring

    Local and State Agencies — many local governments and state governments have additional requirements above and beyond those described in the NEC Handbook. Check with your local Electrical Inspector or Fire Marshall office for information. 3–2 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 192: Three Levels Of Protection

    If the operator must open the guard to remove the part, you should also include a bypass switch that disconnects all system power any time the guard is opened. 3–3 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 193: Emergency Stop Circuits

    PLC is turned off. To minimize the risk of electrical shock, remove all field device power before you expose or remove PLC wiring. The connector is designed for easy removal by hand. 3–4 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 194: Introduction To The Click Plc Mechanical Design

    8 Discrete Input LED Status Points Indicators PORT1 Communication Ports 6 Discrete Output PORT2 Points RS-485 PORT3 Sliding Latch Power Terminal Removeable Screw Type Terminal Block N.C. Mounting 3–5 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 195: Component Locations On Analog Plc Units

    C4 4 4 C4 4 Y5 5 Y5 5 Y6 6 Y6 6 +V V Bottom v iew same for all PLC’s Sliding Latch Power Terminal rminal Mounting Mounting N.C. 3–6 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 196: Component Locations On Ethernet Plc Units

    RS-485 -485 5 485 5 DA1V 2 Analog PORT3 PORT3 PORT3 DA1 I Outputs DA2V DA2 I Sliding Latch Power Terminal Removeable Screw Type Terminal Block Mounting N.C. 3–7 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 197: Click I/O Modules

    Module Output Point Identifier Status Indicators Status Indicators Point Identifier (Red: ON) (Green: ON) Removable Terminal Block Removable Terminal Block Sliding Latch Mounting Tab Sliding Latch Mounting Tab 3–8 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 198: Click Power Supplies

    (for CLICK PLC, I/O or field device, etc.) 85–264 VAC Power Source Input Terminals The PSP24-DC12-1 DC-DC converter must be mounted Sliding Latch separately from the PLC. Mounting Tab 3–9 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 199: Battery Backup (Standard, Analog And Ethernet Plc Units)

    TIP: The CLICK PLC has a feature that indicates the pre-scheduled battery replacement date has passed. In the CLICK programming software, go to the pull-down menu: Setup > Battery backup Setup. 3–10 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 200: Mounting Guidelines

    3-17 for DIN rail and surface-mounting instructions. Power Supply Unit Dimensions mm [inches] NOTE: The dimensions for the C0-00AC and C0-01AC power supplies are the same. 3–11 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 201 Chapter 3: Installation and Wiring PLC Unit I/O Module Unit Dimensions mm [inches] 3–12 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 202 Maximum system: Power Supply + PLC + eight I/O modules. Follow the installation guidelines to allow for proper spacing from other components within an enclosure. 304.4 [11.98] C0-01AC 3–13 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 203: Enclosures

    The panel ground termination must be connected to ground. Minimum wire sizes, color coding, and general safety practices should comply with appropriate electrical codes and standards for your area. 3–14 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 204 Powerline Filter, for use with 120 VAC and 240 VAC, 1–5 Amps, is an excellent choice (locate at www.automationdirect.com), however, you can use a filter of your choice. The filter units install easily between the AC power source and the PLC.

  • Page 205: Installing The Click Plc

    2) Align the module pins and connection plug, and press the I/O module onto the right side of the PLC. 3) Slide the latch tabs backward to lock the modules together. 3–16 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 206: Mounting Click Plc System On Din Rail

    Extend the upper and lower retaining clips to the full out position. Mount using M4 screws in the center hole of the tabs. Upper Mouting Tab Lower Mouting Tab 3–17 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 207: Wiring Guidelines

    CLICK PLC. Do not apply power at this time. Observe all precautions stated earlier in this manual. CLICK PLC CLICK Power Supply 24VDC 24VDC 3–18 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 208: Fuse Protection

    PLC damage, but it will provide added protection. WARNING: The discrete inputs and outputs will be damaged if the signal exceeds the rated voltage. 3–19 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 209: Planning The I/O Wiring Routes

    8. Avoid running DC wiring in close proximity to AC wiring where possible. 9. Avoid creating sharp bends in the wires. 10. Install the recommended powerline filter to reduce power surges and EMI/RFI noise. 3–20 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 210: Wiring I/O Modules

    WARNING: For some modules, field device power may still be present on the terminal block even though the PLC system is turned off. To minimize the risk of electrical shock and equipment damage, check all field device power before you remove the connector. 3–21 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 211: Ziplink Wiring System Compatibility Matrix For Click Plcs

    C0-12ARE-1-D C0-12DD1E-2-D C0-12DD2E-2-D C0-12DRE-2-D C0-12ARE-2-D * Select the cable length by replacing the * with: Blank = 0.5 m, -1 = 1.0 m, or -2 = 2.0 m. 3–22 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 212 S506 and GMC electronic circuit protection for time-delay performance. Ideal for inductive circuits. To ensure proper operation, do not exceed the voltage and current rating of ZIPLink module. ZL-RFU20 = 2A per circuit. 3–23 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 213 C0-04DA-2 ZL-C0-CBL11* Feedthrough ZL-RTB20 C0-4AD2DA-1 ZL-C0-CBL20* C0-4AD2DA-2 ZL-C0-CBL20* * Select the cable length by replacing the * with: Blank = 0.5m, -1 = 1.0m, or -2 = 2.0m. 3–24 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 214: I/O Wiring Checklist

    Refer to our catalog for a complete line of DINnectors, DIN-rail mounted fuse blocks. 10. If using relay outputs with inductive loads, consider using surge suppressors (see section on surge suppression later in this chapter). 3–25 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 215: System Wiring Strategies

    NOTE: If you do not use one of the CLICK PLC power supplies C0-00AC and C0-01AC to provide 24VDC to the PLC module (and I/O modules), be sure the power supply you use has isolation with a transformer. 3–26 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 216: Powering I/O Circuits

    Output Module 24VDC 0VDC Logic Logic Logic Circuit Circuit Circuit Keep Isolation Input Output Input Output Circuit Circuit Circuit Circuit Isolation Boundary Load Load 24VDC Power Supply 0VDC 3–27 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 217: Sinking/Sourcing Concepts

    Sinking Output Input Output Load Input Output – – Common Common Sensing Switch Sourcing Input Sourcing Output Common Common Input Output Sensing – – Input Output Switch Load 3–28 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 218: I/O "Common Terminal" Concepts

    NOTE: In the circuit above, the current in the common path is equal to the sum of the energized channels. This is especially important in output circuits, where larger gauge wire is sometimes needed for the commons. 3–29 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 219: Dc Input Wiring Methods

    The output is connected to a field device load with a sourcing input. PLC DC Output Field Device Power => +DC Power Output Input (sinking) (sourcing) 20-28 VDC – Common Ground 3–30 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 220 . Then calculate the power P (in watts), pull-up pull-up in order to size R properly. pull-up input (turn–on) input input – 0.7 supply – pull-up input input supply pull-up pull-up 3–31 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 221: Relay Outputs - Wiring Methods

    Other relay modules have relays which are completely isolated from each other. In all cases, the module drives the relay coil when the corresponding output point is on. 3–32 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 222: Relay Outputs - Transient Suppression For Inductive Loads In A Control System

    PLC and other electronics in the area. This EMI can make an otherwise stable control system behave unpredictably at times. 3–33 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 223 Additional transient suppression should be used in both these examples. If you are unable to measure the transients generated by the connected loads of your control system, using additional transient suppression on all inductive loads would be the safest practice. 3–34 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 224 784-4C-SKT-1 socket module shown below. If an add-on flyback diode is not available for your inductive load, an easy way to add one is to use an AutomationDirect DN-D10DR-A diode terminal block, a 600VDC power diode mounted in a slim DIN rail housing.
  • Page 225 NOT conduct at the supply voltage, while allowing a safe margin. AutomationDirect’s ZL-TSD8-24 transorb module is a good choice for 24VDC circuits. It is a bank of 8 uni-directional 30V TVS diodes. Since they are uni-directional, be sure to observe the polarity during installation.

  • Page 226: Analog I/O Configuration

    Common for all analog inputs and outputs AD2 I ACOM RS-485 PORT3 DA1V DA1V Analog voltage output DA1 I DA2V DA1I Analog current output DA2 I DA2V Analog voltage output DA2I Analog current output 3–37 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 227 485 5 ACOM PORT3 PO O RT3 PO O RT3 DA1V– DA2V Analog voltage output DA1V TX X 3 DA2V RX X 3 ACOM Common for analog outputs ACOM 3–38 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 228: Terminal Block Wiring - Expansion Analog I/O Modules

    C0-04AD-1 0-20mA 0-20mA C0-04RTD C0-04THM CH1-CH4 Analog Terminals OV (all OV commons are connected internally) 24 VDC Input Power Terminal OV (all OV commons are connected internally) C0-04AD-1 3–39 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 229: Configuration In The Click Programming Software

    Connect the CLICK programming software to the Analog PLC unit, then open the CPU Built-in I/O Setup window as shown below. (Pull-down menu: Setup > CPU Built-in I/O Setup) Input and Output tabs 3–40 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 230: Analog I/O Modules

    PLC including the Analog I/O module, then open the System Configuration window as shown below (Pull-down menu: Setup > System Configuration). Click the ‘Config…’ button to open the configuration window to configure each analog I/O module. ‘Config’ buttons 3–41 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 231 For more detailed explanation about this configuration window, refer to the help topic by clicking the Help button on the bottom right corner. After configuring all the analog I/O modules, download the CLICK project into the CLICK PLC. 3–42 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 232: Analog I/O Monitoring

    (Pull-down menu: Monitor > System Monitor). You can switch the displayed values between the physical values and scaled values with the radio buttons below the respective graphic. 3–43 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 233: High-Speed Input Configuration

    Counters (Max.) C0-10DD1E-D C0-10DD2E-D Ethernet Basic C0-10DRE-D C0-10ARE-D C0-11DD1E-D C0-11DD2E-D Ethernet Standard C0-11DRE-D C0-11ARE-D C0-12DD1E-D C0-12DD2E-D C0-12DRE-D C0-12ARE-D C0-12DD1E-1-D C0-12DD2E-1-D Ethernet Analog C0-12DRE-1-D C0-12ARE-1-D C0-12DD1E-2-D C0-12DD2E-2-D C0-12DRE-2-D C0-12ARE-2-D 3–44 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 234 Quadrature (A and B with Z) Interval Measurement (ITV) Single Input Dual Inputs Optional Duration Measurement (DUR) Single Input Single Input Frequency Measurement (FRQ) Quadrature (A and B) 3–45 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...

  • Page 235: Wiring Examples High Speed Inputs

    Sinking Encoder (Open Coll Power OUT A OUT B OUT Z Sourcing Encoder Power OUT A OUT B OUT Z 3-Wire Sensors NPN Sensor (Sinking) PNP Sensor (Sourcing) 3–46 CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M...
  • Page 236 Chapter 4 - PLC Communications hapter hapter hapter PLC C ommuniCations In This Chapter... Introduction ....................... 4–2 PLC Communication Ports Specifications ..............4–3 LED Status Indicators ....................4–5 3 Steps to Using the CLICK PLC Communications ........... 4–7 Typical Communication Applications ................ 4–8 W-1: Com Port 1 &...

  • Page 237: Chapter 4 - Plc Communications

    PLC is the master, it is easily identified. It will be the PLC in the network with the Send and/or Receive instructions using the Modbus protocol in its ladder logic program. 4–2 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 238: Plc Communication Ports Specifications

    Station Address: 1 to 247 Data length: 8 bits (Modbus RTU) or 7, 8 8 bits bits ( ASCII) Stop bit: 1,2 Modbus Protocol: Modbus RTU (master/slave) or ASCII in/out 4–3 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 239 Station Address: 1 to 247 Data length: 8 bits (Modbus RTU) or 7, 8 8 bits bits ( ASCII) Stop bit: 1,2 Modbus Protocol: Modbus RTU (master/slave) or ASCII in/out 4–4 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 240: Led Status Indicators

    DirectLogic Devices That Do Not Work With CLICK PLCs The CLICK PLC does not support K-sequence protocol, so the following DirectLogic devices do not work with the CLICK PLC: DV-1000 D2-HPP D4-HPP-1 4–5 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 241 On The Comm Port is sending data. PORT3 The Comm Port is not sending data. RX2 and RX3 (Green) On The Comm Port is receiving data. The Comm Port is not receiving data. 4–6 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 242: Steps To Using The Click Plc Communications

    Example: To connect a barcode reader that sends ASCII data to Com Port 2: Refer to these three reference page sections. W-1 C-4 Barcode Reader Com Port 2 4–7 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 243: Typical Communication Applications

    C-more Micro DC power adapter, EA-MG-P1 or EA-MG-SP1, or another 24VDC power source. Color C-more Micro-Graphic panels must also be powered from a separate 24VDC source. 4–8 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 244: Port 1 (Ethernet) - Modbus Tcp

    W-2 C-2 Modbus TCP Server (Slave) Devices ViewMarq Display GS1 Drive SR55 Soft Starter Other Devices Supporting Another CLICK Modbus TCP Server Mode Ethernet PLC GS3 Drive W-2 C-2 4–9 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 245: Port 2 (Rs-232) - Modbus Rtu Or Ascii

    Devices that RECEIVE ASCII messages Other Devices Supporting Modbus RTU Other devices Slave Mode that can receive Serial Text ASCII data. Another CLICK PLC Display Serial Printer W-1 C-4 W-1 C-3 4–10 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 246: Port 3 (Rs-485 - Modbus Rtu Or Ascii)

    Devices that RECEIVE ASCII messages Supporting Modbus RTU Slave Mode Other devices that can receive Serial Text ASCII data. SOLO Temperature Another CLICK PLC Display Serial Printer Controller W-3 C-6 W-3 C-5 4–11 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 247: W-1: Com Port 1 & 2 (Rs-232) Wiring

    NOTE: Both Com ports can provide 5VDC; however, the 5VDC power can be used only for the C-more Micro-Graphic panel. AutomationDirect does not guarantee that the CLICK PLC will work correctly when any other device uses 5VDC from these Com ports. Please also remember these Com ports can provide enough power only for one C-more Micro-Graphic panel.
  • Page 248 D2-DSCBL 2. Connect to a USB port CLICK PLC PC to Panel Programming Cable Assembly (Includes serial & USB cables) EA-MG-PGM-CBL Serial Cable Cable USB to RS232 Converter 4–13 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 249 EA-2CBL (3m) or OP-2CBL (2m) if the panel receives 24VDC power from other source. C-more Micro-Graphic Panel (Monochrome models only) Port 1 DV-1000CBL serial cable Port 1 or 2 4–14 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 250 You can make your own cable. However, we offer two products that make your wiring much easier: 1. ZIPLink feed-through module and cable CLICK PLC ZL-RTB-RJ12 ZL-RJ12-CBL-2 2. ZIPLink pig-tail cable CLICK PLC Pigtail ZL-RJ12-CBL-2P 4–15 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 251 The recommended cables to connect the FA-ISOCON to other devices: • Belden 8103 for the RS-422 • Belden 9842 for 2-wire RS-485 • Belden 9843 for 4-wire RS-485 4–16 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 252: W-2: Com Port 1 (Ethernet) Wiring

    Case 1: Connect Com Port 1 to a device that supports the Modbus TCP protocol directly such as a PC. In this illustration an Ethernet PLC unit is connected directly to a PC. 4–17 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 253 NOTE: Com Port 1 can communicate with up to 3 clients (masters). If a client attempts to establish communication with Com Port 1 while it is communicating with 3 clients, the CLICK PLC unit replies with an error to the forth client. 4–18 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 254: W-3: Com Port 3 Wiring

    NOTE: The resistance of the termination resistors needs to match the impedance of the communication cable. NOTE: Use a repeater if connecting more than 32 slaves to Port 3. 4–19 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 255: C-1: Com Port 1 (Rs-232) Setup

    If you want to connect an external device to this com port, please make sure the external device can be a Modbus RTU master and that the com port setup matches the following setup. 4–20 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 256: C-2: Com Port 1 (Ethernet) Setup

    NOTE: The communication port settings are saved in the project file. The project must be transferred to the CLICK PLC in order for any port setting changes to take effect. 4–21 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 257: C-3: Com Port 2 Setup (Modbus Rtu)

    TIP : The communication port settings are saved in the project file. The project must be transferred to the CLICK PLC in order for any port setting changes to take effect. 4–22 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 258: C-4: Com Port 2 Setup (Ascii)

    TIP: The communication port settings are saved in the project file. The project must be transferred to the CLICK PLC in order for any port setting changes to take effect. 4–23 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 259: C-5: Com Port 3 Setup (Modbus Rtu)

    TIP: The communication port settings are saved in the project file. The project must be transferred to the CLICK PLC in order for any port setting changes to take effect. 4–24 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 260: C-6: Com Port 3 Setup (Ascii)

    TIP: The communication port settings are saved in the project file. The project must be transferred to the CLICK PLC in order for any port setting changes to take effect. 4–25 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 261: P-1: Modbus Slave (Server) Programming

    CLICK PLC. Here is an example program. This contact is on when com port 1 has not received any message from the Modbus master for 60 seconds. Reset the outputs Y001 to Y006. 4–26 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 262 Address Picker. These are the Modbus addresses. The numbers in the parenthesis indicate which function codes can be used for each memory address. Check the option Display Modbus Address. 4–27 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 263 Slave Device Failure requested to switch to RUN mode. When the PLC mode switch is in RUN position, the MODBUS master requested to switch to the Firmware Update mode. 4–28 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 264: P-2: Modbus Master Programming (Modbus Rtu)

    Com Port is used by another Receive and/or Send instruction in the ladder program. You cannot change the Protocol setup until you delete those instructions. Grayed out 4–29 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 265 * Errors that will cause SC101 or SC103 error flag to turn on: • Parity Error • Frame Error • Time Out • CRC Error • Modbus Exception Response 4–30 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 266 MODBUS Slave #1 MODBUS Slave #2 1. Execute the Receive instruction. 3. Execute the Receive instruction. 2. Execute the Send instruction. 4. Execute the Send instruction. Continue this cycle. 4–31 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 267 Chapter 4: PLC Communications Example Program: Interlocking with Two Slaves (Continued) 4–32 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 268 Chapter 4: PLC Communications Example Program: Interlocking with Two Slaves (Continued) 4–33 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 269: P-3: Modbus Client (Modbus Tcp) Programming

    Double click Receive or Send in the instruction List to use it in the ladder program. Select Com Port 1 that you are going to use. Select Com Port 1 4–34 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 270 ON when Port 1 obtains an IP address. SC94 _Port_1_Link_Flag ON when Port 1 is connected to an Ethernet netwrok. SC95 _Port_1_100MBIT_Flag ON when Port 1 is communicating at 100Mbps. 4–35 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 271 NO (Normally Open) contact instruction to check if the com port is ready to receive or send data. When Com Port 1 is ready, the Receive instruction is executed. This also applies to the Send instruction. 4–36 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 272 2. Execute the Send instruction. 2. Execute the Send instruction. Continue these steps. Continue these steps. NOTE: Port 1 can establish the connection with up to 4 servers at the same time. 4–37 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 273 Chapter 4: PLC Communications Example Program: Interlocking with a Server (Continued) 4–38 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 274 Chapter 4: PLC Communications Example Program: Interlocking with a Server (Continued) 4–39 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 275: P-4: Ascii Receive Programming

    Com Port is used by another Receive and/or Send instruction in the ladder program. You cannot change the Protocol setup until you delete those instructions. Grayed out 4–40 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 276 ASCII message and it includes the termination character (CR = Carriage Return in this example), C2 is turned on and the received ASCII message is copied to TXT1 address. 4–41 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 277 ASCII characters into the equivalent numerical data and copies into data register DF1. Use Pack Mode TXT1 TXT2 TXT3 Converted & Copied TXT4 1.23 TXT5 TXT6 4–42 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 278: P-5: Ascii Send Programming

    Com Port is used by another Receive and/or Send instruction the ladder program. You cannot change the Protocol setup until you delete those instructions. Grayed out 4–43 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 279 With the following example program, when status of C1 changes from OFF to ON, the Send instruction sends ASCII message ‘ABC’ and the termination character (CR = Carriage Return in this example). C2 is turned on when sending the ASCII message is completed. 4–44 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 280 hapter hapter hapter aintenance In This Chapter... PLC Maintenance ....................... 5–2...

  • Page 281: Chapter 5: Maintenance

    Check the input voltage for the I/O module terminal blocks. Refer to Chapter 2: Specifications for the voltage specifications of the various I/O modules. 5–2 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 282: Check Physical Condition

    Check whether or not the scan time is normal, and if the minimum and maximum scan times are reasonable. Refer to Chapter 2: Specifications for information regarding scan times. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 5–3...
  • Page 283 hapter hapter hapter roubleshooTing In This Chapter... Troubleshooting Direction ..................6–2 PLC unit Troubleshooting ..................6–3 Power Supply Troubleshooting ................. 6–5 I/O Module Troubleshooting ..................6–6 Troubleshooting Electrical Noise Problems ............6–10 Error Codes ......................6–11...

  • Page 284: Chapter 6 - Troubleshooting

    Use this section to figure out where to start when troubleshooting CLICK PLC problems. Problem with Problem with I/O modules? PLC unit? Go to Go to Problem with Page 6-6 Page 6-3 power supply? Go to Page 6-5 6–2 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 285: Plc Unit Troubleshooting

    RUN LED being OFF). Cycle power to the PLC. If the PLC unit starts up in Run mode, with toggle switch in STOP position, it means the PLC unit does not recognize the toggle switch position correctly. Please replace the PLC unit. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 6–3...

  • Page 286: Led Indicators

    The application program can use system control bits to detect warnings, and even take the system to an orderly shutdown or switch the PLC to STOP Mode if desired. Examples of warnings: • Lost SRAM data • Battery low voltage 6–4 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 287: Power Supply Troubleshooting

    • The System Configuration Setup window opens, and displays the Power Budget in milliamps (mA) required by the PLC system. The PLC power supply must be capable of providing more current than the Power Budget amount. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 6–5...

  • Page 288: I/O Module Troubleshooting

    Connect the programming software and check the X bit related to the input point that is on. not work as expected. (See “How to Check the I/O Status” later in this section for instructions.) If the X bit is off, replace the input module. 6–6 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 289: Output Module Troubleshooting

    • From the software menus, select Setup and System Configuration... • The System Configuration Setup window opens, and displays all of the CLICK module types the PLC recognizes that are connected in the PLC system. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 6–7...

  • Page 290: How To Check The I/O Status

    • Edit, Write All New Values, or double click individual output Write icon. • Externally turn inputs on or off, then check their status in data view. Inputs cannot be forced from Data View. 6–8 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 291: Replacement Of I/O Modules

    As a precaution, you may want to check power supplies or other devices connected to the failed module before replacing it. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 6–9...

  • Page 292: Troubleshooting Electrical Noise Problems

    DC sources should be well-grounded, good quality power supplies. • Separate input wiring from output wiring. Never run low- voltage I/O wiring close to high voltage wiring. 6–10 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...

  • Page 293: Error Codes

    Check’ option if you want to use the current configuration. * The Status Flags are turned ON when the related errors occur. Error code table continued on next page. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 6–11...

  • Page 294: Error Codes

    (Pull-down menu: Setup > Battery Backup Setup) * The SC bits are turned ON when the related errors occur. Error code table continued on next page. 6–12 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 295 Replace the sensor if it is broken. open circuit. * The Status Flags are turned ON when the related errors occur. Error code table continued on next page. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 6–13...
  • Page 296 Replace the sensor if it is broken. open circuit. * The Status Flags are turned ON when the related errors occur. Error code table continued on next page. 6–14 CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M...
  • Page 297 Warning I/O8 position senses burnout or Burnout Replace the sensor if it is broken. open circuit. * The Status Flags are turned ON when the related errors occur. CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M 6–15...

This manual is also suitable for:

C0-01ac

Table of Contents
