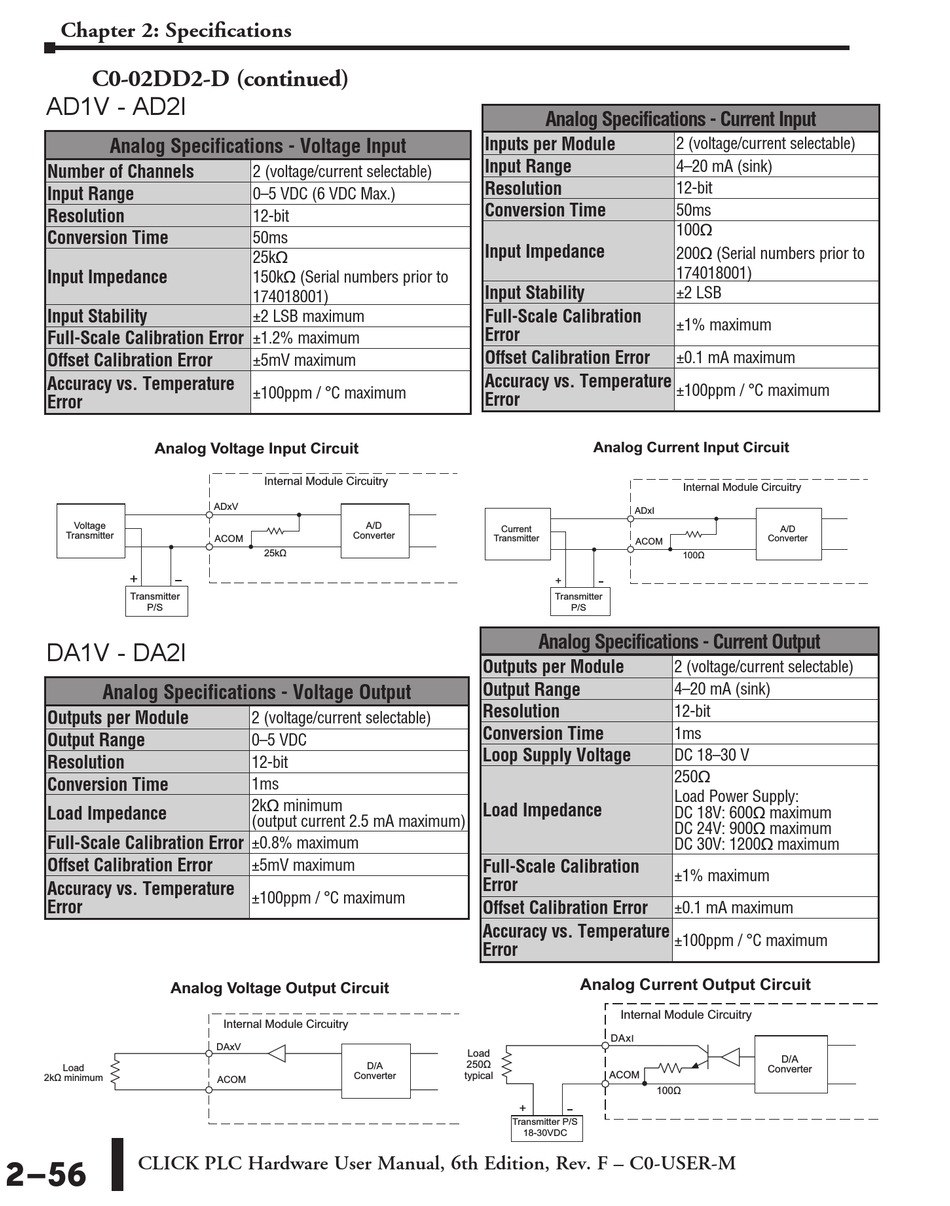

AutomationDirect C0-USER-M Manual page 99

Chapter 2: Specifications
C0-02DD2-D (continued)
AD1V - AD2I
Analog Specifications - Voltage Input
Number of Channels
Input Range
Resolution
Conversion Time
Input Impedance
Input Stability
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Voltage Input Circuit
Voltage
Transmitter
+
Transmitter
P/S
DA1V - DA2I
Analog Specifications - Voltage Output
Outputs per Module
Output Range
Resolution
Conversion Time
Load Impedance
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Voltage Output Circuit
Load
2k minimum
2–56
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
2 (voltage/current selectable)
0–5 VDC (6 VDC Max.)
12-bit
50ms
25kq
150kq (Serial numbers prior to
174018001)
±2 LSB maximum
±1.2% maximum
±5mV maximum
±100ppm / °C maximum
Internal Module Circuitry
ADxV
A/D
Converter
ACOM
25k
2 (voltage/current selectable)
0–5 VDC
12-bit
1ms
2kq minimum
(output current 2.5 mA maximum)
±0.8% maximum
±5mV maximum
±100ppm / °C maximum
Internal Module Circuitry
DAxV
D/A
Converter
ACOM
Analog Specifications - Current Input
Inputs per Module
Input Range
Resolution
Conversion Time
Input Impedance
Input Stability
Full-Scale Calibration
Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Current Input Circuit
ADxI
Current
Transmitter
ACOM
+
Transmitter
P/S
Analog Specifications - Current Output
Outputs per Module
Output Range
Resolution
Conversion Time
Loop Supply Voltage
Load Impedance
Full-Scale Calibration
Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Current Output Circuit
Internal Module Circuitry
DAxI
Load
250
ACOM
typical
+
Transmitter P/S
18-30VDC
2 (voltage/current selectable)
4–20 mA (sink)
12-bit
50ms
100q
200q (Serial numbers prior to
174018001)
±2 LSB
±1% maximum
±0.1 mA maximum
±100ppm / °C maximum
Internal Module Circuitry
A/D
Converter
100
2 (voltage/current selectable)
4–20 mA (sink)
12-bit
1ms
DC 18–30 V
250q
Load Power Supply:
DC 18V: 600q maximum
DC 24V: 900q maximum
DC 30V: 1200q maximum
±1% maximum
±0.1 mA maximum
±100ppm / °C maximum
D/A
Converter
100
