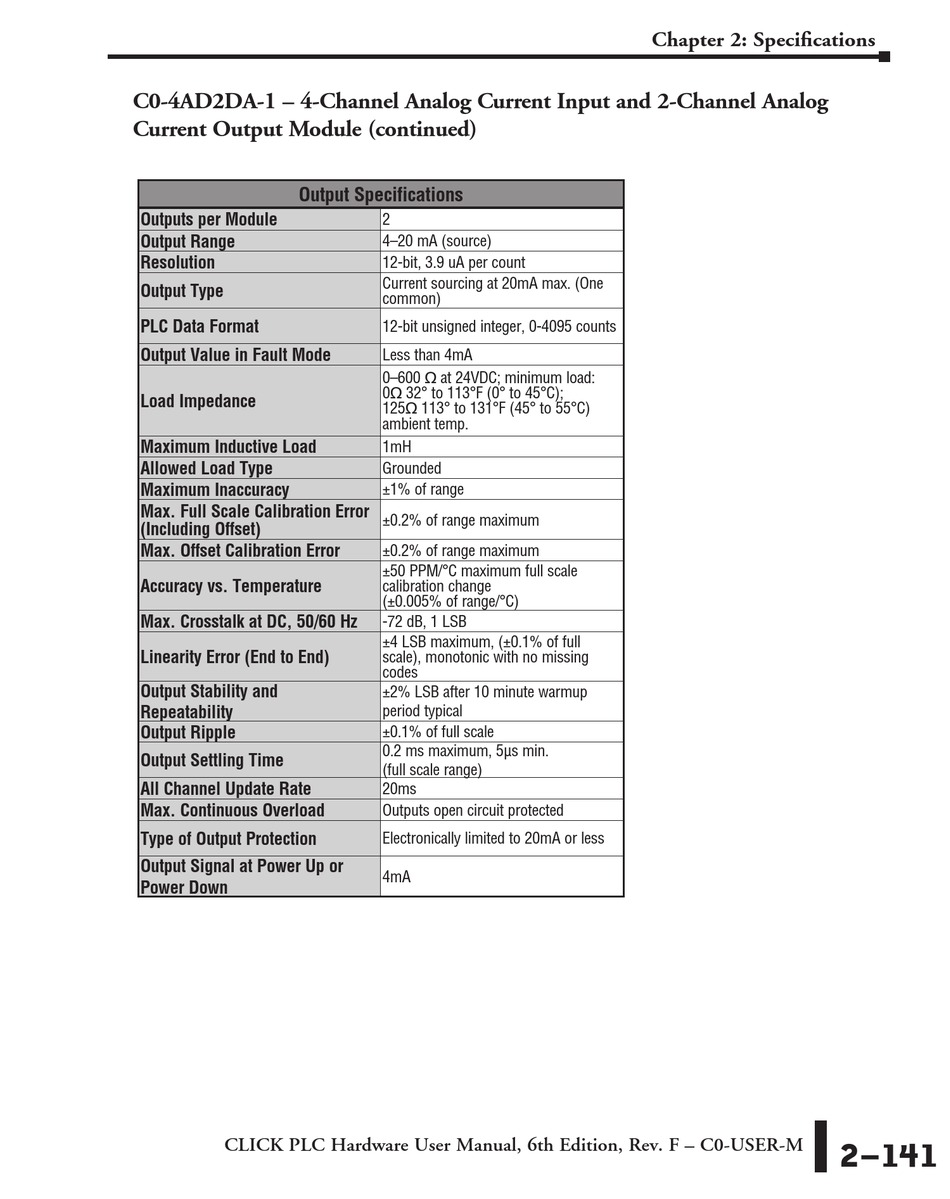

C0-4AD2DA-1 – 4-Channel Analog Current Input and 2-Channel Analog
Current Output Module (continued)
Output Specifications
Outputs per Module
Output Range
Resolution
Output Type
PLC Data Format
Output Value in Fault Mode
Load Impedance
Maximum Inductive Load
Allowed Load Type
Maximum Inaccuracy
Max. Full Scale Calibration Error
(Including Offset)
Max. Offset Calibration Error
Accuracy vs. Temperature
Max. Crosstalk at DC, 50/60 Hz
Linearity Error (End to End)
Output Stability and
Repeatability
Output Ripple
Output Settling Time
All Channel Update Rate
Max. Continuous Overload
Type of Output Protection
Output Signal at Power Up or
Power Down
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
2
4–20 mA (source)
12-bit, 3.9 uA per count
Current sourcing at 20mA max. (One
common)
12-bit unsigned integer, 0-4095 counts
Less than 4mA
0–600 q at 24VDC; minimum load:
0q 32° to 113°F (0° to 45°C);
125q 113° to 131°F (45° to 55°C)
ambient temp.
1mH
Grounded
±1% of range
±0.2% of range maximum
±0.2% of range maximum
±50 PPM/°C maximum full scale
calibration change
(±0.005% of range/°C)
-72 dB, 1 LSB
±4 LSB maximum, (±0.1% of full
scale), monotonic with no missing
codes
±2% LSB after 10 minute warmup
period typical
±0.1% of full scale
0.2 ms maximum, 5μs min.
(full scale range)
20ms
Outputs open circuit protected
Electronically limited to 20mA or less
4mA
