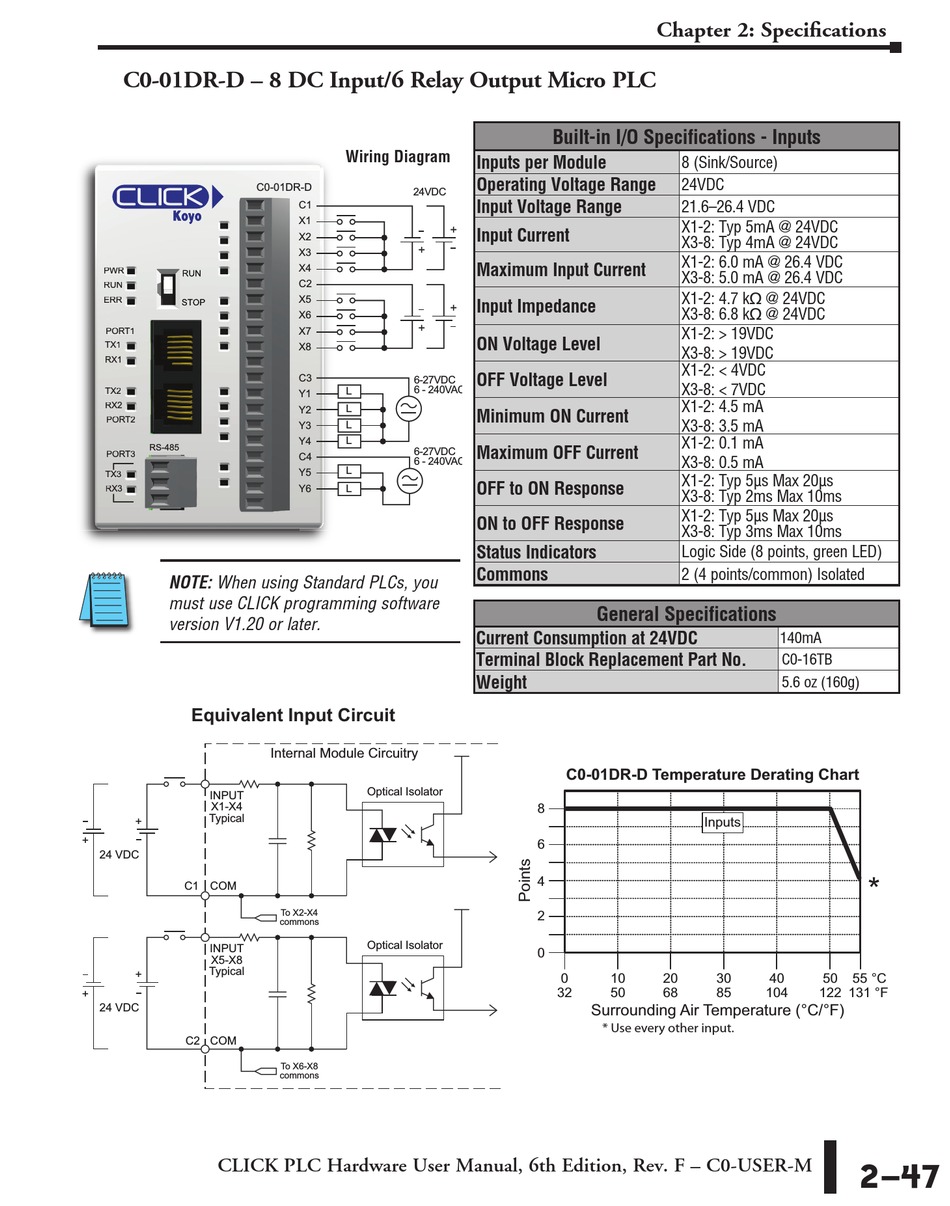

C0-01DR-D – 8 DC Input/6 Relay Output Micro PLC
C0-01DR-D
PWR PWR
RUN RUN
ERR ERR
PORT1 PORT1
TX1 TX1
RX1 RX1
TX2 TX2
RX2 RX2
PORT2 PORT2
RS-485 RS-485
PORT3 PORT3
TX3 TX3
RX3 RX3
NOTE: When using Standard PLCs, you
must use CLICK programming software
version V1.20 or later.
Equivalent Input Circuit
INPUT
X1-X4
Typical
+
+
24 VDC
C1 COM
INPUT
X5-X8
Typical
+
+
24 VDC
C2 COM
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
Wiring Diagram
24VDC
C1
X1
X2
X3
X4
C2
X5
X6
X7
X8
C3
6-27VDC
6 - 240VAC
L
Y1
L
Y2
L
Y3
L
Y4
6-27VDC
C4
6 - 240VAC
L
Y5
Y6 L
Internal Module Circuitry
Optical Isolator
To X2-X4
commons
Optical Isolator
To X6-X8
commons
Built-in I/O Specifications - Inputs
Inputs per Module
Operating Voltage Range
Input Voltage Range
Input Current
Maximum Input Current
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
General Specifications
Current Consumption at 24VDC
Terminal Block Replacement Part No.
Weight
C0-01DR-D Temperature Derating Chart
8
6
4
2
0
0 10
32 50
Surrounding Air Temperature (°C/°F)
* Use every other input.
Chapter 2: Specifications
8 (Sink/Source)
24VDC
21.6–26.4 VDC
X1-2: Typ 5mA @ 24VDC
X3-8: Typ 4mA @ 24VDC
X1-2: 6.0 mA @ 26.4 VDC
X3-8: 5.0 mA @ 26.4 VDC
X1-2: 4.7 kq @ 24VDC
X3-8: 6.8 kq @ 24VDC
X1-2: > 19VDC
X3-8: > 19VDC
X1-2: < 4VDC
X3-8: < 7VDC
X1-2: 4.5 mA
X3-8: 3.5 mA
X1-2: 0.1 mA
X3-8: 0.5 mA
X1-2: Typ 5μs Max 20μs
X3-8: Typ 2ms Max 10ms
X1-2: Typ 5μs Max 20μs
X3-8: Typ 3ms Max 10ms
Logic Side (8 points, green LED)
2 (4 points/common) Isolated
140mA
C0-16TB
5.6 oz (160g)
Inputs
20 30 40 50
68 85 104 122
*
55 °C
131 °F
2–47
