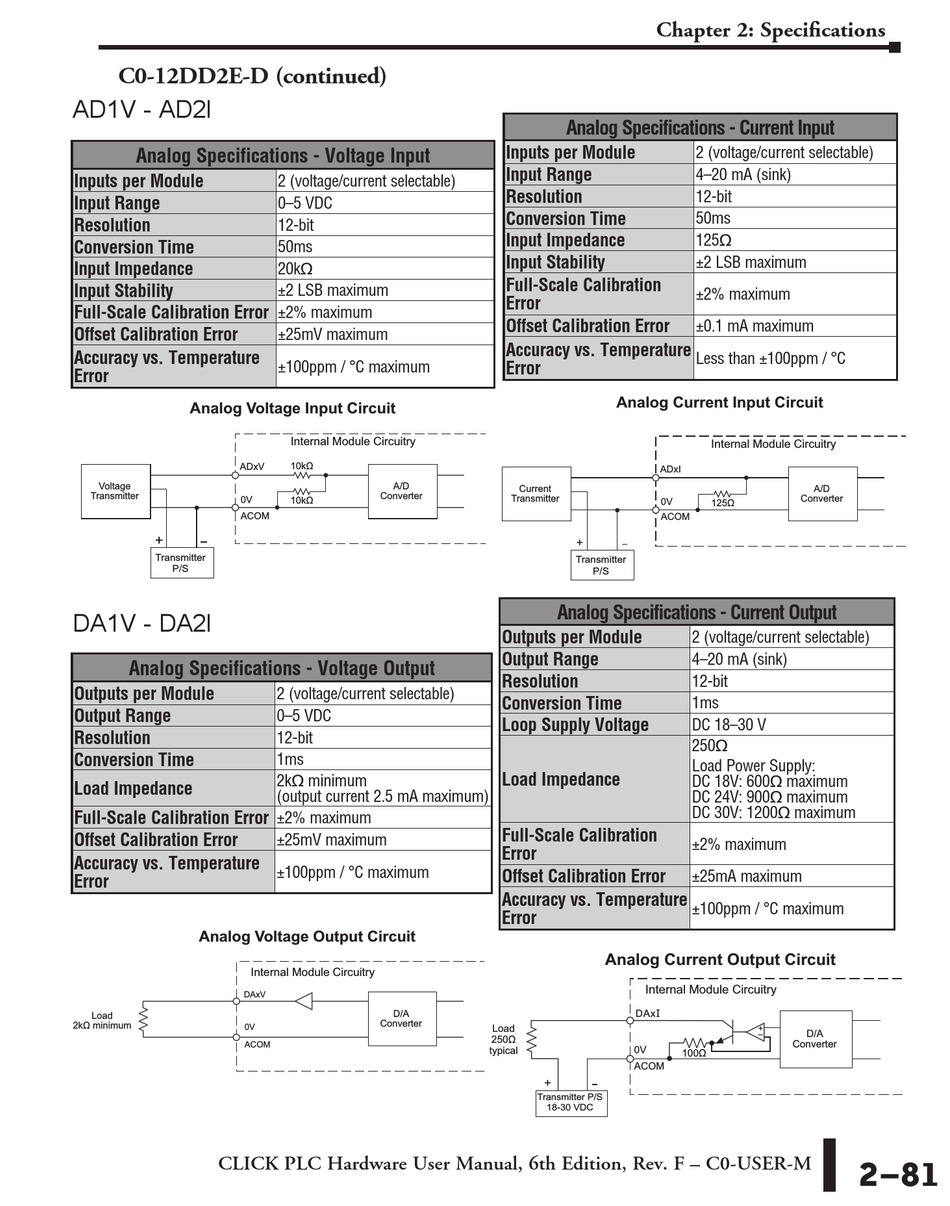

C0-12DD2E-D (continued)
AD1V - AD2I
Analog Specifications - Voltage Input
Inputs per Module
Input Range
Resolution
Conversion Time
Input Impedance
Input Stability
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Voltage Input Circuit
ADxV
Voltage
Transmitter
0V
ACOM
+
Transmitter
P/S
DA1V - DA2I
Analog Specifications - Voltage Output
Outputs per Module
Output Range
Resolution
Conversion Time
Load Impedance
Full-Scale Calibration Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Voltage Output Circuit
Internal Module Circuitry
DAxV
Load
2k minimum
0V
ACOM
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
2 (voltage/current selectable)
0–5 VDC
12-bit
50ms
20kq
±2 LSB maximum
±2% maximum
±25mV maximum
±100ppm / °C maximum
Internal Module Circuitry
10k
A/D
Converter
10k
2 (voltage/current selectable)
0–5 VDC
12-bit
1ms
2kq minimum
(output current 2.5 mA maximum)
±2% maximum
±25mV maximum
±100ppm / °C maximum
D/A
Converter
Chapter 2: Specifications
Analog Specifications - Current Input
Inputs per Module
Input Range
Resolution
Conversion Time
Input Impedance
Input Stability
Full-Scale Calibration
Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Current Input Circuit
ADxI
Current
Transmitter
0V
ACOM
+
Transmitter
P/S
Analog Specifications - Current Output
Outputs per Module
Output Range
Resolution
Conversion Time
Loop Supply Voltage
Load Impedance
Full-Scale Calibration
Error
Offset Calibration Error
Accuracy vs. Temperature
Error
Analog Current Output Circuit
Internal Module Circuitry
DAxI
Load
250
typical 0V
ACOM
+
Transmitter P/S
18-30 VDC
2 (voltage/current selectable)
4–20 mA (sink)
12-bit
50ms
125q
±2 LSB maximum
±2% maximum
±0.1 mA maximum
Less than ±100ppm / °C
Internal Module Circuitry
A/D
Converter
125
2 (voltage/current selectable)
4–20 mA (sink)
12-bit
1ms
DC 18–30 V
250q
Load Power Supply:
DC 18V: 600q maximum
DC 24V: 900q maximum
DC 30V: 1200q maximum
±2% maximum
±25mA maximum
±100ppm / °C maximum
+
D/A
–
Converter
100
