Accessories

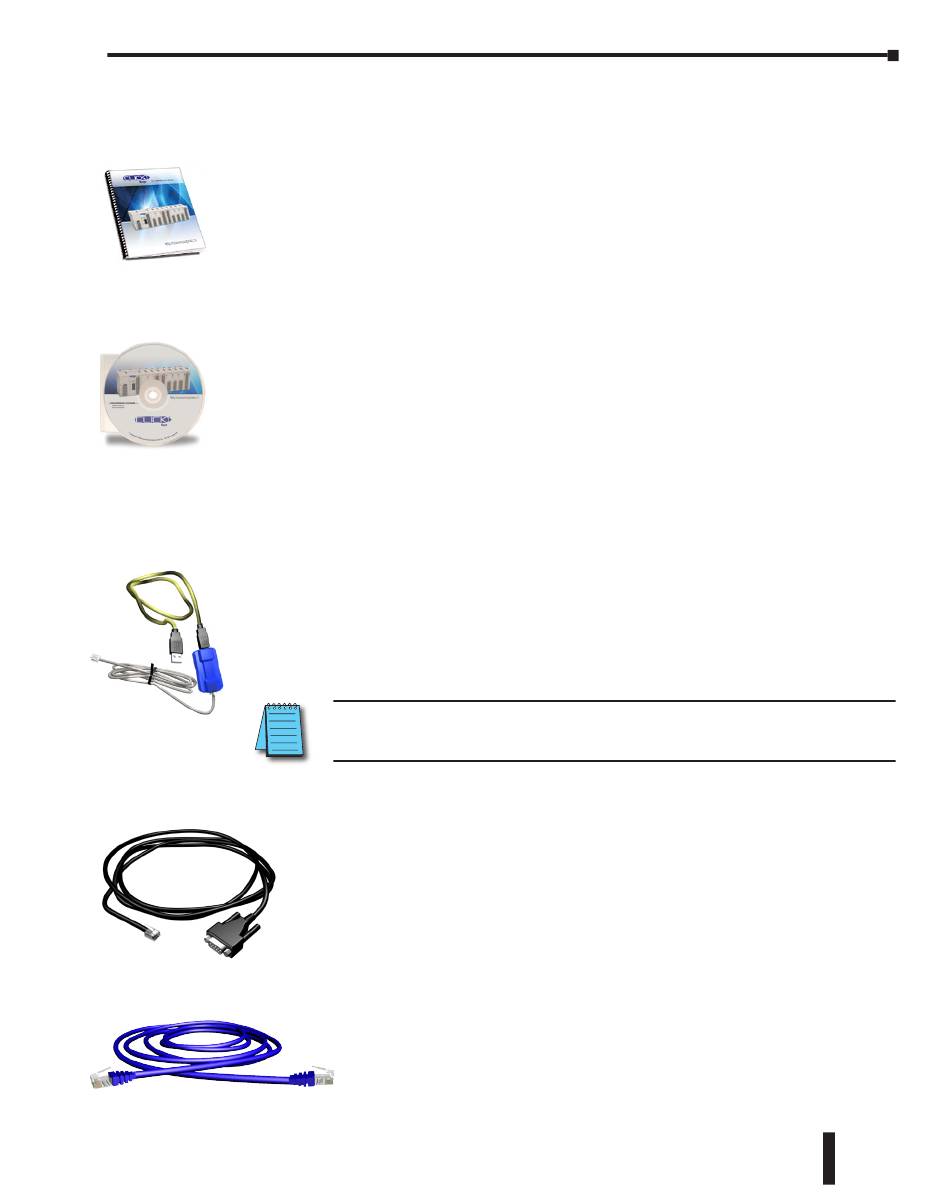

C0-USER-M – CLICK PLC Hardware Users Manual
Manual covers all CLICK PLC & I/O Module installation & wiring, specifications,
error codes & trouble shooting guide. Sold separately from hardware.
The CLICK PLC Hardware User Manual can be downloaded free at the
AutomationDirect Web site or purchased from the AutomationDirect online Web
store, www.automationdirect.com
C0-PGMSW – CLICK PLC Programming Software CD
CLICK PLC programming software Ladder Logic Editor for Windows PCs, includes
the manual as a pdf file. Free download available from AutomationDirect online
Web store: www.automationdirect.com. Alternatively the programming software CD
may be purchased and shipped from the AutomationDirect online Web store: www.
automationdirect.com
EA-MG-PGM-CBL – PC to Panel Programming Cable Assembly for C-more Micro-
Graphic Panels and/or PC to CLICK PLCs.
6-ft. cable assembly to connect personal computer to any C-more Micro-Graphic
panel or CLICK PLC for setup and programming. (Note: This cable assembly
uses the PC's USB port and converts the signals to serial transmissions. The USB
port supplies 5VDC to the Micro-Graphic panel for configuration operations).
Assembly includes standard USB A-type connector to B-type connector cable,
custom converter, and an RS232C cable with RJ12 modular connector on each end.
D2-DSCBL – PC Programming Cable for CLICK and DirectLOGIC PLCs
Cat5e – PC Programming Ethernet Cable for CLICK PLCs
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
NOTE: If your PC has a USB port but does not have a serial port, you must use
programming cable EA-MG-PGM-CBL.
12ft (3.66 m) RS232 shielded PC programming cable for CLICK, DL05,
DL06, DL105, DL205, D3-350, and D4-450 CPUs. 9-pin D-shell female
connector to an RJ12 6P6C connector.
3ft–50ft Cat5e STP Ethernet Patch Cable for PC programming of
CLICK PLCs; RJ45 connector. Straight or Cross-over cable can be
used.
