Chapter 2
ViewStation SP User Guide
WINS server address.
When this option is selected, IP, DNS, Default Gateway,
Subnet Mask and WINS server address fields cannot be
changed.
•
Off selected: When OFF is selected, the LAN manager or
ViewStation SP administrator must enter all values as static
addresses. These values do not change unless manually
changed.
•
IP Address: Enter the static IP address assigned to the
ViewStation SP.
•
DNS Servers: The ViewStation SP supports up to four
DNS servers for multiple LANs.
•
Default Gateway: Enter the server's default gateway
address.
•
Subnet Mask: Enter the subnet mask for the LAN.
•
WINS Server: Enter the WINS server address for the
LAN.
H.323 Setup
The H.323 Setup screen (System Info > Admin Setup >
LAN/H.323 > H.323) shown in Figure 2-22 is used to configure the
H.323 communication protocols for the ViewStation SP.

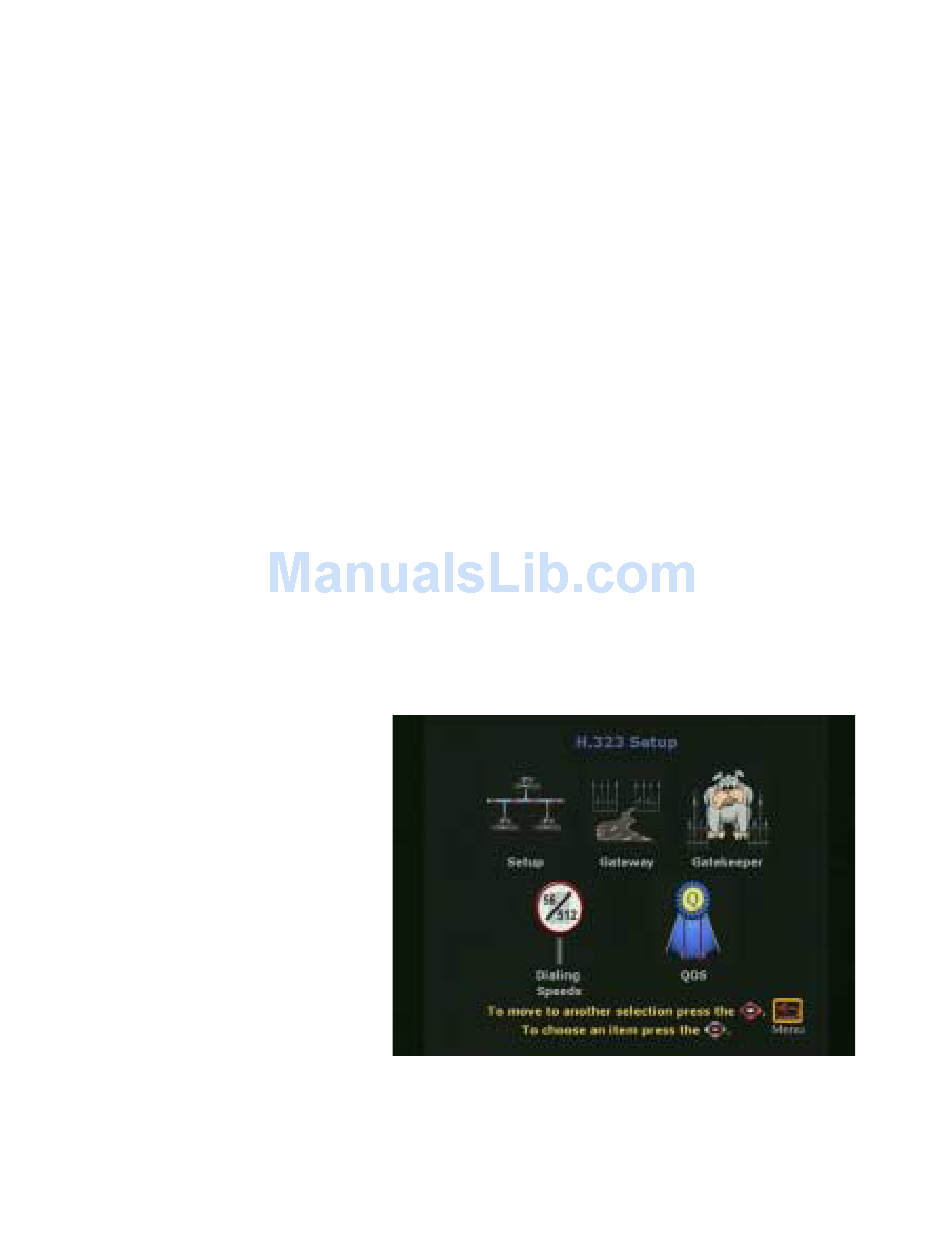

Figure 2-22. H.323 Setup Screen
44
Optional Configurations
