Gateway - Polycom ViewStation SP128 User Manual

Chapter 2
© Polycom, Inc.

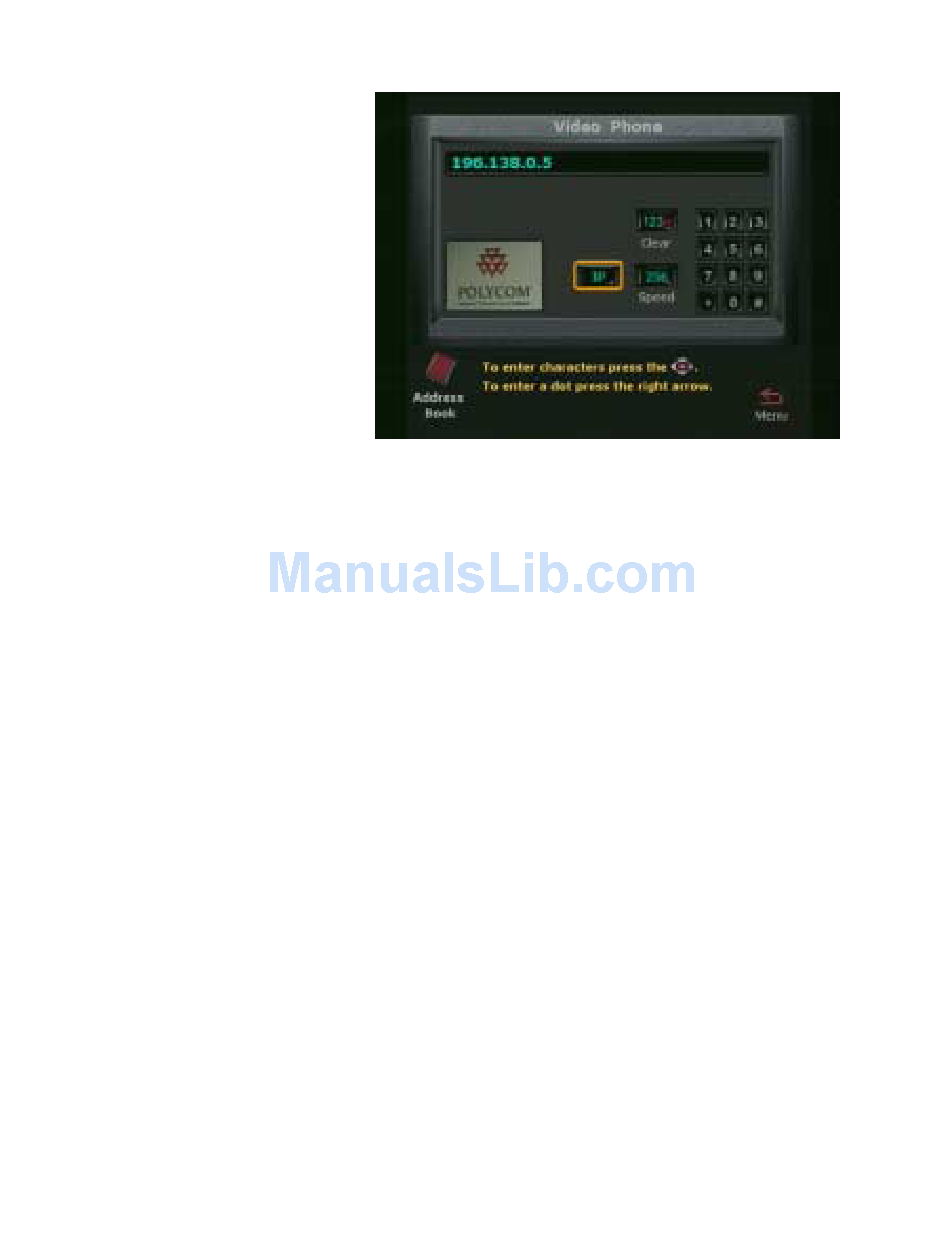

Figure 2-25. Video Phone Screen (with IP Selected)

Gateway

The Gateway screen (System Info > Admin Setup > LAN/H.323 >
Gateway) is used to configure the gateway profile in accordance
with a specific gateway used on a LAN. The prefix and suffix are
pre-programmed on the gateway and are associated with a
bandwidth used for the gateway to make a call. For example:
• The number 7 is assigned to a specific RadVision gateway.
• The number 256 is the bandwidth speed at which the
gateway places a video call.
• The number 9 tells the gateway to place a call outside the
LAN.
72569
47
Optional Configurations
ViewStation SP User Guide
