Chapter 3
ISDN Status
Indicator
ViewStation SP User Guide

ViewStation SP384 Line Indicators

The ViewStation SP checks the configuration of the ISDN lines every
time the ViewStation SP is powered on or restarted. This process of
checking the ISDN lines normally takes less than one minute.

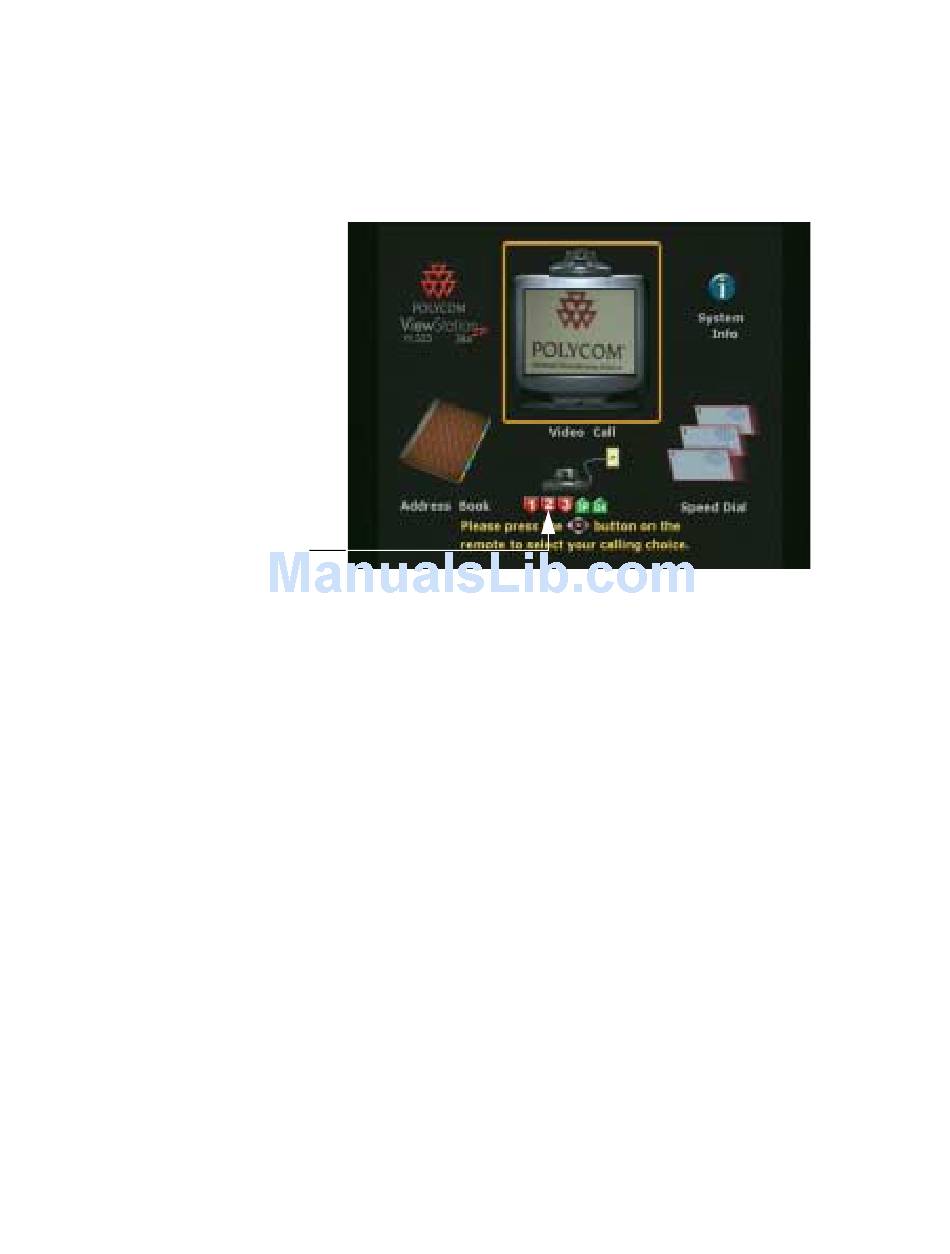

Figure 3-2. ViewStation SP384 Main Calling Screen
If the ISDN line has failed or is not properly configured, a red down
arrow status indicator displays on the Main Calling screen (shown
in Figure 3-2). When a network problem is noted, a red, down arrow
appears under the ViewStation SP icon. Check the network
connection or contact the LAN Manager.
The ViewStation SP Triple BRI Main Calling screen is shown in
Figure 3-3. The ViewStation SP has checked and verified three of
the three ISDN lines as indicated by the three green up arrow icons
on the screen.
• A red down arrow icon indicates no network connectivity.
• A yellow box icon indicates that the ViewStation SP is
checking the ISDN line.
• A green up arrow icon indicates network connection.
When the ViewStation SP verifies each line connection, the yellow
box icon turns a green up arrow. After a few seconds, all three green
up arrows disappear.
