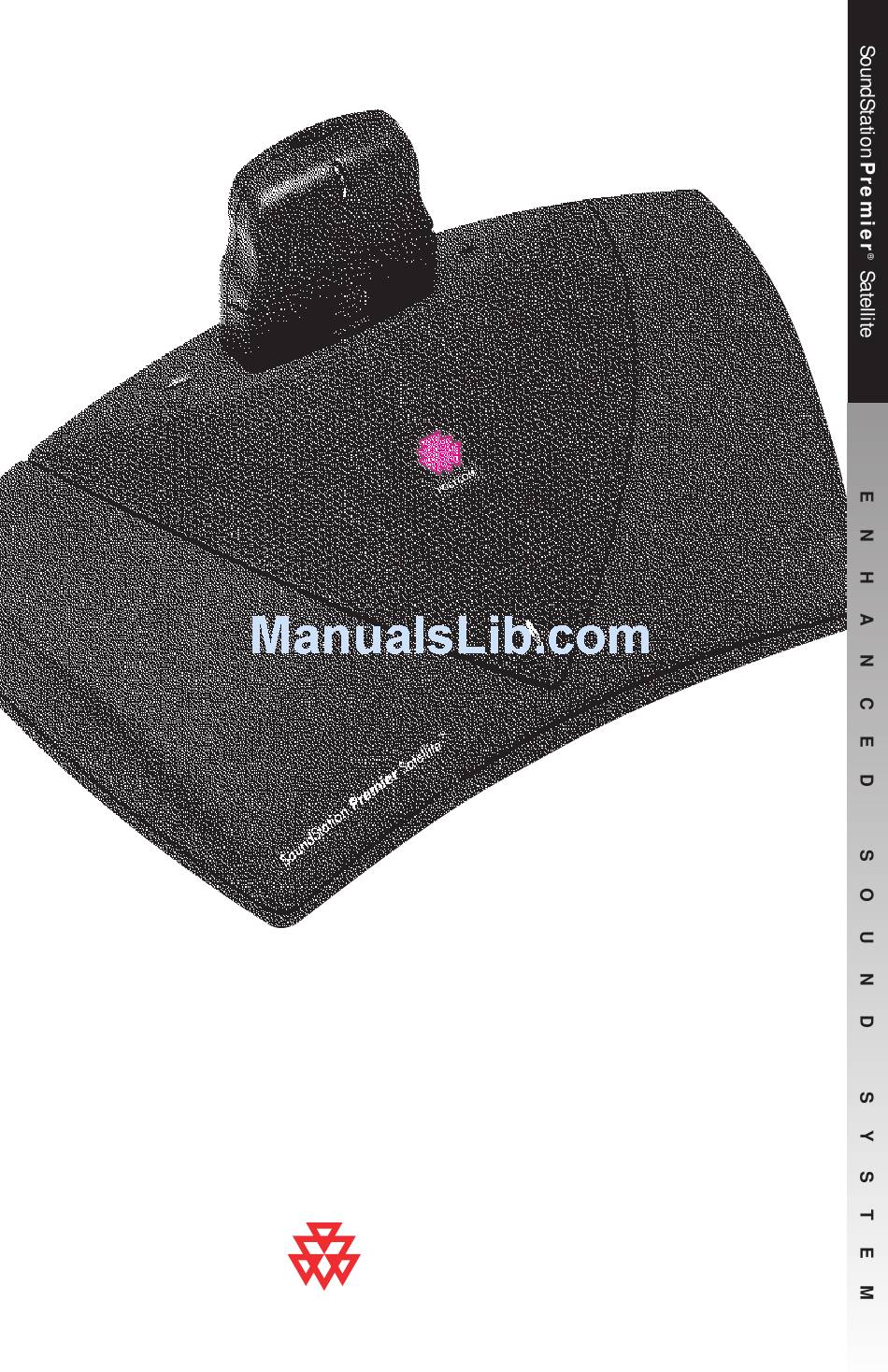

Page 1: Installation Instructions
Installation Instructions and User’s Guide POLYCOM ® Advanced Teleconferencing Solutions... - Page 3 Table of Contents ......Chapter 1 SoundStation Premier Satellite Chapter 2 SoundStation Premier Satellite With ......Wireless Lavaliere Microphone ....... Chapter 3 Optional Extended Microphones ....Chapter 4 Technical Specification & Warranty...
- Page 5 SoundStation Premier Satellite Chapter 1 Enhanced Sound System Installation Instructions and User’s Guide Addendum...
- Page 6 This chapter covers installation and use of your SoundStation Premier Satellite system . Please set up the SoundStation Premier base unit first, following the instructions in Chapter 1, SoundStation Premier. Please note SoundStation Premier console replaces the Wall Module as a power supply.
- Page 7 4. Connect the 25-foot connector cable to the jack labeled with the Console icon in the rear of the SoundStation Premier Satellite unit. Connect the other end to the jack in the SoundStation Premier unit. You should hear two distinct “bongs” after approximately 5 seconds.
- Page 8 6. For privacy during a conference call, connect an external telephone (not provided) to the SoundStation Premier Satellite. Use the RJ11 jack in the rear of the SoundStation Premier Satellite module. (Not available in some countries) When the telephone receiver is lifted, all microphones and speakers are disabled. When the external telephone hangs up, the microphones and speakers are enabled.
- Page 9 SoundStation Premier Satellite With Wireless Lavaliere Microphone (Available in U.S. only) Chapter 2 Enhanced Sound System Installation Instructions and User’s Guide Addendum...
- Page 10 This chapter covers installation and use of your SoundStation Premier Satellite System with wireless lavaliere microphone. Please set up the SoundStation Premier base module first, following the instructions in Chapter 1, SoundStation Premier. Please note SoundStation Premier console replaces the Wall Module as a power supply.
- Page 11 1. Position the SoundStation Premier Satellite in the desired location. Avoid having objects directly in front of the unit. For the optimum performance, the SoundStation Premier Satellite should be placed 10 feet or farther from the SoundStation Premier console. 2. Plug the power cord into the nearest electrical outlet.
- Page 12 6. For privacy during a conference call, connect an external telephone (not provided) to the SoundStation Premier Satellite. Use the RJ11 jack in the rear of the SoundStation Premier Satellite module. (Not available in some countries) When the telephone receiver is lifted, all microphones and speakers are disabled. When the external telephone hangs up, the microphones and speakers are enabled.
- Page 13 2. Observe the correct polarity which is clearly marked in the battery compartment. 3. Set the transmitter into the recharging bay on the SoundStation Premier Satellite. It is recommended that the batteries be charged for 8 hours before use. Standard AAA batteries can be used but are not rechargeable, and pose no problems if the transmitter is docked in the recharging bay.
- Page 14 TO ENSURE BEST PERFORMANCE ▼ Place the SoundStation Premier Satellite unit in a position unobstructed by other objects so that users can hear clearly. ▼ The acoustic environment should follow the same criteria covered in Chapter 1, SoundStation Premier. ▼...
- Page 15 USING THE WIRELESS TRANSMITTER The wireless transmitter is a rugged compact body pack with attached lavaliere microphone, and includes these special features: ▼ ON/OFF Audio ▼ Rechargeable NiCad battery pack. ▼ Battery compartment for quick pop-in battery replacement. Uses rechargeable battery pack (included).
- Page 16 Enhanced Sound System Installation Instructions and User’s Guide Addendum...
- Page 17 Optional Extended Microphones Chapter 3 Enhanced Sound System Installation Instructions and User’s Guide Addendum...
- Page 18 OPTIONAL EXTERNAL MICROPHONES Connect the two (2) optional SoundStation Premier external microphones to the jacks provided at the rear of the SoundStation Premier Satellite module, using the 10-foot microphone cables provided. 10' cables (25'cables optional) TO ENSURE BEST PERFORMANCE ▼...
-
Page 19: Adjusting The Balance
PAUSE To resume two-way communications, press the mute button again. ADJUSTING THE BALANCE It is possible to adjust the relative volume between SoundStation Premier and SoundStation Premier OFF HOOK Satellite when the console unit is , using the following procedure. - Page 20 Position the lavaliere microphone six inches from your mouth. ▼ Be sure the rechargeable battery pack included in the SoundStation Premier Satellite unit is fully charged. In case of an emergency, three (3) regular AAA alkaline batteries may be used.
- Page 21 Technical Specifications & Warranty Chapter 4 Enhanced Sound System Installation Instructions and User’s Guide Addendum...
-
Page 22: Technical Specification
TECHNICAL SPECIFICATION Audio Bandwidth 200 to 3500 Hz Loudspeaker Volume Adjustable to 85 dB/SPLA/A peak volume Network Interface Two-wire RJ-11 analog PBX or Public Switched Telephone Network Interface Privacy Telephone Interface Two-wire RJ-11 (analog) Power Requirements 90-240 VAC, 50-60 Hz, 35 W Size: 12.3 in ×... - Page 23 Date”). If you notify Polycom or its Authorized Dealer within one year of the Warranty Date that your system is not in good working order, Polycom will, without charge to you, repair or replace, at its option, the system components that are not in good working order. Repair or replacement parts may be new or refurbished and will be provided on an exchange basis.
- Page 24 Telephone 408.526.9000 or toll-free 800.POLYCOM Facsimile 408.526.9100 Internet http://www.polycom.com Polycom ® , the Polycom logo design, SoundStation ® , and SoundStation Premier ® are registered trademarks of Polycom, Inc. in the U.S. and various countries. ©1997 Polycom, Inc. All Rights Reserved. Part No.1725-04508-001 Rev A...
