Network Stats

Advanced Stats

Call Status

Color Bar

© Polycom, Inc.

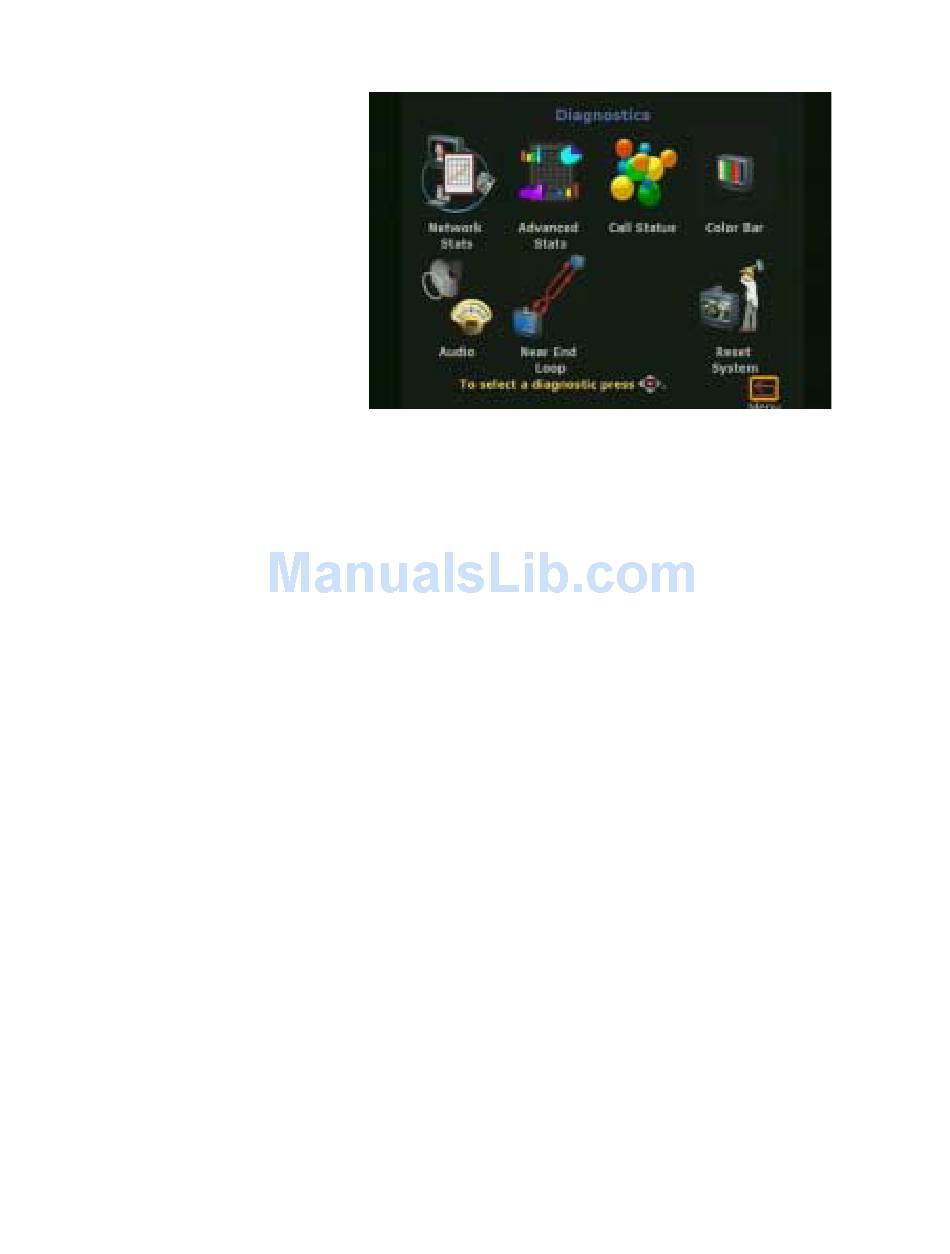

Figure 5-2. System Diagnostics Screen
The Network Statistics screen displays the network protocols and
transmit and receive data rates for video calls.
The Advanced Network Statistics screen displays detailed
information about the status of your call. Transmit and receive
speeds are displayed for both audio and video during a video call.
The Call Status screen allows you to determine if one of the far
site's ISDN channels consistently fails to connect. If you highlight
any of the call progress indicators, the corresponding ISDN number
appears. You can then compare this number to the number you
need to dial. Check the status code for each line if you need to
troubleshoot ISDN problems. See ISDN Errors, on page 153.
The Color Bar screen is used to test the color setting on the
television monitor. Highlight the View Color Bars icon and press the
SELECT button on the remote control. Color bars appear full screen.
Use the controls on the television monitor to adjust the color
settings. Press any button on the remote control to return to the
Color Bars screen.
