Connecting The ViewStation SP To a LAN

Connecting The ViewStation SP to a Stand Alone PC

ViewStation SP User Guide

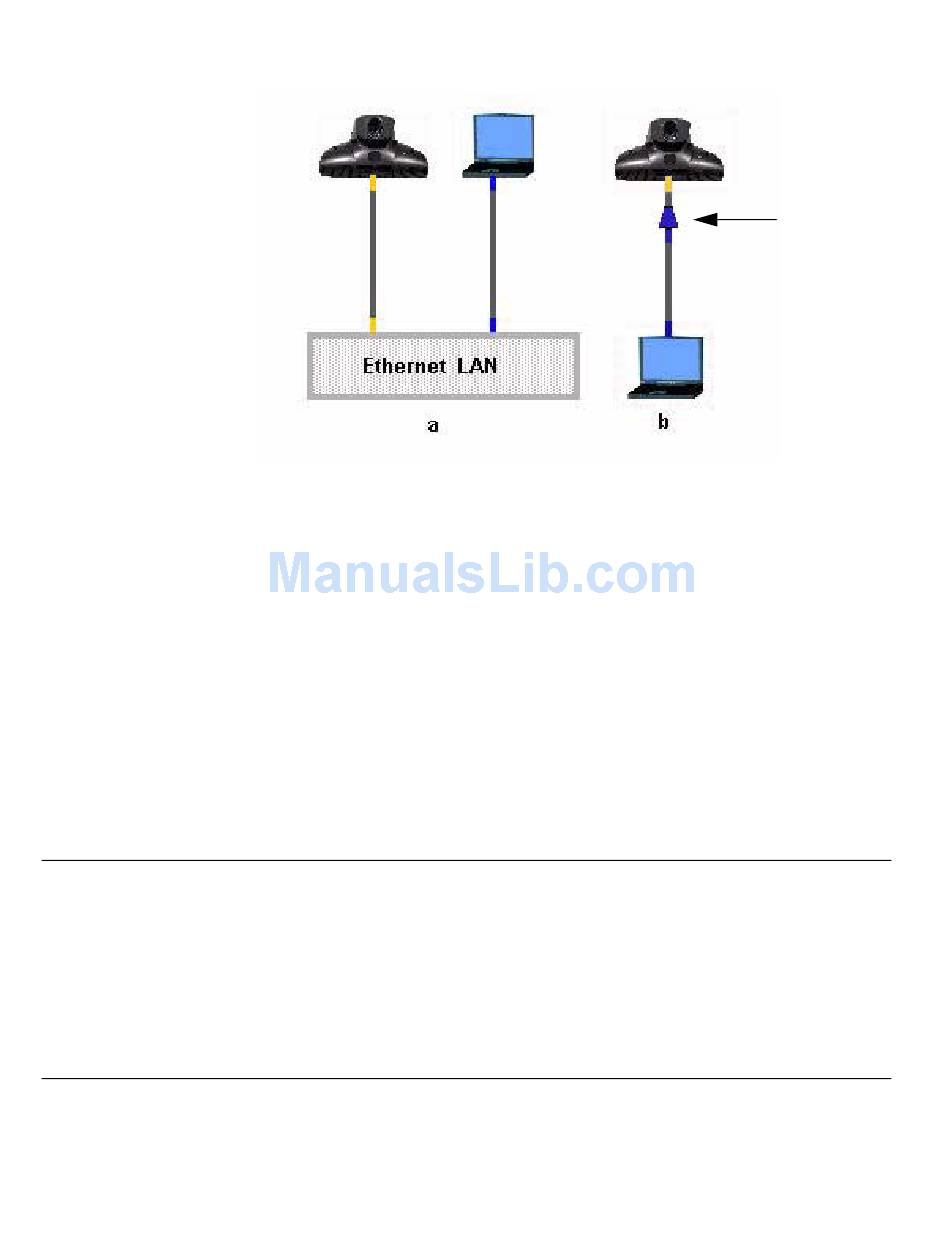

Figure 4-1. Two Unique ViewStation SP to PC Configurations
Figure 4-1 illustrates the two ways to connect a PC to a ViewStation
SP.
Figure 4-1-a connects the PC to an Ethernet RJ-45 port on the LAN.
The ViewStation SP is connected from orange RJ-45 port to the
Ethernet LAN.
Figure 4-1-b illustrates direct connection of the ViewStation SP to a
PC.
Figure 4-1-a illustrates the most common method for ViewStation
SP to PC connectivity. If both ViewStation SP and PC have LAN
connectivity, no additional configuration is needed. See "Using the
ViewStation SP Web Interface," on page 99.
Figure 4-1-b illustrates a configuration which neither the ViewStation
SP nor the PC has access to an Ethernet LAN. For example: For an
Using the ViewStation SP with a PC
96
LAN Adapter
