Chapter 4
ViewStation SP User Guide
The Network dialog box appears (the screen in Figure 4.2 is for
Windows 2000 operating system. Your operating system my
display this information differently.)

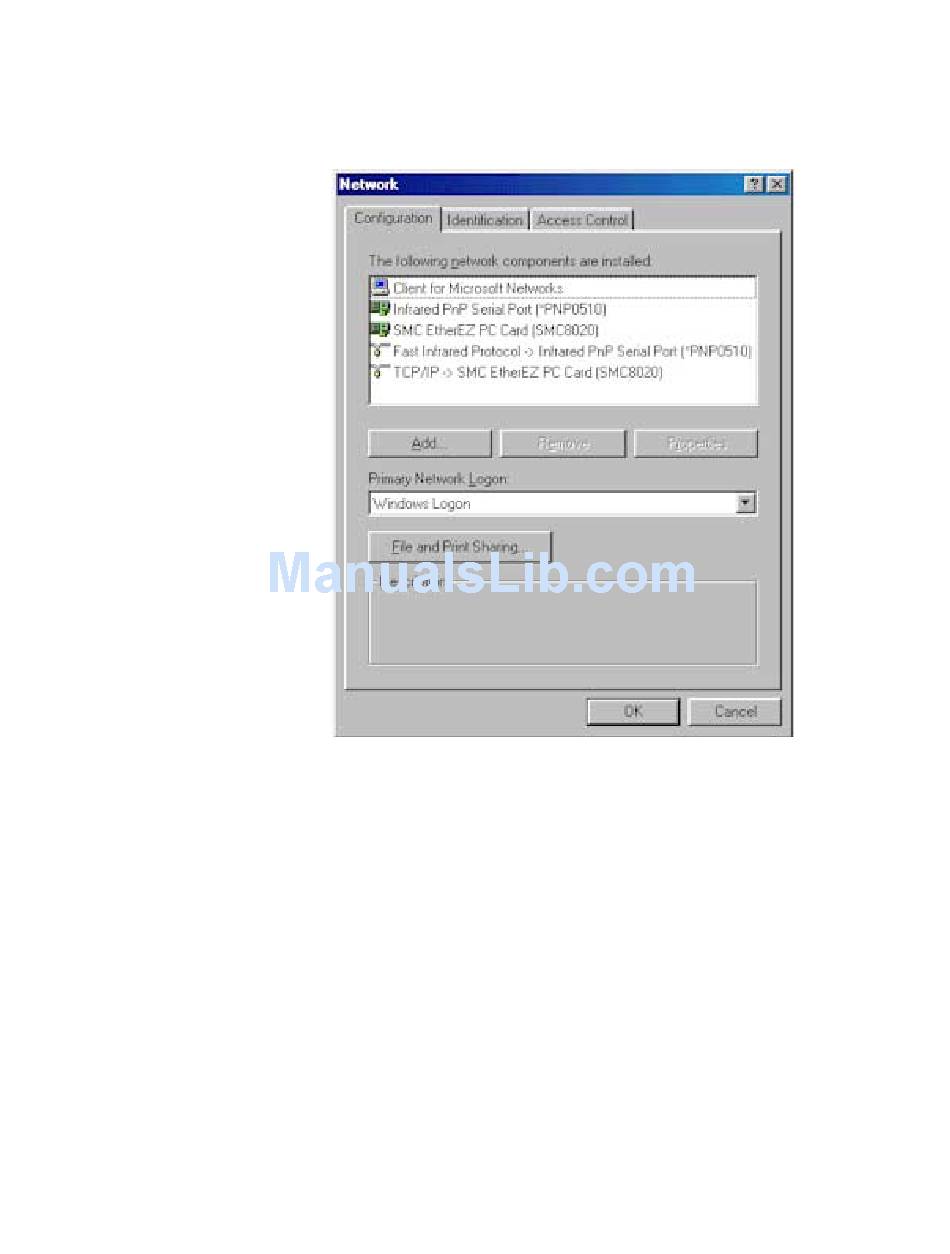

Figure 4-2. PC TCP/IP Network Screen
On the Configuration tab:
a. Select the TCP/IP component
b. Click the PROPERTIES button.
The TCP/IP Properties dialog box appears. There might
be more than one TCP/IP component. If so, choose the
one for the LAN adapter, not the dial-up adapter.
For Windows 9X: The Primary Network Logon is shown in Figure
4-2: Select Windows Logon otherwise the ViewStation SP cannot
assign an IP address to the PC.
Using the ViewStation SP with a PC
98 www.polycom.com
