1. Introduction

The Lattice Semiconductor MahXO5T™-NX Development Board allows you to investigate and experiment with the
features of the LFMXO5-100T device. The features of the MachXO5T-NX Development Board can assist you with the
rapid prototyping and testing of your specific designs.
The MachXO5T-NX Development Board is part of the MachXO5T-NX Development Kit, which includes the following:
•
MachXO5T-NX Development Board pre-loaded with the demo design
•
12 V AC/DC Power adapter
•
Mini USB cable
•
Quick Start Guide
The contents of this user guide include top-level functional descriptions of the various portions of the development
board, descriptions of the onboard headers, diodes and switches, and a complete set of schematics.

1.1. MachXO5T-NX Development Board

Along with the LFMXO5-100T device, the MachXO5T-NX Development Board also includes features to expand the
LFMXO5-100T usability with Arduino, Raspberry, PCIe, RJ45, Versa, and Aardvark headers.
Figure 1.1 shows the top view of the MachXO5T-NX Development Board.
Figure 1.2 shows the bottom view of this board.
Power Switch
User LEDs
(D1~D8)
PMOD
Header
(J16)
DIP Switches (SW1)
© 2023 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
FPGA-EB-02058-1.0
LFMXO5-100T
(SW6)
Device (U3)
FPC Header (CN2)
× 1 PCIe Fingers (CN1)

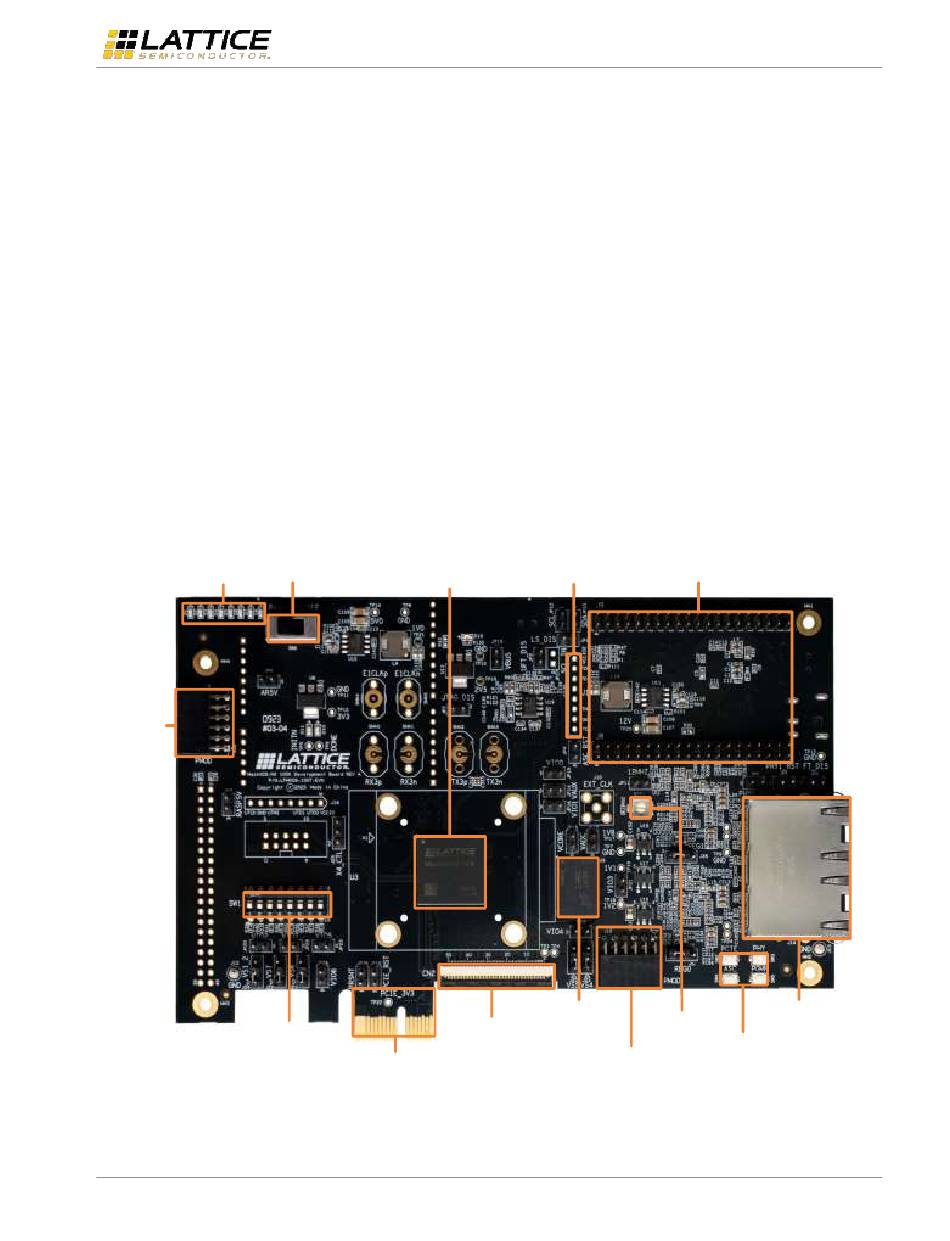

Figure 1.1. Top View of MachXO5T-NX Development Board
