8. Optional SMA Headers

MachXO5T-NX Development Board provides two pairs of high speed SMA footprints to support flexible Serdes Protocol
validation, with x1 RX and TX signal pairs, as shown in
SF2921-61345-2S from Amphenol. The signal mapping was shown as

Table 8.1. Connections for SMA Serdes signal pair

Reference
SMA0
SMA1
SMA2
SMA3
Note: LFMXO5-100T engineering samples cannot support additional PCIe lane via the SMA.
MachXO5T-NX Development Board also provides a pair of high-speed SMA footprints to support SerDes extension
reference clock input as shown in
and the LVDS clock is recommended to be connected. The signal mapping is shown in

Table 8.2. Connections for External SMA Reference Clock

SMA
SMA4
SMA5
© 2023 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
22
Figure 8.1. Their SMA footprint is compatible with

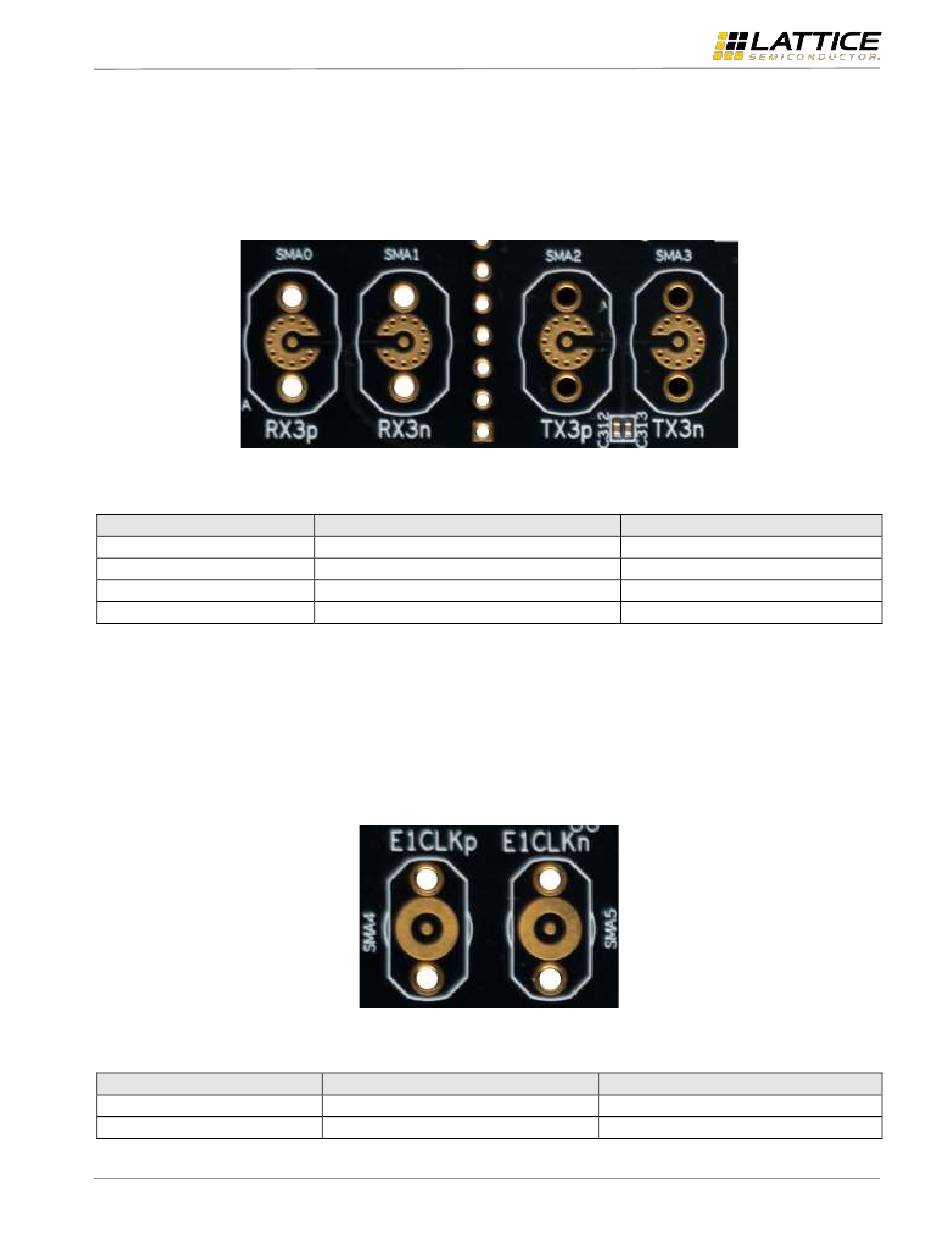

Figure 8.1. SMA Interfacing for x1 Serdes RX and TX
