4. Click Run > Scan Device to check the board through FTUSB-0 Port of embedded HW-USBN-2B(FTDI) cable, as
shown in Figure 11.3. The MachXO5-NX device named as LFMXO5-100T should be detected on the JTAG chain as
shown in Figure 11.4.
5. Change the Programming Speed Settings in the Cable Setup pane on the right. Check the Use custom Clock
Divider option to increase the TCK Divider Setting to 3 or above, as shown in
© 2023 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
28

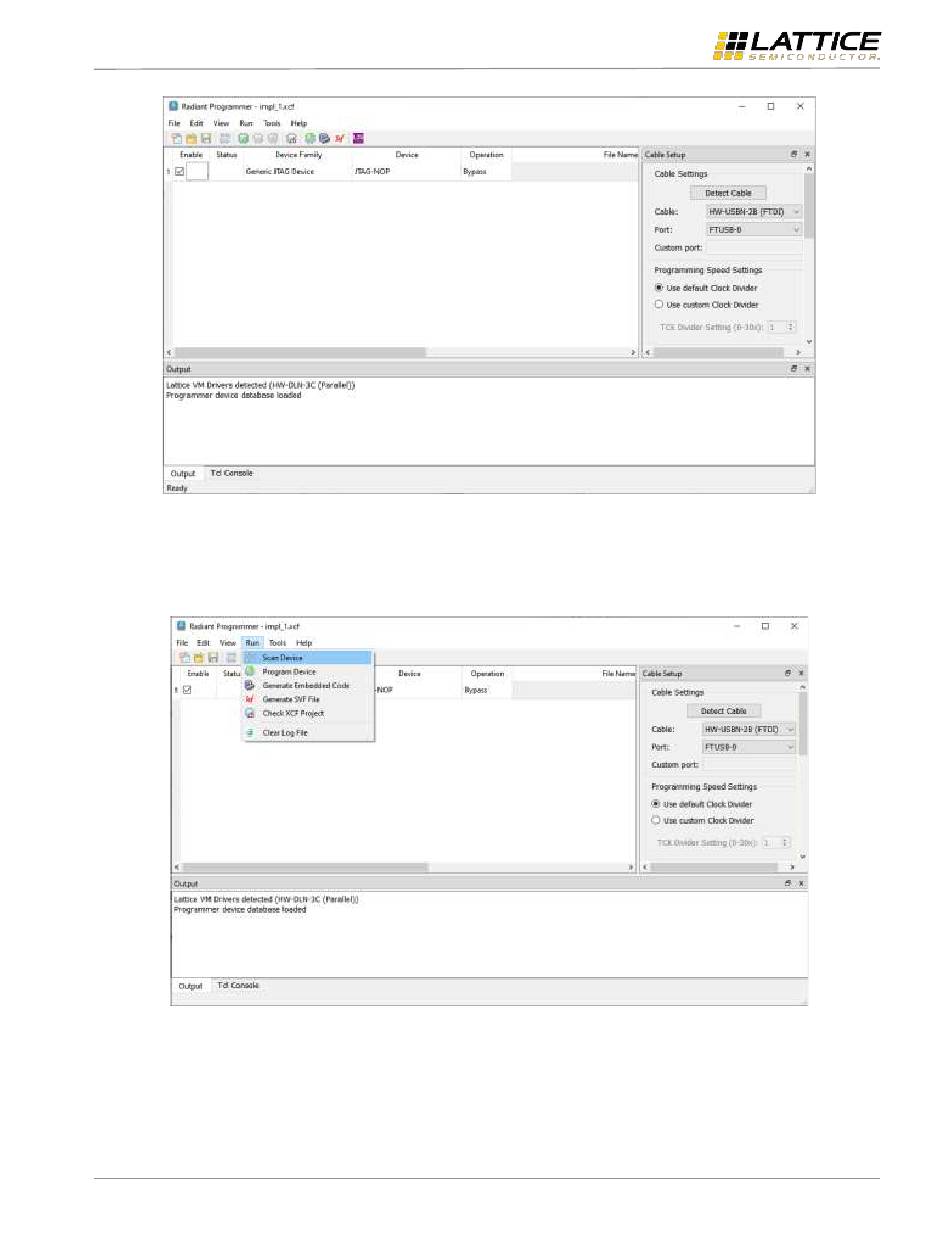

Figure 11.2. Radiant Programmer – Initial Opened
