10. Generating the Programming File

The demo project on the MachXO5T-NX Development Board Rev A board can be downloaded from the Lattice website
(https://www.latticesemi.com/products/developmentboardsandkits/machxo5-nx-development-board).
To generate the JEDEC (.jed) file:
1. Open the Lattice Radiant software.
2. From the File menu, choose Open > Project.
3. In the Open Project dialog box, select the test.rdf file and click Open, as shown in
project.
4. In the Process Toolbar, click Run All
Green checkmarks appear on each successfully-completed step, including the generation of the JEDEC file, as
shown in Figure 10.3.
© 2023 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
FPGA-EB-02058-1.0

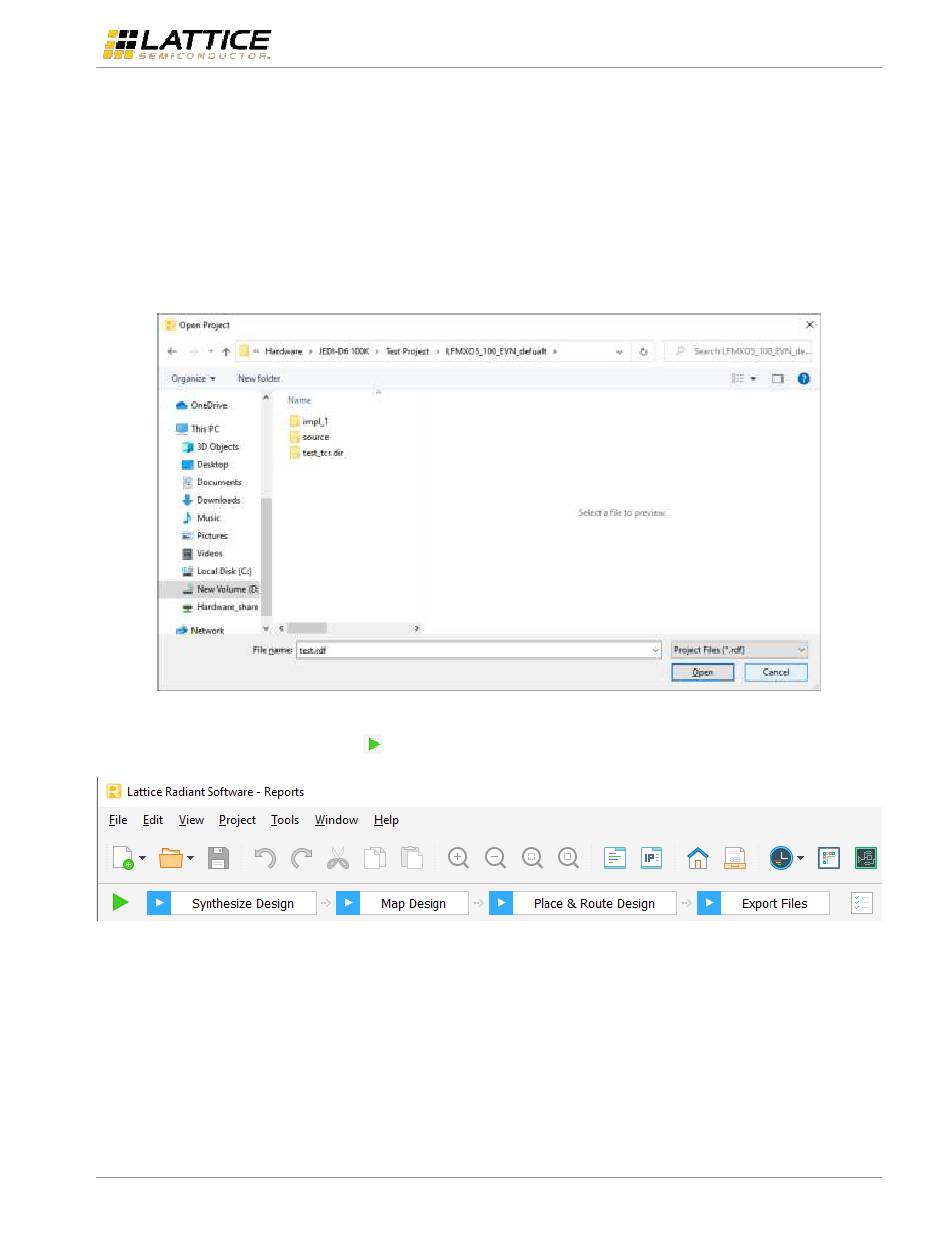

Figure 10.1. Radiant Software – Open Project Dialog Box
, as shown in
Figure 10.2. Radiant Software – Process Toolbar Initial State
Figure 10.2.
MachXO5T-NX-Development Board
Evaluation Board User Guide
Figure 10.1. This opens the demo
