13. LEDs and Switches

LEDs and switches of the MachXO5T-NX Development Board that can be used in demo and customer designs are
described in this section.

13.1. 8-Position DIP Switch

Four LFMXO5-100T pins are connected to the four switches of SW1, as shown in the circuit design in
DIP switches are connected to logic level 0 when in the ON position, as shown in
One side of each switch is connected to GPIOs within the VCCIO5 bank and pulled up through 4.7 kΩ resistors. The
other side is grounded. The designated pins are connected, as shown in

Table 13.1. Four-Position DIP Switch Signals

Net Name
DIP1
DIP2
DIP3
DIP4
DIP5
DIP6
DIP7
DIP8
© 2023 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
40

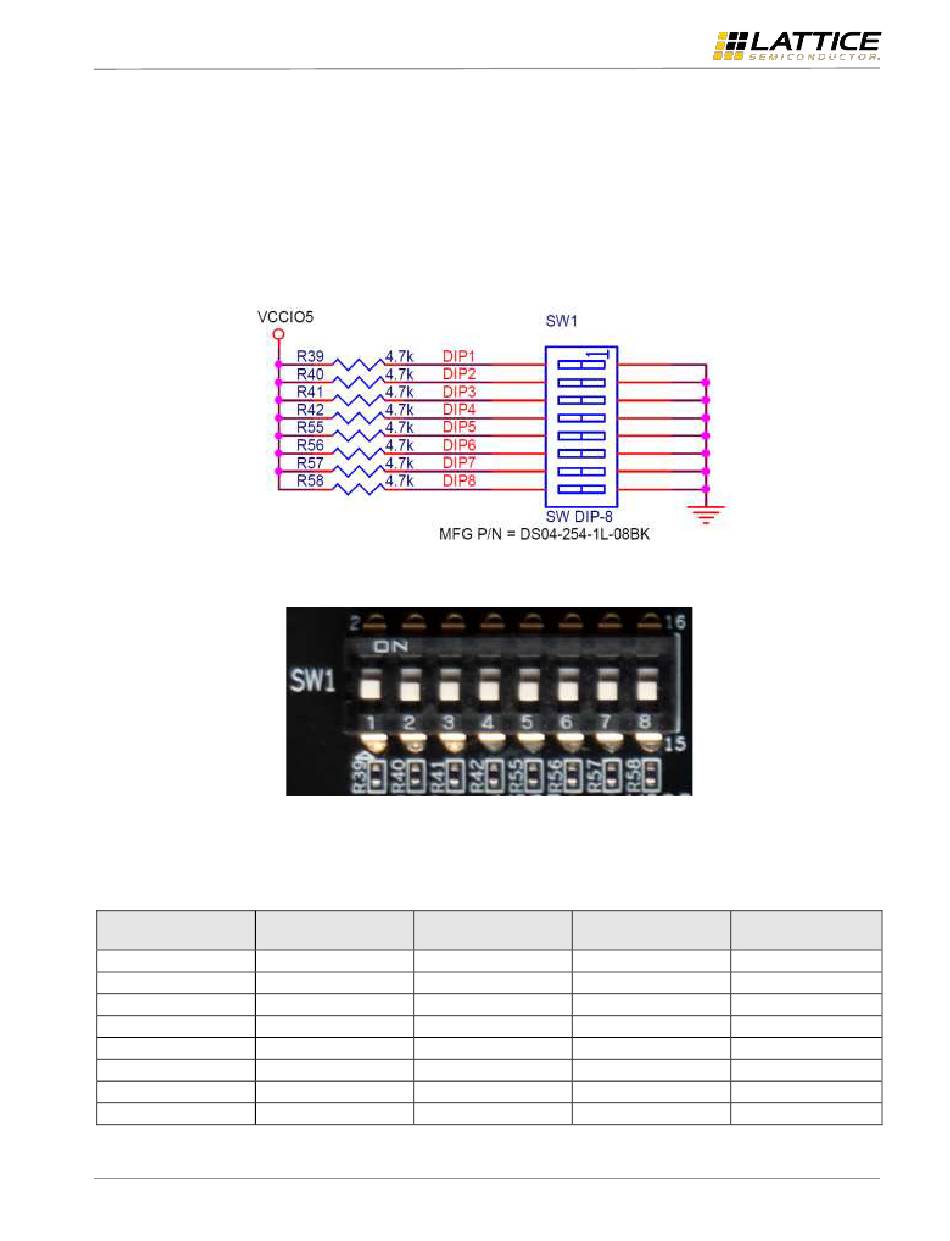

Figure 13.1. Eight-Position DIP Switch Circuits
