MachXO5T-NX-Development Board
Evaluation Board User Guide
11. Programming the MachXO5-NX Device
Lattice Radiant Programmer can be used to program the JEDEC file to the MachXO5-NX embedded flash after the
JEDEC data file is generated, as shown in the
Generating the Programming File
section. Radiant Programmer is
integrated into the Radiant software and is also available as a standalone version.
To program the MachXO5-NX embedded flash:
1. Connect the PC and MachXO5T-NX Development Board (J11) using the USB cable.
2. In Radiant Software, click Tools > Programmer, as shown in
Figure
11.1.

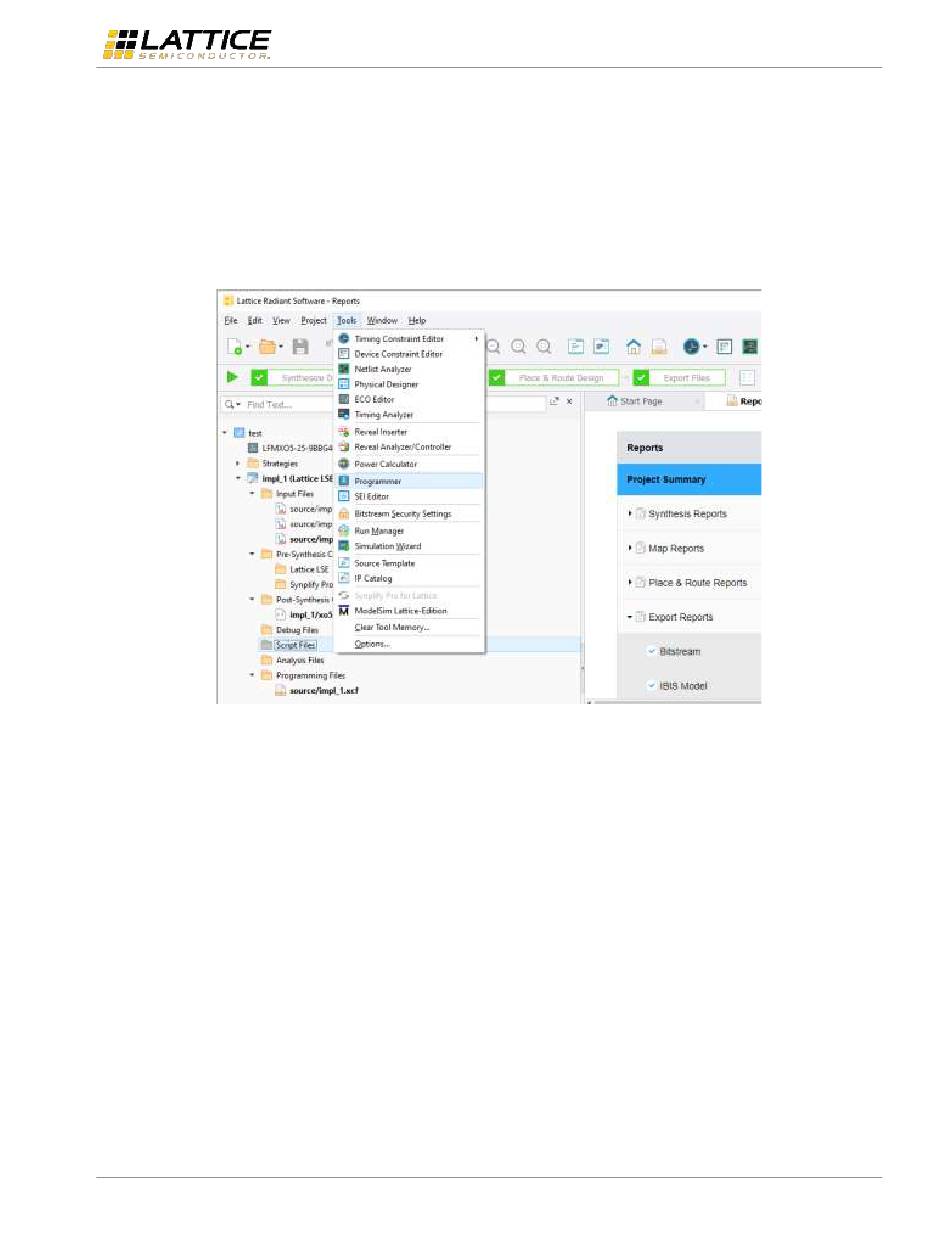

Figure 11.1. Radiant Software – Radiant Programmer
3. After the Radiant Programmer interface opens
(Figure
11.2), power up MachXO5T-NX Development Board by
correctly positioning the power switch SW6.
