MachXO5T-NX-Development Board
Evaluation Board User Guide
MachXO5T-NX Development Board is also designed with a single-end SMA clock header J10, as shown in Figure 8.3.
This is low-cost standard type SMA footprint, such as 5-1814832-2 from TE Connectivity. You need solder it on the
board. Table 8.3 details its connection to the FPGA.

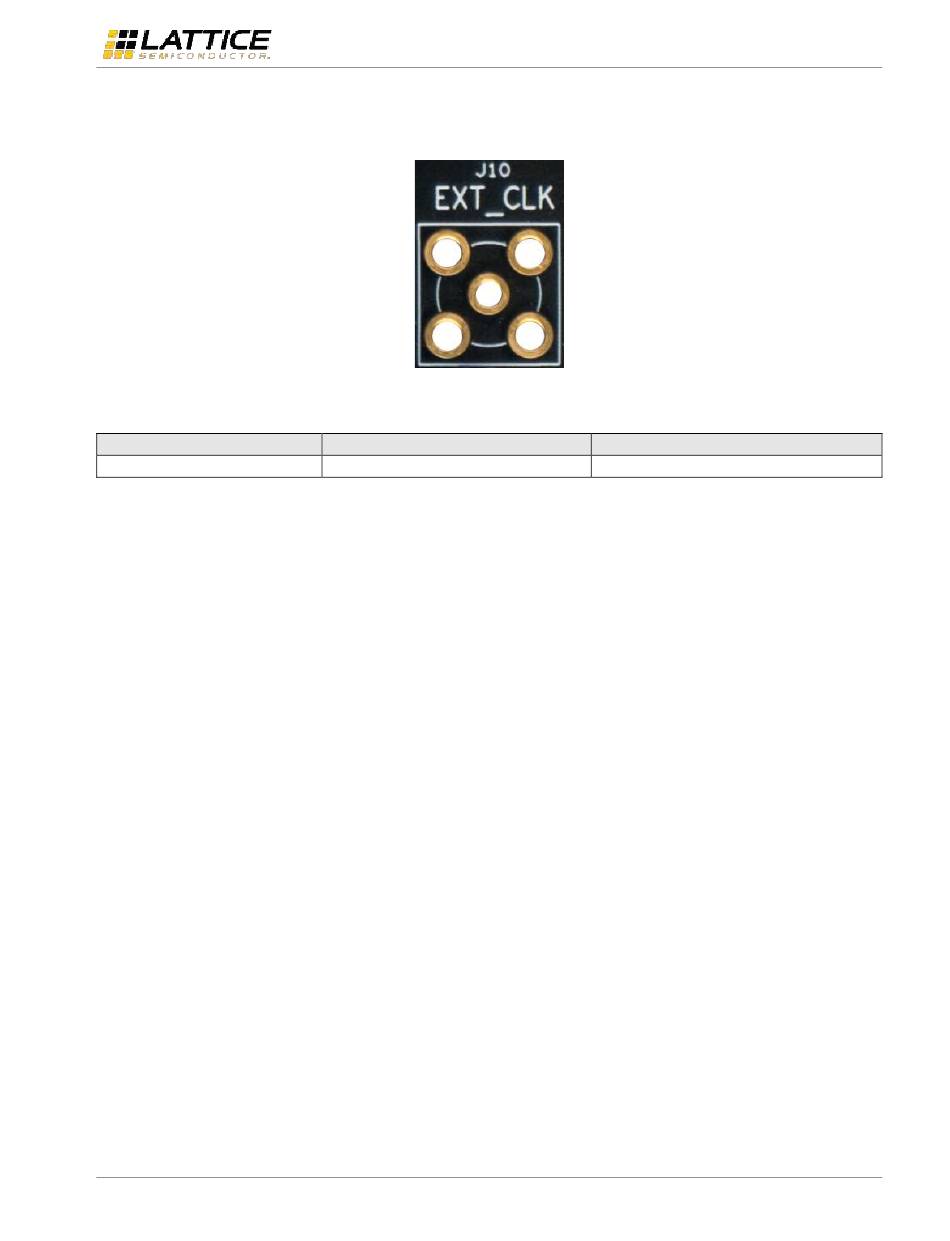

Figure 8.3. SMA Clock Input

Table 8.3. Single-end External SMA Clock

SMA Net Name LFMXO5-100T Ball Location
J10 EXT_CLK A17
