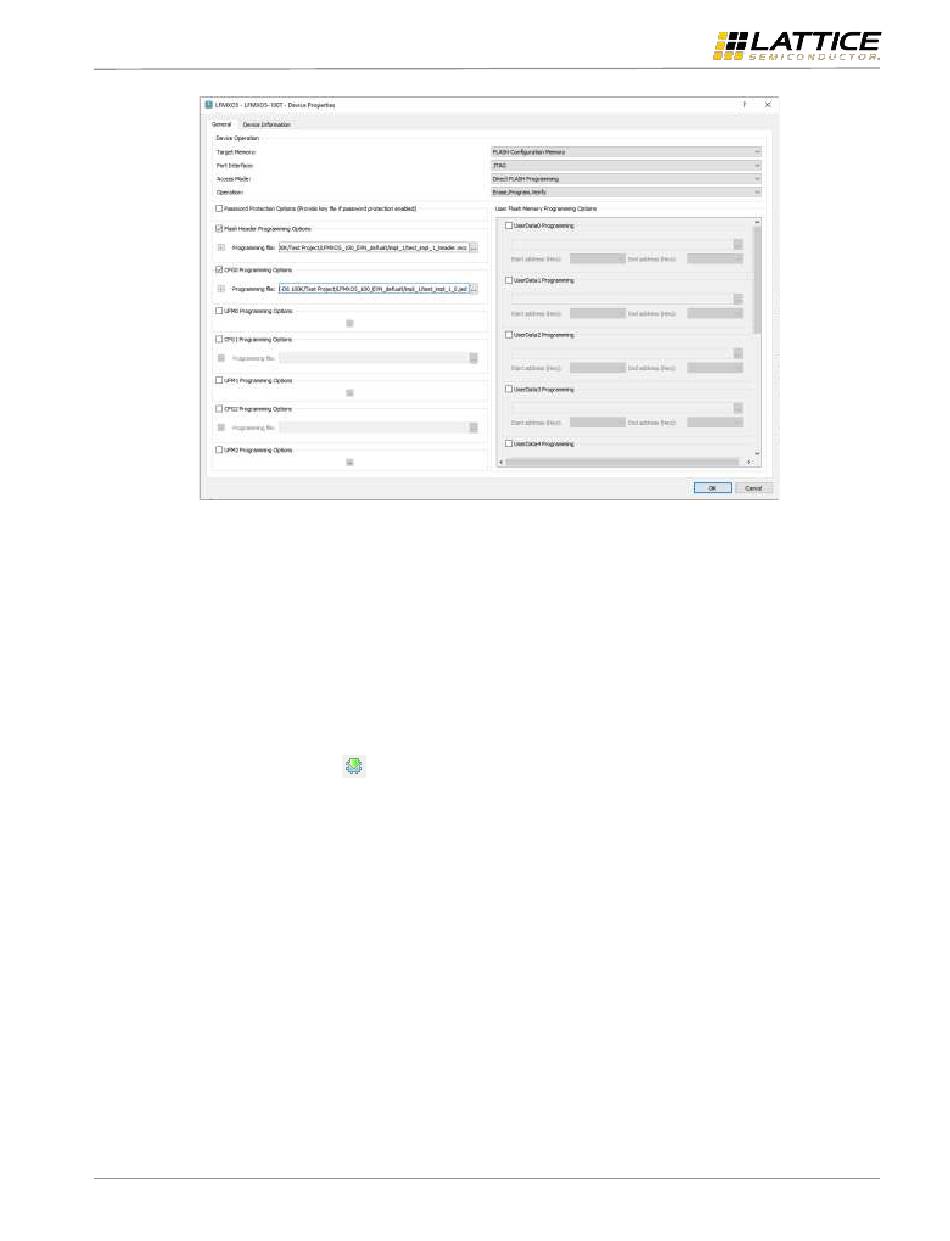

Figure 11.6. Radiant Programmer – Device Properties for FLASH Configuration Memory
7. Confirm the Device Operation options as follows:
•
Target Memory is FLASH Configuration Memory;
•
Port Interface is JTAG;
•
Access Mode is Direct FLASH Programming;
•
Operation is Erase, Program, Verify;
and select target User Flash Memory Programming Options according to
8. Check the Flash Header Programming Options and click ... to select the .mcs file.
9. Check the CFG0 Programming Options and click ... to select the .jed file.
10. Click OK to program the embedded Flash.
11. Click the Program Device button
© 2023 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
30
in Radiant Programmer as shown in
Figure 11.6.
Figure 11.7.
FPGA-EB-02058-1.0
