Figure 12.1. Circuit Design For Adc0; Figure 12.2. Circuit Design For Adc1; Figure 12.3. Trimmer Wiper Description - Lattice Semiconductor MachXO5T-NX-Development Board User Manual

Rotate the Trimmer clockwise to decrease the voltage, as shown in
rotate the POT counter-clockwise.
© 2023 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
FPGA-EB-02058-1.0

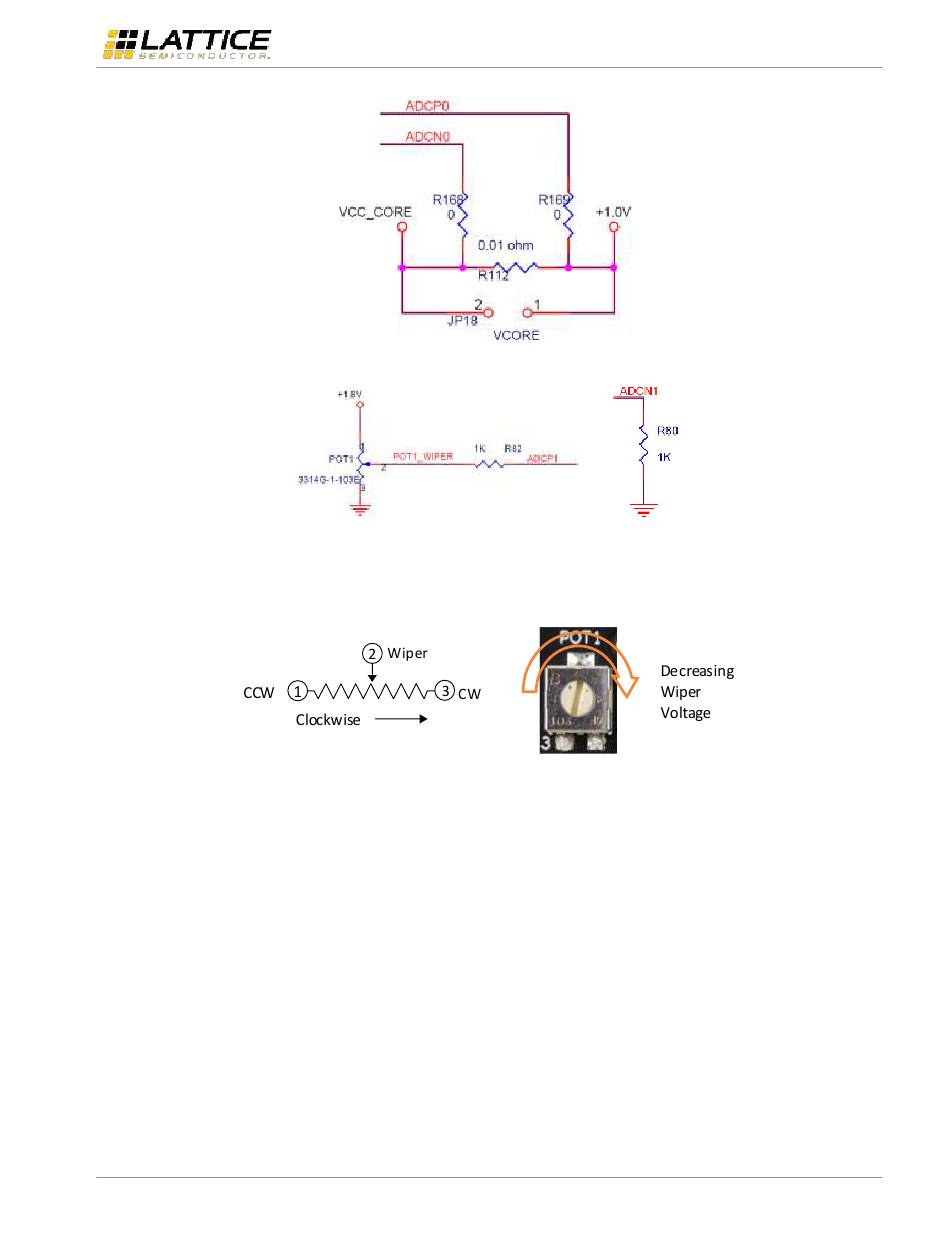

Figure 12.1. Circuit Design for ADC0

Figure 12.2. Circuit Design for ADC1

Figure 12.3. Trimmer Wiper Description

MachXO5T-NX-Development Board
Evaluation Board User Guide
Figure 12.3. To increase the voltage to ADCP1,
