Overview; Status Symbols - CTEK CHARGESTORM CONNECTED 2 User Manual

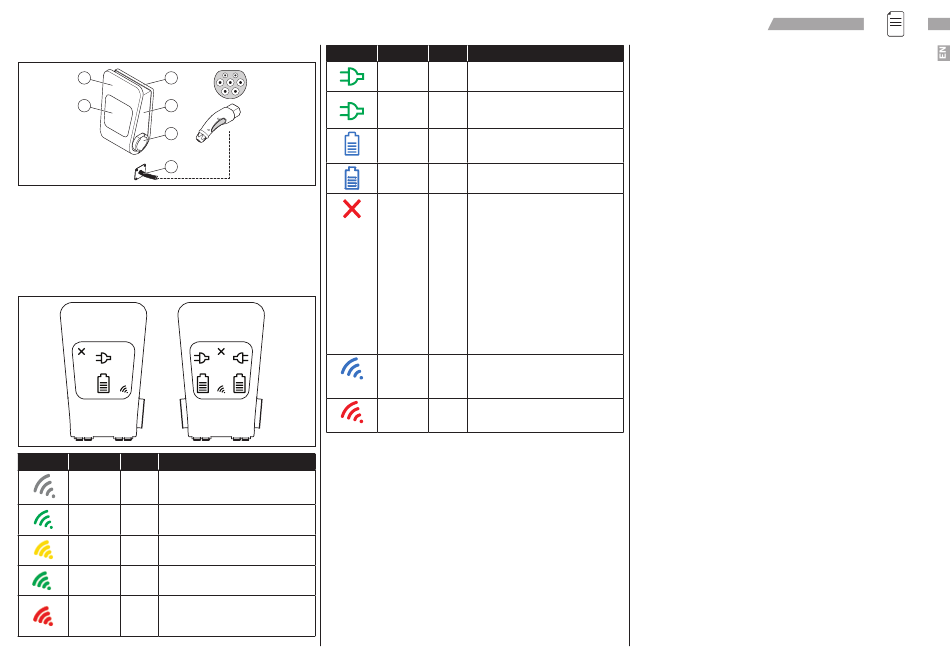

Overview

1 3
2 4
5
6
1. Front panel.
2. Display with charging status symbols.
3. Back cover.
Technical box.
4.
5. Electrical Vehicle outlet.
6. Electrical Vehicle outlet (fixed cable).

Status symbols

SYMBOL COLOR MODE EXPLANATION
Open RFID symbol not active.
Solid green RFID Waiting for RFID tag.
Flashing RFID Authentication in progress. Please wait!
Yellow
Flashing RFID RFID tag approved. Charging will now
Green start.
Flashing RFID RFID tag access denied (user not
red once authorized for charging).
CTEK AB
SYMBOL COLOR MODE EXPLANATION
Solid green RFID/ Available and ready for charging.
Open
Flashing RFID Waiting for cable connection or
green authentication.
Solid Blue RFID/ Vehicle connected but not charging (for
Open example, the vehicle is fully charged or
the charging session is paused).
Flashing RFID/ Charging in progress.
Blue Open
Solid Red RFID/ Alarm active. Attempt resetting RCD my
Open connecting a vehicle using a charging
cable, which will trigger the charging
station to carry out self-diagnostics.
If the fault persists, check whether
the MCB (fuse) has tripped. Open the
technical box and reset the MCB.
Outlet has a temporary fault. The fault
could be one of the following:
• Time limit for authentication reached.
• PP-signal cannot be read from cable
(Only applicable for type 2 outlet).
• Outlet motor could not lock cable.
Solid Blue - The charging station has connected to
cloud backend. Only displayed during
boot up. The flashing will take place for
5 seconds.
Solid Red RFID/ The charging station has failed to
Open connect to the cloud backend during
start up. Only displayed during boot up.
NOTE: If the charging station has no active symbols, the charging station
is inactive. This could be due to the charging station being configured to
be inactive, or the station restarting, or it could be undergoing planned
maintanence.
