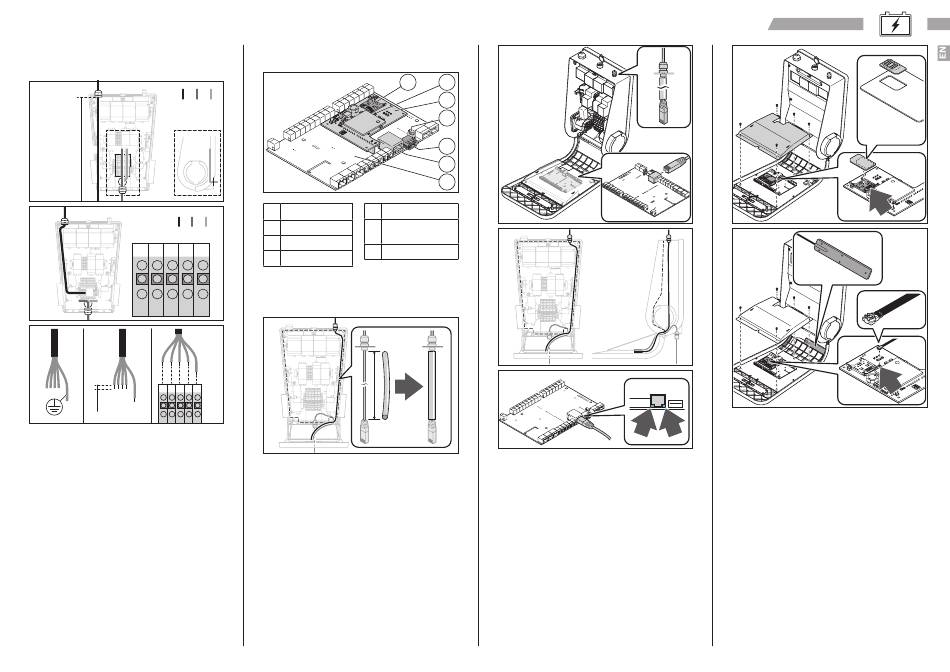

To install the power cable
1.
Pull the power cable through the cable gland.
A
B
Min
500 mm
A
B
C
C
A
B
C
L1 L2 L3 N PE
A
B
C
L1 L1 L2
L1 L2 L3 N PE
L2 L3
L3 N N PE
PE
L1 L2 L3 N PE
18-20 mm
2.
Make sure that the protected ground wire is
longer than the other wires so that it will be the
last wire to detach if it is pulled.
3.
Strip the wires approximately 18-20 mm at the
end of the power cable. The cross-sectional
area of the power cable must not exceed 16
mm
2
. Follow the instructions on the previous
page.
4.
Connect the supply wires to the terminal
blocks.
NOTE: The terminal blocks are of push-in type. Make
sure that the cables are properly connected.
NOTE: For regional differences of the grounding
system, such as IT-Nett, refer to the supply input
schematic in Appendix B.
NOTE: For single phase supplies, 3-way jumper
should be used across L1, L2 and L3. For two-phase
supplies, 2-way jumper should be used across
L1 and L2 terminals. For further details refer to
Appendix A.
CTEK AB
To install the network cable and the
4G-modem (optional)
C
A
Controller board
E
4G-modem
F
U.FL Antenna
B
RJ45
contact
USB
C
G
SIM-card slot
D
Mini-USB
If the charging station shall be connected to
NanoGrid
- Load balancing, or to the Charge
TM
Portal - The cloud based charging portal online, the
following must be done.
Enclose the network cable with the attached
insulation cable. The network cable in the
powerbox needs extra insulation for electrical
safety reasons.
If the charging station is behind a firewall and
will be connected to a backend system, open
DNS (port 53) and https/wss (port 443) in
the firewall. Open ftp to allow remote firmware
upgrades.
G
F
E
D
C
B
A
If Ethernet shall be connected, use a network
cable of type Cat5 or better. Connect the
network cable to the RJ45 connector on the
control board. The control board is located
on the front panel. When the network cable
is connected the activity LED in the RJ45
connector activates.
User & installation instructions
Mini SIM
15x25mm
If 4G shall be connected, install an activated
SIM card in the charging station. The PIN
must be disabled and the subscription with
recommendation of a minimum of 2 GB/
month depending on the OCPP protocol
communication from the operator. Make sure
that the antenna cable is attached in both
ends.
7
