1
Introduction
This document shows how to install and use the charge station CHARGESTORM® Connected.

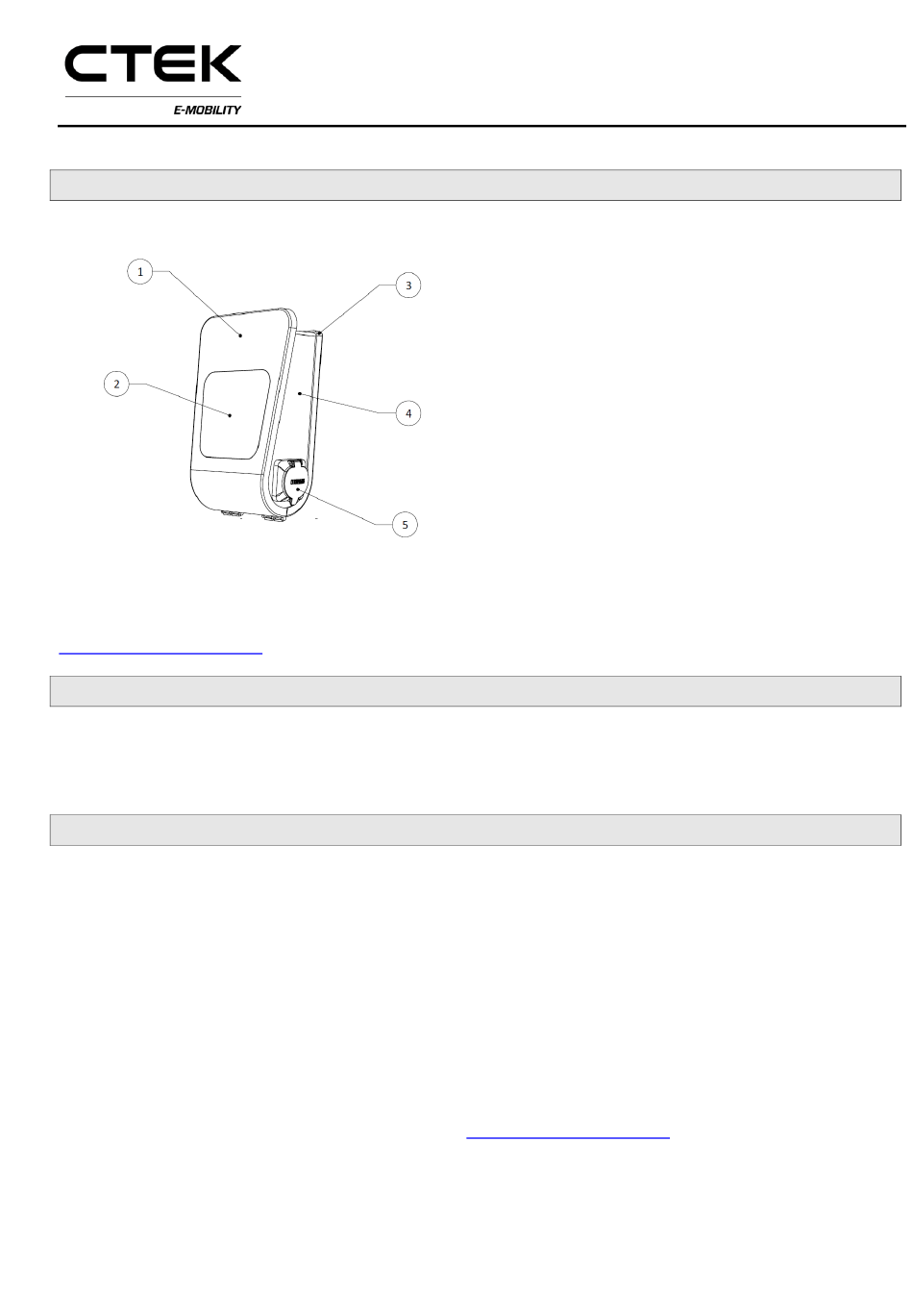

Figure 1 CHARGESTORM® Connected
The manual is valid for the CHARGESTORM® Connected family. Model information is found on the
top of the technical box. For a complete list of article numbers, please download datasheet at
www.ctekemobility.com.
2
Safety
✓ Only accredited electrician is allowed to perform the installation described in this document
✓ Read and follow the instructions in this document before installation and usage of the product
✓ Installation must fulfill local safety regulations
3
Delivery content
Part of delivery
✓ Charging station
✓ Installation and user manual
✓ Two keys for opening CHARGESTORM® Connected
✓ Cover for cable inlet (M32 and M12).
✓ Holder for charging gun (In case charging station is equipped with fixed cable)
To bring
✓ 4 pcs screws (M8) for wall mounting. Select screw type depending of wall.
✓ 4 pcs of rubber seal/gaskets to use with screw. – Note very important!
✓ RFID-tag (in case RFID shall be used) of type Mifare Classic/ IEC 14443 Type A. RFID-tags can
be ordered from CTEK E-Mobility web-shop
Option
✓ CHARGESTORM® Connected pole mount kit for pole diameter 60 mm. Article number 920-
00010.
Installation manual CHARGESTORM® Connected
1) Front panel
2) Display with charging status symbols
3) Back cover
4) Technical box
5) EV connector (outlet or cable)
(www.ctekemobility.com).
Advertisement
Table of Contents
Related Manuals for CTEK E-MOBILITY CHARGESTORM Connected
Summary of Contents for CTEK E-MOBILITY CHARGESTORM Connected
- Page 1 ✓ 4 pcs of rubber seal/gaskets to use with screw. – Note very important! ✓ RFID-tag (in case RFID shall be used) of type Mifare Classic/ IEC 14443 Type A. RFID-tags can be ordered from CTEK E-Mobility web-shop (www.ctekemobility.com). Option ✓...
- Page 2 Installation manual CHARGESTORM® Connected page 2 ✓ CHARGESTORM® Connected pole mount kit for two CHARGESTORM® Connected boxes, enabling up to four EV connectors from one pole. Article number 922-00018. Precondition 4.1 Tools Before the installation make sure that following tools are available: ✓...
- Page 3 Installation manual CHARGESTORM® Connected page 3 ✓ Avoid installing CHARGESTORM® Connected in direct light sunlight. Symbol visibility is limited and heat in the unit is increasing. CHARGESTORM® Connected has a temperature sensor in the unit that adjust charging current in case of high temperature. ✓...
-
Page 4: Installation
Installation manual CHARGESTORM® Connected page 4 Installation Step 1) Unpack CHARGESTORM® Connected – Unpack CHARGESTORM® Connected and all parts from the cardboard box. Step 2) Drill holes in the wall – Decide mounting position on the wall. Drill four holes according to drawing, see Figure 4. Step 3) Decide input location for power and network –... - Page 5 Installation manual CHARGESTORM® Connected page 5 40 mm length is recommended. Place CHARGESTORM® Connected on selected wall position and fastened the unit with the four screws. Control that CHARGESTORM® Connected is firmly mounted on the wall. Figure 6 Open front cover with the key and fasten the unit on the wall Step 5) Connect incoming power -Pull the power cable through the cable gland about 450 mm.
- Page 6 Installation manual CHARGESTORM® Connected page 6 Cables inside CHARGESTORM® Connected for the supply wires from top to terminal blocks shall follow the black line while supply wires from the bottom shall follow the grey line in Figure 7. Figure 8 Terminal blocks marking Figure 7 Cable schematics Step 5.1) Only for IT-Nett: Install the CHARGESTORM®...
- Page 7 OSX is the driver part of the operating system. For detailed description of the local web interface see ref. 1) CTEK E-Mobility recommends that the installation technician documents the result of the provisioning tests in a dedicated protocol. Perform the following step to complete CHARGESTORM® Connected configuration.
-
Page 8: Network Settings
Installation manual CHARGESTORM® Connected page 8 192.168.7.2 to reach the web interface. The log in page is shown after entering the address. To log in enter: Username: ccu Password: ccu Figure 10 Log in page 6.2 Network settings After successful log in, is the network settings found under Configuration → interfaces When network configuration is ready check on the status page that internet access is established. -
Page 9: Current Limit
Installation manual CHARGESTORM® Connected page 9 PPP modem Follow the step by step instruction below to configure PPP over 3G • Under “Configuration→Interface→General”, select WAN=”Wireless” • Under “Configuration→Interface→PPP modem”, enter “APN” applicable for the selected 3G operator. Remaining fields can usually be left empty. •... - Page 10 CHARGESTORM® Connected to the portal. The information shall be provided by the portal operator. In case the CTEK E-Mobility portal “Charge Portal” is used is the URL to the portal on the following format.
-
Page 11: Product Information
Installation manual CHARGESTORM® Connected page 11 6.5 RFID In order to activate user authentication can RFID be used. RFID-configuration can either take place from the portal (from a browser) or be configured on local web interface. • To activate RFID, navigate to ”Configuration→Outlet→Authentication” and select ”RFID” for all outlets. -
Page 12: Warranty
✓ Control network access to back end (in case CHARGESTORM® Connected is connected) Recycling CHARGESTORM® Connected contains electronics and shall be recycled. You can send back CHARGESTORM® Connected to CTEK E-Mobility Center and we will take care of the recycling. Alternatively, follow your local guide for recycling of electronics. Warranty... -
Page 13: Electrical Schematics
Installation manual CHARGESTORM® Connected page 13 Electrical schematics 11.1 3-phase Below is an example of a schematics for CHARGESTORM® Connected (3ph dual outlet). - Page 14 Installation manual CHARGESTORM® Connected page 14 11.1 IT-nett Below is an example of a schematics for CHARGESTORM® Connected (1ph dual outlet, IT-nett).
- Page 15 Pd_IM_0012 12.2 Copyright This manual is delivered “as is” and contain content that can change without prior notice. CTEK E- Mobility does not guarantee that everything is correct in the manual. CTEK E-Mobility is not responsible for faults or incidents or damages that can be traced to the usage of this manual.
