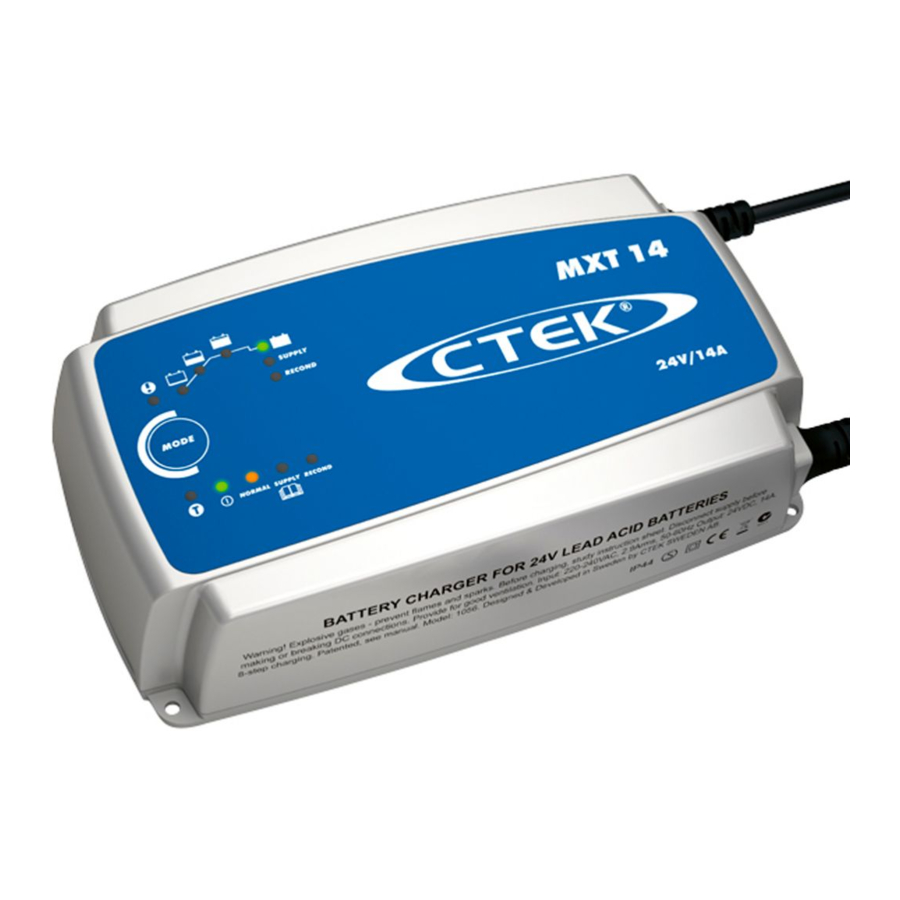

CTEK MXT 14 - Battery Charger Manual

OVERVIEW

CHARGING

Connect the charger to the battery.
Connect the charger to the wall socket. The power lamp will indicate that the mains cable is connected to the wall socket. The error lamp will indicate if the battery clamps are incorrectly connected. The reverse polarity protection will ensure that the battery or charger will not be damaged.
Press the MODE-button to select charging program.
Follow the indication lamps through the charging process. The battery is ready to start the engine when is lit.
The battery is fully charged when is lit.
Stop charging at any time by disconnecting the mains cable from the wall socket.

CHARGING PROGRAMS

Settings are made by pressing the MODE-button. After about two seconds the charger activates the selected program. The selected program will be restarted next time the charger is connected.

The table explains the different charging Programs:

Program	Battery Size (ah)	Explanation	Temp range
*NORMAL*	28–500Ah	Normal battery program 28.8V/14A. Use for WET batteries, Ca/Ca, MF and for most GEL batteries	+5°c–+50°c (41ºF–122ºF)
*RECOND*	28–500Ah	Recond program 31.6V/1.5A Use to return energy to the empty WET and Ca/Ca batteries. Recond your battery once per year and after deep dischare to maximise lifetime and capacity. The Recond program adds the Recond step to the normal battery program. Frequent use of the Recond program may cause water loss in the batteries and reduce service life of electronics. Contact your vehicle and battery supplier for advice.	-20°c–+50°c (-4ºF–122ºF)
*SUPPLY*	28–500Ah	Supply program 27.2V/14A Use as 24V power supply or use for float maintenance charging when 100% capacity of the battery is required. Supply program activates Float step without time or voltage limitation.	-20°c–+50°c (-4ºF–122ºF)

The spark protection on the battery charger is disabled during SUPPLY program.

ERROR LAMP

If the error lamp is lit, check the following:

Is the chargers positive lead connected to the batterys positive pole?
Is the charger connected to a 24V battery?
Has charging been interrupted in or ?
Restart the charger by pressing the MODE-button. If charging is still being interrupted, the battery...
...is seriosly sulphated and may need to be replaced.
...can not accept charge and may need to be replaced.
...can not keep charge and may need to be replaced.

TEMPERATURE SENSOR

The MXT 14 is equipped with an external temperature sensor. Activated temperature sensor will be indicated by a lit temperature sensor indicator lamp. The temperature sensor will adjust the voltage to the ambient temperature. Place the temperature sensor in the positive clamp or as the close to the battery as possible.

POWER LAMP

If the power lamp is lit with a:

STEADY LIGHT
The mains cable is connected to the wall socket.
FLASHING LIGHT:
The charger has entered the energy save mode. This happens if the charger isn´t connected to the battery in 2 minutes.

READY TO USE

The table shows the estimated time for empty battery to 80% charge

BATTERY SIZE (Ah)	TIME TO 80% CHARGED
30Ah	2h
100Ah	6h
200Ah	12h
300Ah	17h

CHARGING PROGRAM

STEP 1 DESULPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead plates of the battery restoring the battery capacity.
STEP 2 SOFT START
Tests if the battery can accept charge. This step prevents that charging proceeds with a defect battery.
STEP 3 BULK
Charging with maximum current until approximately 80% battery capacity.
STEP 4 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
STEP 5 ANALYSE
Tests if the battery can hold charge. Batteries that can not hold charge may need to be replaced.
STEP 6 RECOND
Choose the Recond program to add the Recond step to the charging process. During the Recond step voltage increases to create controlled gasing in the battery. Gasing mixes the battery acid and gives back energy to the battery.
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant voltage charge.
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.

CONNECT THE CHARGER TO A BATTERY

INFO
If the battery clamps are incorrectly connected, the reverse polarity protection will ensure that the battery and charger are not damaged.

For batteries mounted inside a vehicle

Connect the red clamp to the battery's positive pole.
Connect the black clamp to the vehicle chassis remote from the fuel pipe and the battery.
Connect the charger to the wall socket
Disconnect the charger from the wall socket before disconnecting the battery
Disconnect the black clamp before the red clamp.

Some vehicles may have positively earthed batteries.

Connect the black clamp to the battery's negative pole.
Connect the red clamp to the vehicle chassis remote from the fuel pipe and the battery.
Connect the charger to the wall socket
Disconnect the charger from the wall socket before disconnecting the battery
Disconnect the red clamp before the black clamp.

TECHNICAL SPECIFICATIONS

Charger model	MXT 14
Model number	1056
Rated Voltage AC	220–240VAC, 50–60Hz
Charging voltage	NORMAL 28.8V, RECOND 31.6V, SUPPLY 27.2V
Start Voltage	2.0V
Charging current	14A max
Current, mains	2.9A rms (at full charging current)
Back current drain*	<1Ah/month
Ripple**	<4%
Ambient temperature	-20°C to +50°C, output power is reduced automatically at high temperatures
Charger type	8-step, fully automatic charging cycle
Battery types	All types of 24V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity	28–300Ah up to 500Ah for maintenance
Dimensions	235 x 130 x 65mm (L x W x H)
Insulation class	IP44
Weight	1.9kg

*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers has a very low back current.

**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.

SAFETY

The charger is designed for charging 24V lead-acid batteries. Do not use the charger for any other purpose.
Check the charger cables prior to use. Ensure that no cracks have occurred in the cables or in the bend protection. A charger with damaged cables must not be used. A damage cable must be replaced by a CTEK representative.
Never charge a damaged battery.
Never charge a frozen battery.
Never place the charger on top of the battery when charging.
Always provide for proper ventilation during charging.
Avoid covering the charger.
A battery being charged could emit explosive gasses. Prevent sparks close to the battery. When batteries are reaching the end of their lifecycle internal sparks may occur.
All batteries fail sooner or later. A battery that fails during charging is normally taken care of by the chargers advanced control, but some rare errors in the battery could still exist. Don't leave any battery during charging unattended for a longer period of time.
Ensure that the cabling does not jam or comes into contact with hot surfaces or sharp edges.
Battery acid is corrosive. Rinse immediately with water if acid comes into contact with skin or eyes, seek immediate medical advice.
Always check that the charger has switched to before leaving the charger unattended and connected for long periods. If the charger has not switched to within 40 hours, this is an indication of an error. Manually disconnect the charger.
Batteries consume water during use and charging. For batteries where water can be added, the water level should be checked regularly. If the water level is low add distilled water.
This appliance is not designed for use by young children or people who cannot read or understand the manual unless they are under the supervision of a responsible person to ensure that they can use the battery charger safely. Store and use the battery charger out of the reach of children, and ensure that children cannot play with the charger.
Connection to the mains supply must be in accordance with the national regulations for electrical installations.
