Sytronix SvP 7030 IMC
90 / 186
Connecting the Sytronix system SvP 7030 electrically
7.5.9
Overall connection diagram XCS*-W02xx

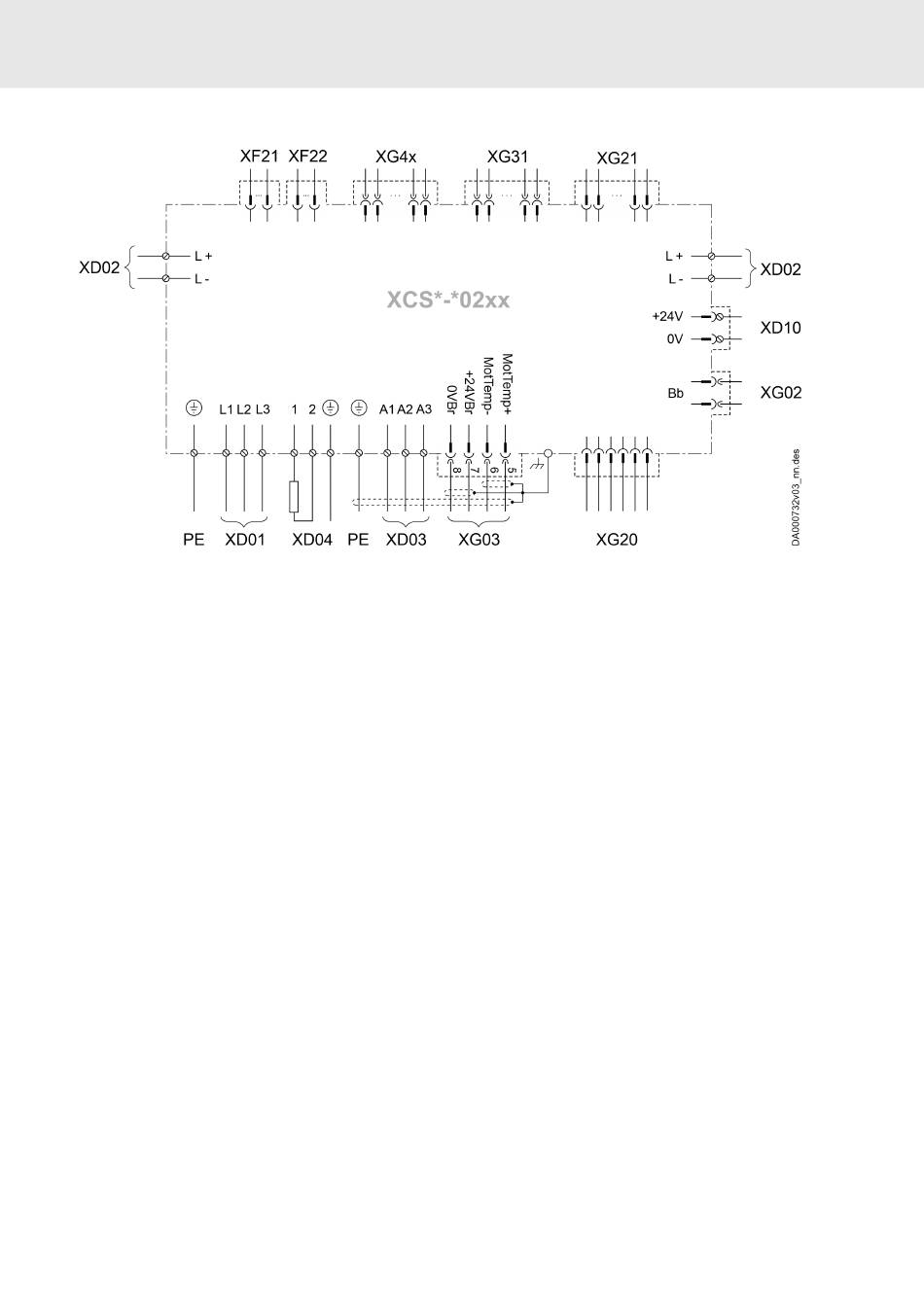

Fig. 44: Overall connection diagram XCS*-W02xx
XD01
Mains
XD02
DC bus
XD03
Motor
XD04
External braking resistor
XD10
Control voltage
XF21, XF22 Communication
XG02
Ready-for-operation relay contact
Bosch Rexroth AG
XG03
Motor temperature monitoring and
motor holding brake
XG20
Digital encoder
XG21
Multi-encoder (optional)
XG31
Digital inputs/outputs; analog input
XG4x
Safety technology
RE 62312-B, 03.2022
