Sytronix SvP 7030 IMC
45 / 186
Mechanical installation of the motor-pump unit

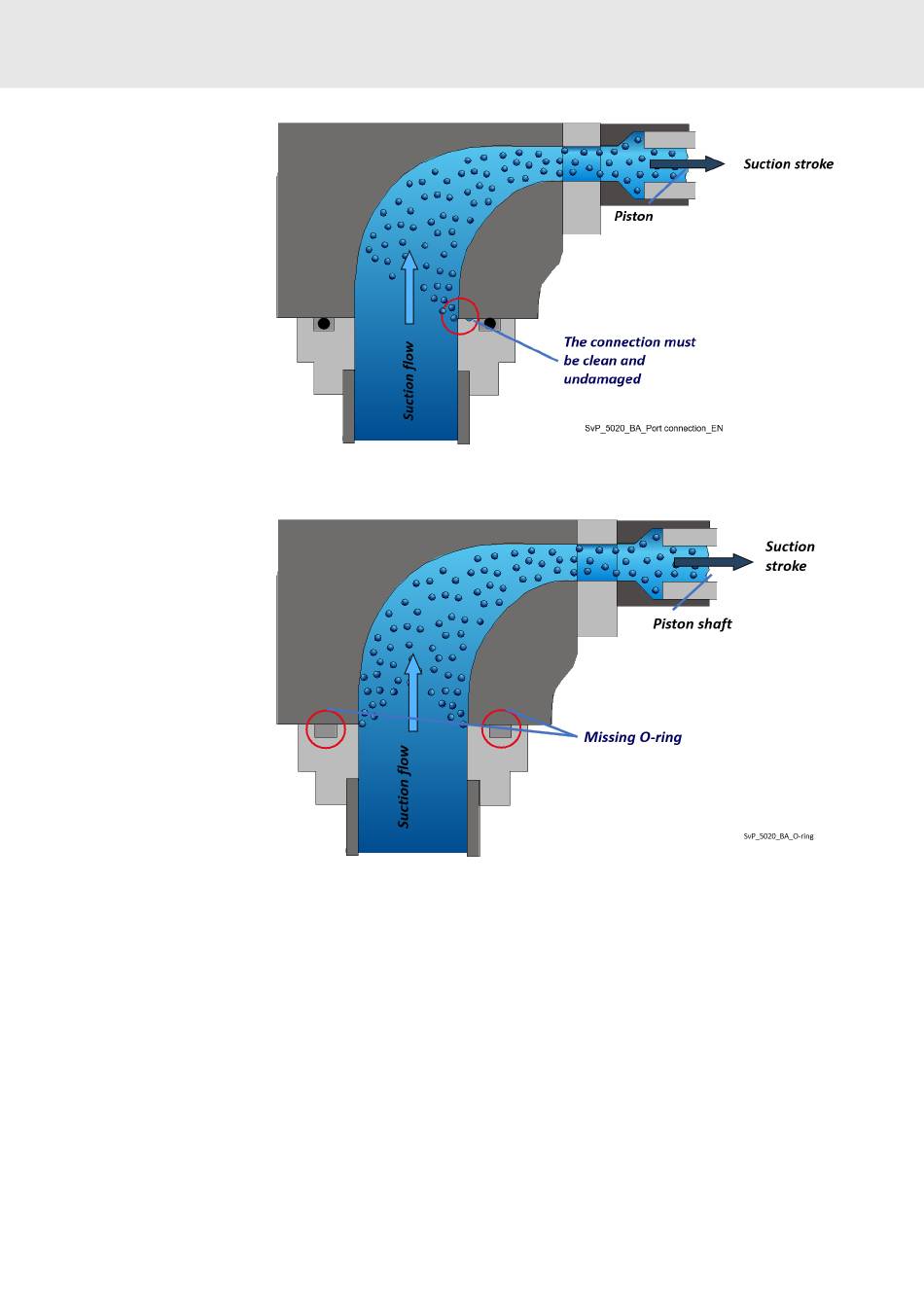

Fig. 12: Connection
Missing O-rings can lead to air ingress.
Fig. 13: Assembly without O-rings
RE 62312-B, 03.2022
Bosch Rexroth AG
