Connecting the Sytronix system SvP 7030 electrically
XCS*-W02xx
Connect ring cable lugs M8 of equipment grounding conductors to the device
housing (
Tightening torque: 8 Nm

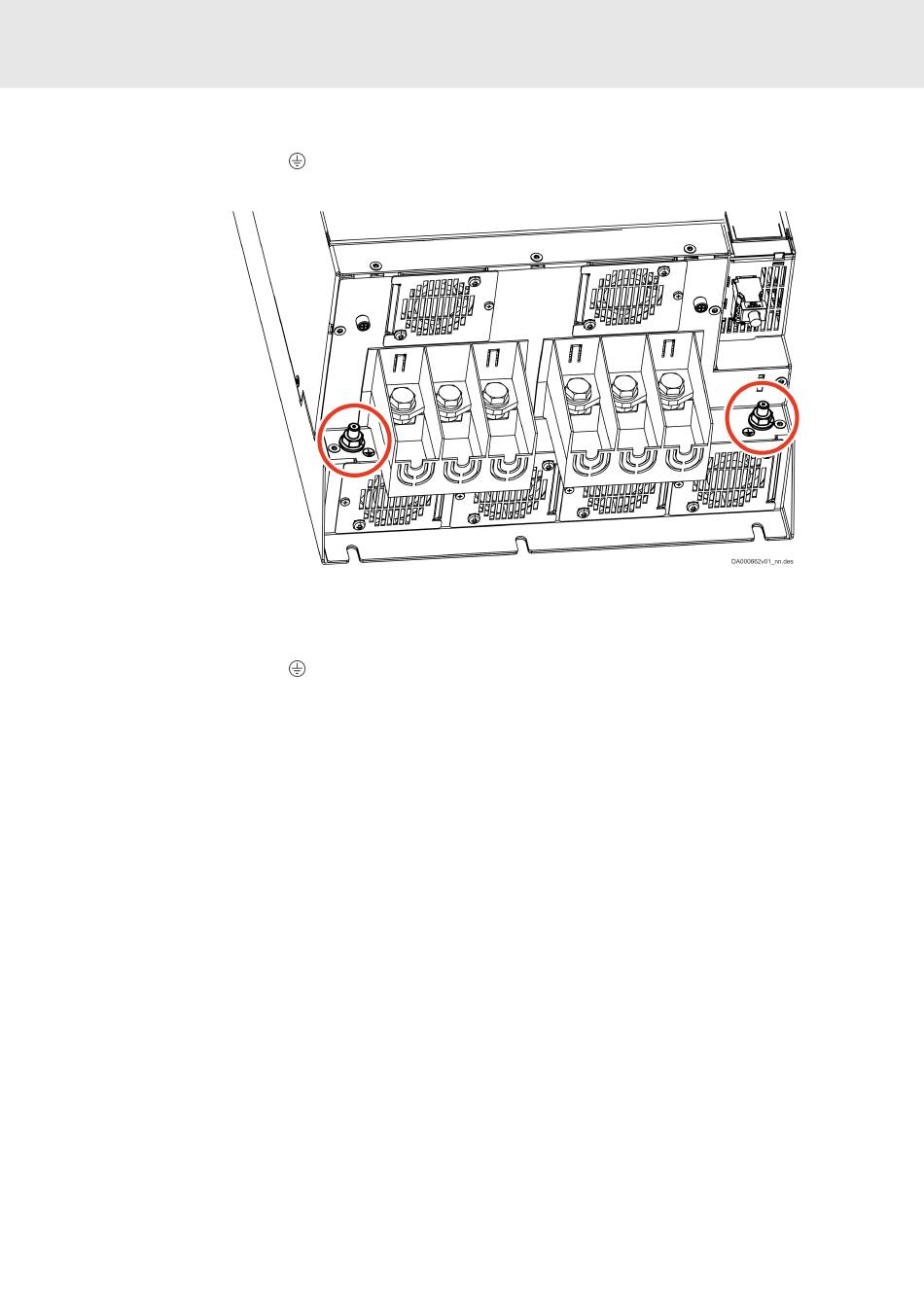

Fig. 48: Connection point of equipment grounding conductor (XCS*-W02xx)
XCS*-W0150/180
Connect ring cable lugs M6 of equipment grounding conductors to the device
housing (
Tightening torque: 4 ... 5 Nm
Bosch Rexroth AG
symbol).
symbol).
RE 62312-B, 03.2022
