Sytronix SvP 7030 IMC
136 / 186
Connecting the Sytronix system SvP 7030 electrically
Connection
Sercos:
● Input: arbitrary
● Output: arbitrary
EtherCAT:
● Input: XF21 P1
● Output: XF22 P2

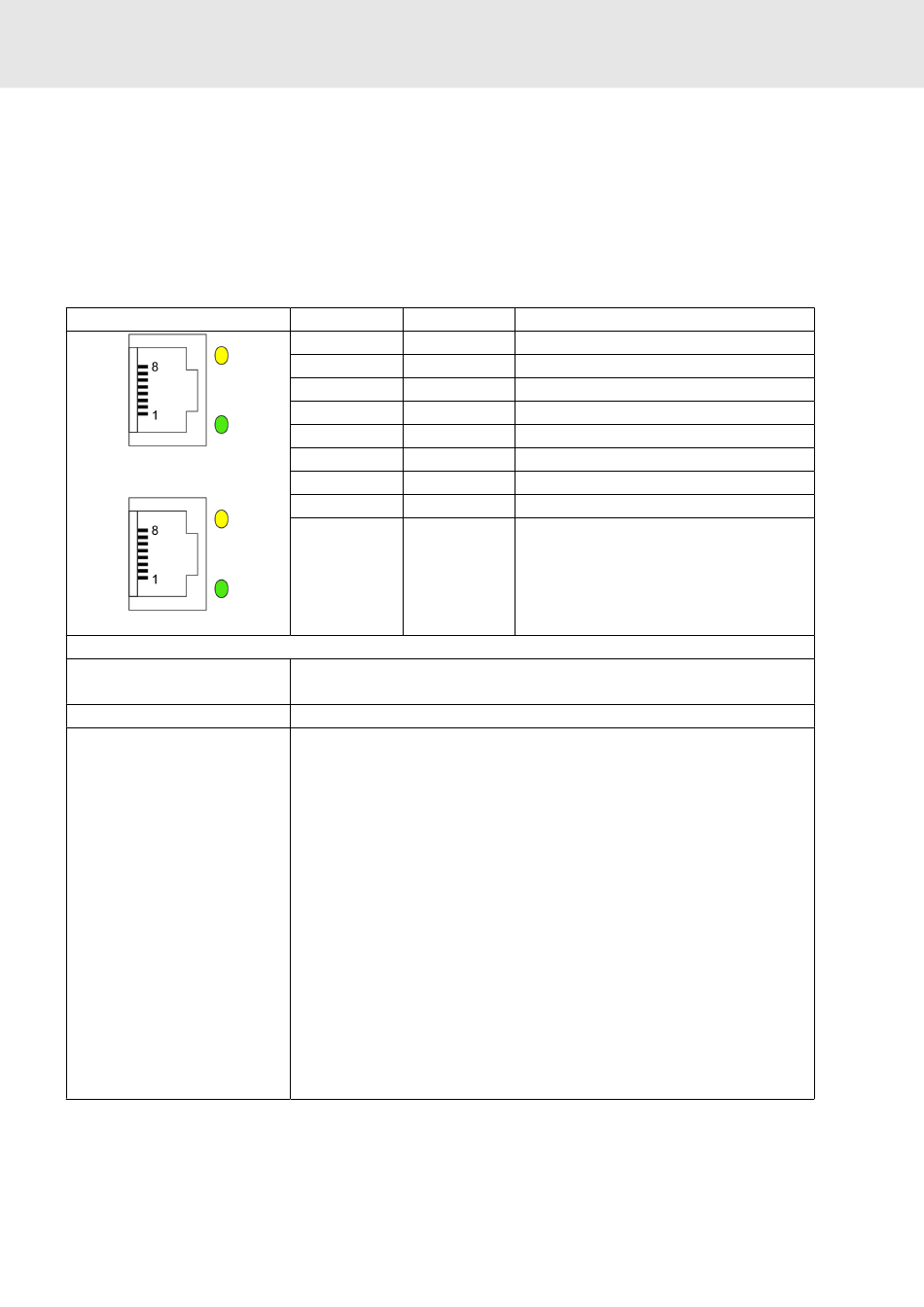

Table 107: Function, pinout, properties
View
XF22 P2
XF21 P1
Properties
Standard
Compatibility
Recommended cable type
Bosch Rexroth AG
Connection Signal name Function
8 n. c.
7 n. c.
6 RD-
5 n. c.
4 n. c.
3 RD+
2 TD-
1 TD+
Housing
● Ethernet
● Type: RJ-45, 8-pin
100Base-TX according to IEEE 802.3u
● According to CAT5e; shield type ITP (Industrial Twisted Pair)
● Ready-made cables available for order:
– RKB0021
Long cables (100 m at maximum) to connect the drive system
to the higher-level control unit or remote communication
nodes.
Minimum bending radius:
48.75 mm with flexible routing
32.50 mm with permanent installation
Order code for a cable with a length of 30 m: RKB0021/030,0
– RKB0013
Short cables to connect adjacent devices in the control cab-
inet.
Length:
0.19 m; 0.25 m; 0.35 m; 0.55 m; 1 m; 1.25 m; 2 m; 3 m; 5 m; 7
m
Order code for a cable with a length of 0.55 m: RKB0013/00,55
Minimum bending radius: 30.75 mm
-
-
Receive, Differential Input -
-
-
Receive, Differential Input +
Transmit, Differential Output -
Transmit, Differential Output +
Shield connection
